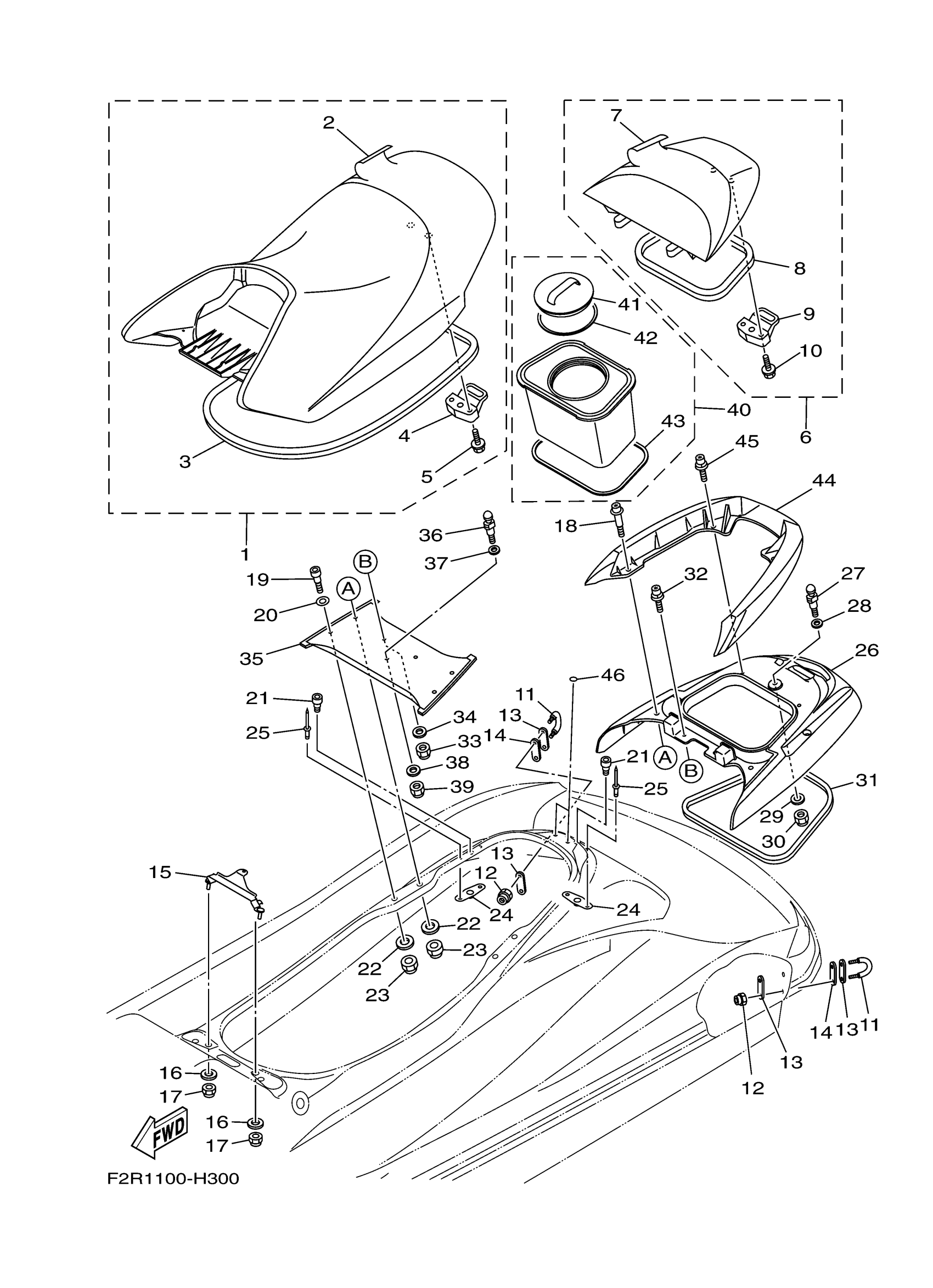

Yamaha GX1800HB (WAVERUNNER FZR) F2R1 2009 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F2C-U371A-02-00

Unavailable

2

COVER, SEAT 1

F2C-U371B-01-00

$197.00

3

. PACKING

F1W-U2664-01-00

$32.82

4

SEAT LOCK ASSY

F1B-U3850-02-00

$10.04

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F2R-U372A-02-00

$280.58

7

COVER, SEAT

F2R-U372B-01-00

Unavailable

8

PACKING 5

F2C-U266D-01-00

$16.40

9

. SEAT LOCK ASSY

F2C-U3850-00-00

$24.39

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

STERN EYE (BLACK)

F1K-61628-00-00

$38.79

12

NUT, NYLON (6J8)

95780-08300-00

$11.48

13

PLATE A

GP7-U4953-10-00

$3.65

14

PACKING

F1B-U1653-03-00

$2.00

15

STAY, SEAT 1

F2C-U378C-00-00

$56.70

16

WASHER, PLATE

90201-099U3-00

$2.30

17

NUT, NYLON (6J8)

95780-08300-00

$11.48

18

BOLT

F2C-U2624-01-00

$3.65

19

BOLT

F2C-U2624-20-00

Unavailable

20

WASHER

9299R-10200-00

$1.72

21

BOLT

F2C-U2624-10-00

$3.65

22

WASHER

9299R-08200-00

Unavailable

23

NUT, NYLON (6J8)

95780-08300-00

$11.48

24

BRACKET

F2C-U826C-00-00

$4.01

25

RIVET (EU0)

90267-48938-00

$4.72

26

BEAM, DECK ASSY

F2C-U890L-02-00

$313.42

27

PIN

GH1-U3774-00-00

$20.81

28

WASHER, PLATE

90201-109U6-00

$3.43

29

WASHER

9299R-10200-00

$1.72

30

NUT, NYLON

9572R-10300-00

$3.52

31

. PACKING 1

F2C-U375E-00-00

$18.64

32

BOLT

F2C-U2624-30-00

$3.65

33

NUT, NYLON (6J8)

95780-08300-00

$11.48

34

WASHER

9299R-08200-00

Unavailable

35

BEAM, DECK 1

F2C-U8952-10-00

Unavailable

36

PIN

GH1-U3774-00-00

$20.81

37

WASHER, PLATE

90201-109U6-00

$3.43

38

WASHER

9299R-10200-00

$1.72

39

NUT, NYLON

9572R-10300-00

$3.52

40

CASE,ASSY 1

F2C-U591A-03-00

$46.25

41

. CAP,CASE

F2C-U591C-00-00

$5.96

42

. PACKING,CASE

F2C-U591D-01-00

$1.72

43

. PACKING,6

F2C-U266E-00-00

$15.07

44

GRIP, HAND

F2R-U271B-00-00

Unavailable

45

BOLT

F2C-U2624-30-00

$3.65

46

. SEAL 1

F2R-U884B-00-00

$0.82
