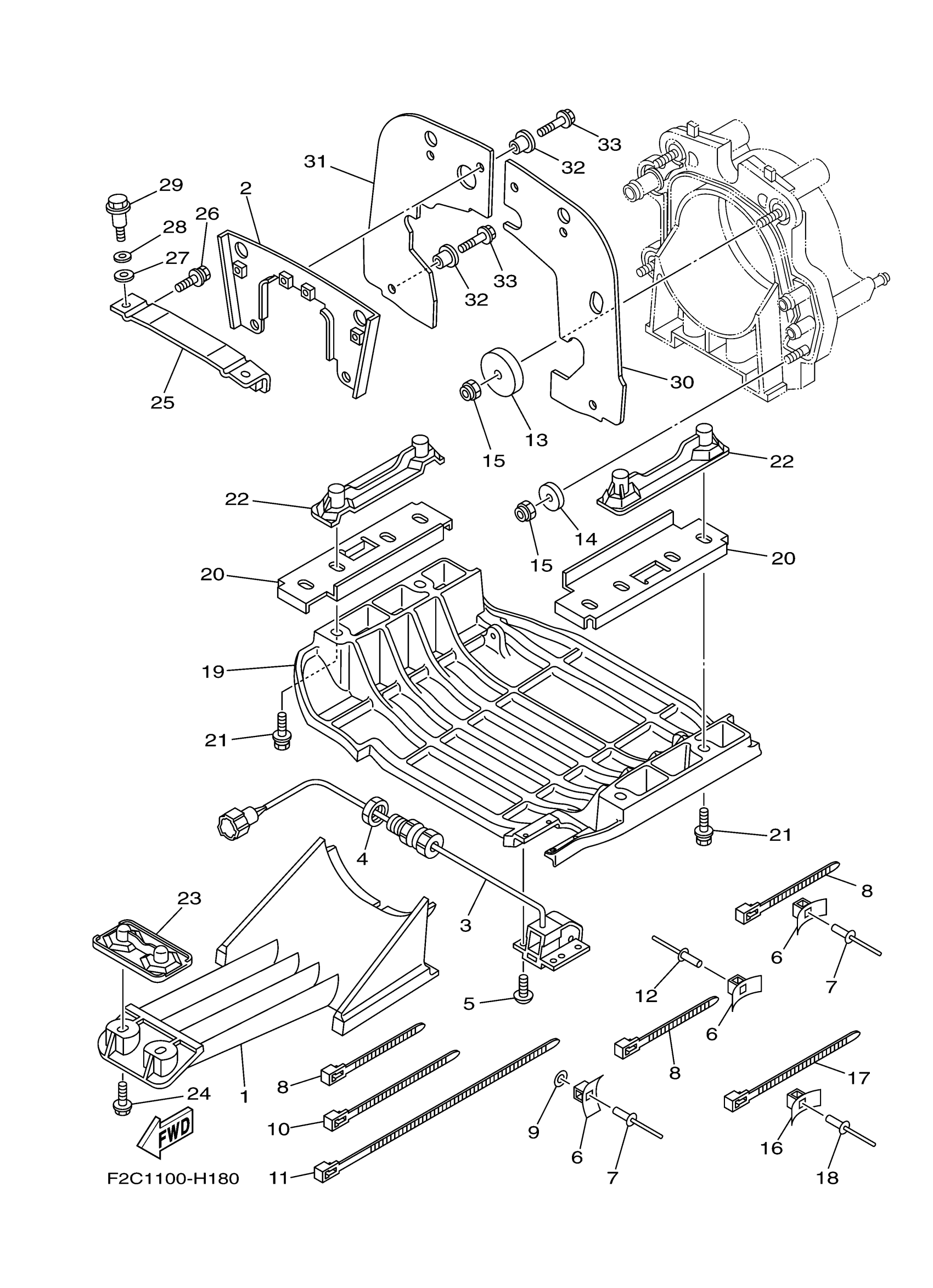

Yamaha GX1800HB (WAVERUNNER FZR) F2R1 2009 JET UNIT 4 Diagram

#

Description
Price

1

SCREEN, INTAKE

6AN-R1333-02-00

$105.96

2

BRACKET

6ET-R1959-00-00

$19.39

3

SENSOR SPEED

F1S-U8K31-03-00

$147.92

4

. NUT, DRAIN 1

EU0-62241-30-00

$10.43

5

SCREW, ROUND HEAD

90150-05807-00

$0.86

6

CLAMP COMP (EU0)

90600-91736-00

$6.22

7

RIVET, BLIND

90267-48802-00

$1.98

8

CLAMP

90464-32801-00

$1.29

9

WASHER

9299R-05200-00

$4.60

10

CLAMP

90464-32801-00

$1.29

11

CLAMP

90464-99801-00

$2.69

12

RIVET, BLIND

90267-489U6-00

Unavailable

13

WASHER

F1S-U725E-01-00

$8.61

14

WASHER, PLATE

90201-10801-00

$3.65

15

NUT, NYLON

9572R-10300-00

$3.52

16

CLAMP COMP (EU0)

90600-91736-00

$6.22

17

CLAMP

90464-32801-00

$1.29

18

RIVET, BLIND

90267-48802-00

$1.98

19

PLATE 2

F2C-U273B-02-00

Unavailable

20

SPACER

F2C-U143G-00-00

$44.76

21

BOLT, WITH WASHER

90119-08829-00

$4.09

22

BRACKET 2

F1G-U8572-02-00

$20.09

23

BRACKET, 3

F2C-U8577-02-00

Unavailable

24

BOLT, WITH WASHER

90119-10809-00

Unavailable

25

BRACKET

F2C-U7557-01-00

$29.84

26

BOLT, WITH WASHER

90119-08800-00

$4.31

27

GASKET

90430-12002-00

$1.72

28

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

29

BOLT

90109-08043-00

$4.03

30

PLATE, RUBBER 1

F2C-U757E-01-00

Unavailable

31

PLATE, RUBBER 2

F2C-U757F-01-00

Unavailable

32

COLLAR

90387-06080-00

$6.88

33

BOLT, WITH WASHER

90119-06827-00

Unavailable
