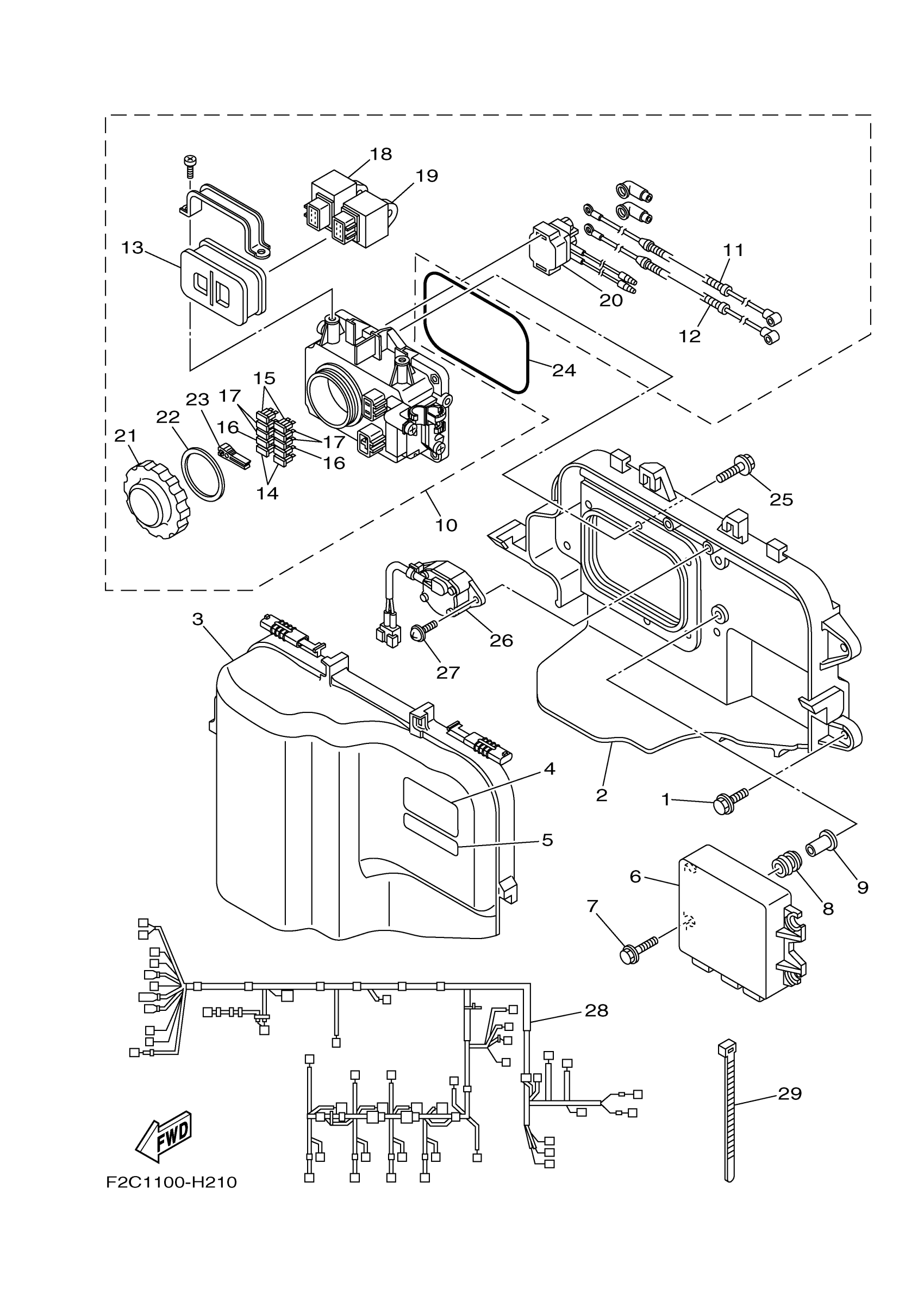

Yamaha GX1800HB (WAVERUNNER FZR) F2R1 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

$3.16

2

PLATE

6BH-81845-01-00

Unavailable

3

COVER

6S5-81942-11-00

Unavailable

4

MARK 3

6B6-83623-00-00

$5.91

5

LABEL, CAUTION 7

60E-83627-00-00

$4.55

6

ENGINE CONTROL UNIT ASSY

6AN-8591A-01-00

$1,540.89

7

BOLT, WITH WASHER

90119-06311-00

$1.58

8

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

9

. COLLAR

90387-06119-00

$4.37

10

FUSE BOX ASSY

6BH-82170-00-00

$666.65

11

. WIRE, PLUS LEAD

6S5-82115-00-00

$78.17

12

. WIRE, LEAD

6S5-82117-00-00

$103.02

13

. DAMPER

6D3-82157-00-00

$33.99

14

FUSE

5JJ-82151-20-00

$5.98

15

FUSE

5JJ-82151-60-00

$5.98

16

. FUSE (3A)

67F-82151-30-00

$4.69

17

. FUSE (10A)

67F-82151-40-00

$6.07

18

RELAY ASSY

60E-81950-00-00

$137.93

19

. RELAY ASSY

68V-81950-00-00

$111.74

20

. STARTER RELAY ASSY

6B6-81940-00-00

$97.06

21

. CAP

66V-8132W-00-00

$11.85

22

. GASKET

66V-81844-00-00

Unavailable

23

. PULLER, FUSE

67F-2812A-00-00

$4.11

24

O-RING

6BH-81847-00-00

$7.69

25

BOLT, WITH WASHER

90119-06091-00

$2.27

26

SWITCH ASSY

6S5-8259E-00-00

$165.14

27

SCREW, TAPPING

97780-60520-00

$4.09

28

WIRE HARNESS ASSY 1

6AN-8259L-01-00

Unavailable

29

CLAMP

90465-14M66-00

Unavailable
