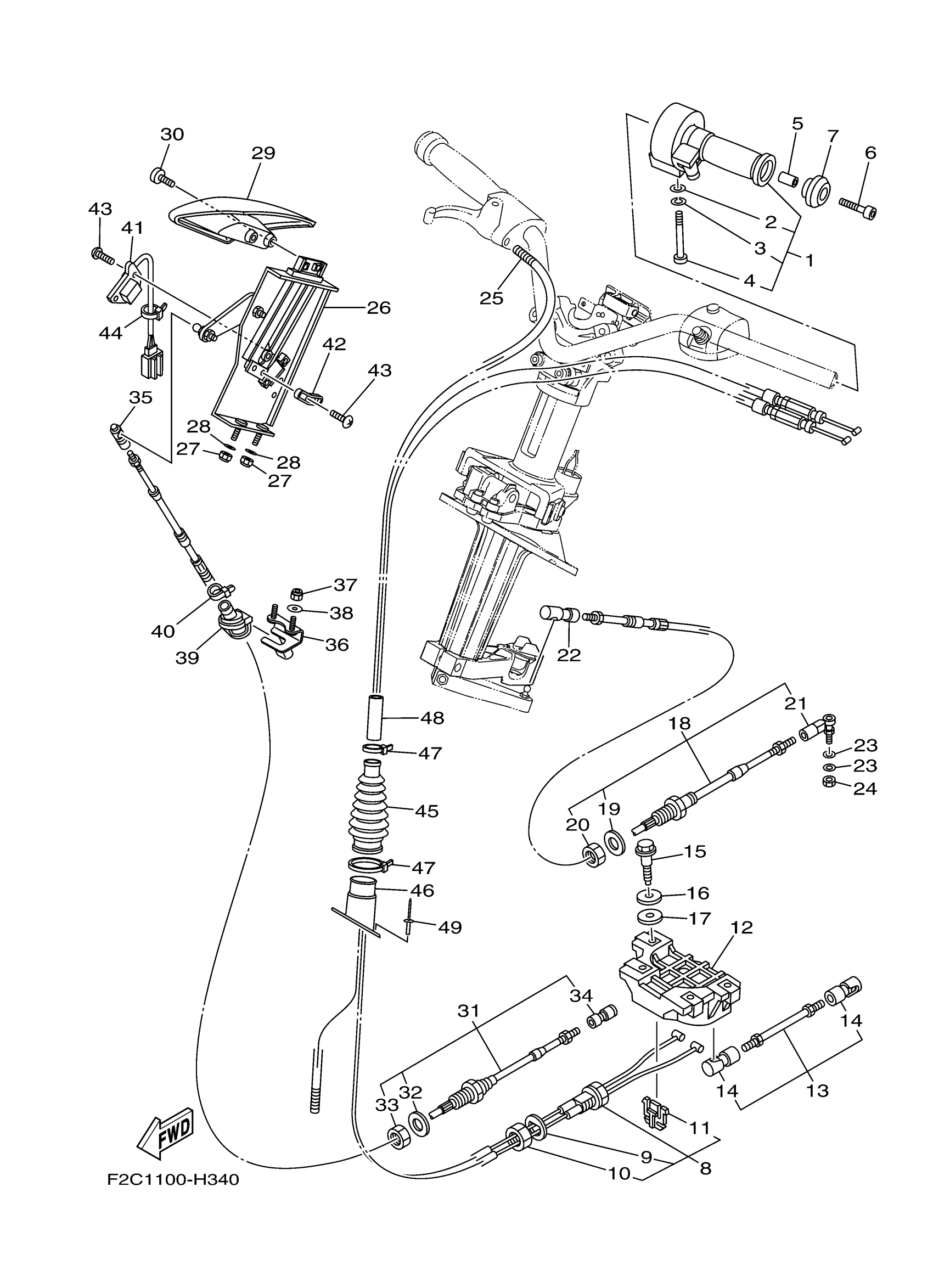

Yamaha GX1800HB (WAVERUNNER FZR) F2R1 2009 CONTROL CABLE Diagram

#

Description
Price

1

NOZZLE,CONTROL ASSY

F1W-6153A-00-00

$210.43

2

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

3

WASHER, SPRING

92995-06100-00

$3.04

4

SCREW

F1W-613C1-10-00

$10.43

5

COLLAR

90387-05800-00

$3.81

6

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

7

GRIP, END

GP7-U155F-00-00

$3.02

8

CABLE,NOZZLE CONTROL 3

F2C-6153E-00-00

$677.60

9

. PACKING C

F1W-61438-00-00

$4.93

10

NUT

F1B-6151S-01-00

$13.63

11

. GUIDE, CABLE

F1W-61557-00-00

$6.27

12

REMOCON,NOZZLE 2

F1W-6153J-01-00

Unavailable

13

ROD ASSY

F1W-6150A-00-00

$179.09

14

. BALL JOINT ASSY

F1B-61460-00-00

$38.75

15

BOLT

90109-06233-00

$122.37

16

WASHER, PLATE

90201-099U3-00

$2.30

17

WASHER, PLATE

90202-08002-00

$2.58

18

CABLE, STEERING

F2C-61481-02-00

Unavailable

19

. PACKING C

F1B-61438-00-00

$2.47

20

NUT

F1B-6151S-01-00

$13.63

21

. STUD, JOINT BALL

F1B-61461-02-00

$90.48

22

SHAFT,JOINT BALL

GK5-U146F-00-00

$24.69

23

WASHER, PLATE

90201-06906-00

$2.80

24

NUT

9538R-06700-00

$1.07

25

HOSE, WITH SPRING

90447-07001-00

Unavailable

26

REMOCON. LEVER ASSY.

F2C-U134A-03-00

$192.52

27

NUT, NYLON

9572R-06300-00

$2.93

28

WASHER

9299R-06200-00

$0.43

29

GRIP

F2C-U2714-00-00

$8.19

30

SCREW, BINDING

90154-06016-00

Unavailable

31

CABLE,REVERSE

F2C-6149C-02-00

Unavailable

32

. PACKING C

F1B-61438-00-00

$2.47

33

NUT

F1B-6151S-01-00

$13.63

34

. BALL JOINT ASSY

F2C-61460-00-00

$46.25

35

SHAFT,JOINT BALL

GK5-U146F-00-00

$24.69

36

BRACKET,STOPPER CABLE

F2C-U1467-01-00

$16.40

37

NUT, NYLON

9572R-06300-00

$2.93

38

WASHER

9299R-06200-00

$0.43

39

PACKING, CABLE

F2C-U146G-01-00

$4.70

40

CLAMP

90465-10098-00

$2.24

41

REVERSE SENSOR ASSY

F1W-6830K-01-00

Unavailable

42

MAGNET

F2C-6838C-00-00

$104.46

43

SCREW, ROUND HEAD

90150-05807-00

$0.86

44

CLAMP

90465-10098-00

$2.24

45

GROMMET

F2C-U822E-01-00

$6.72

46

COLLAR, PLASTIC

F2C-U1465-00-00

$4.33

47

CLAMP(JN6)

90464-40825-00

Unavailable

48

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

49

RIVET, BLIND

90267-48806-00

$2.16
