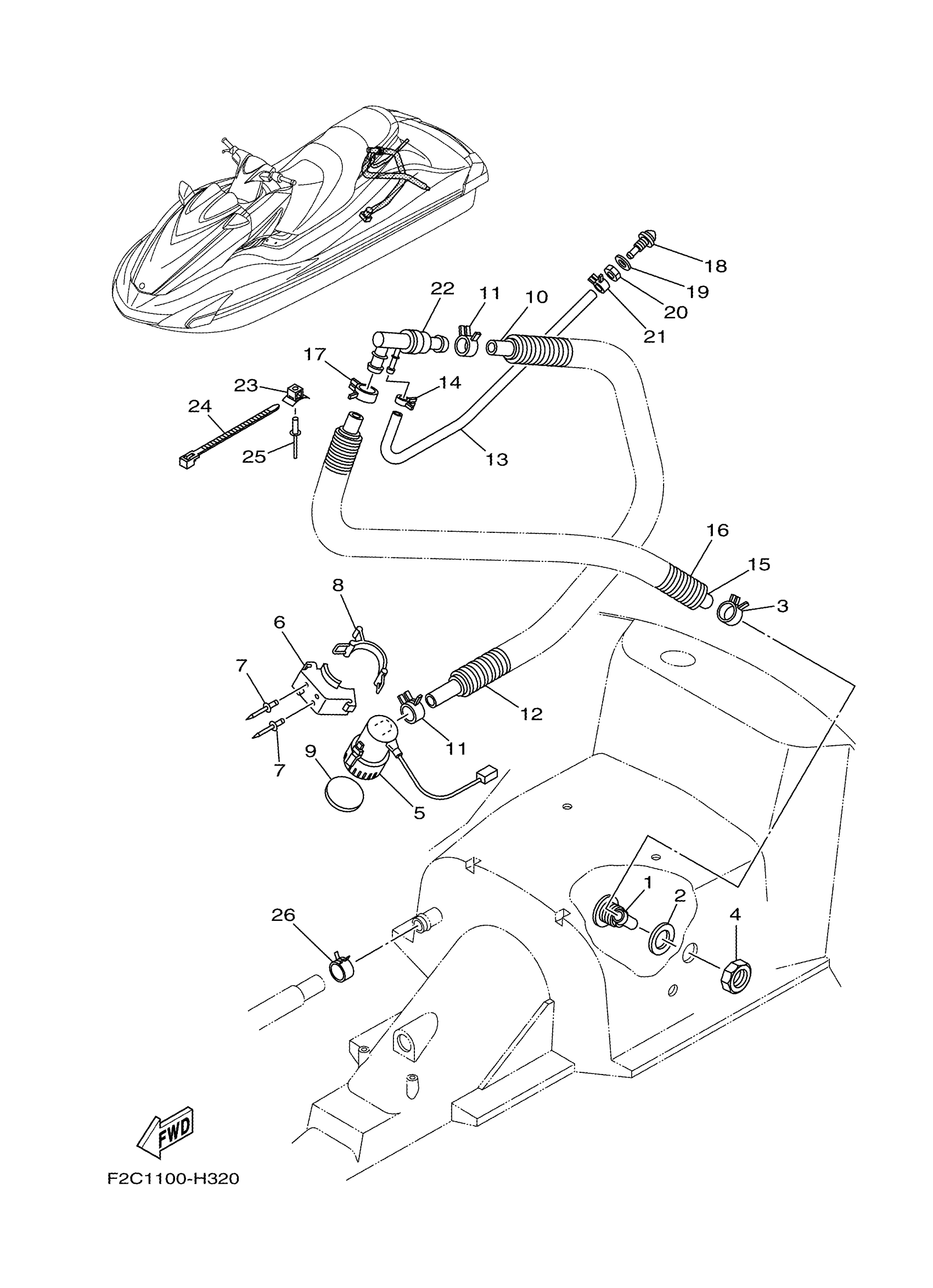

Yamaha GX1800HB (WAVERUNNER FZR) F2R1 2009 BILGE PUMP Diagram

#

Description

Price

1

BODY, DRAIN 3

F1W-U224E-00-00

Unavailable

2

PACKING

F1S-U7525-01-00

Unavailable

3

CLIP

90467-26800-00

Unavailable

4

DRAIN, COCKPIT

F1B-62241-00-00

Unavailable

5

BILGE PUMP ASSY

F1B-U8360-02-00

Unavailable

6

BRACKET

F1B-U7698-01-00

Unavailable

7

RIVET, 1

F3J-U516R-00-00

Unavailable

8

BAND, BATTERY

GA7-68218-00-00

Unavailable

9

PACKING, BILGE

F1B-U7656-00-00

Unavailable

10

HOSE 1

F1B-U7626-00-00

Unavailable

11

CLIP

90467-25801-00

Unavailable

12

TUBE

F2T-U773D-10-00

Unavailable

13

HOSE, DRAIN 2

F1W-U7629-00-00

Unavailable

14

CLIP

90467-14803-00

Unavailable

15

HOSE, DRAIN 3

F1B-U7628-00-00

Unavailable

16

TUBE

F2T-U773D-10-00

Unavailable

17

CLIP

90467-26800-00

Unavailable

18

PILOT,WATER

GH7-6753B-00-00

Unavailable

19

GASKET(GJ1)

90430-16910-00

Unavailable

20

NUT

GP7-61652-00-00

Unavailable

21

CLIP

90467-14803-00

Unavailable

22

HOSE JOINT

F1S-67620-00-00

Unavailable

23

CLAMP COMP (EU0)

90600-91736-00

Unavailable

24

CLAMP

F2C-U4256-00-00

Unavailable

25

RIVET, BLIND

90267-489U6-00

Unavailable

26

CLIP

90467-26800-00

Unavailable
