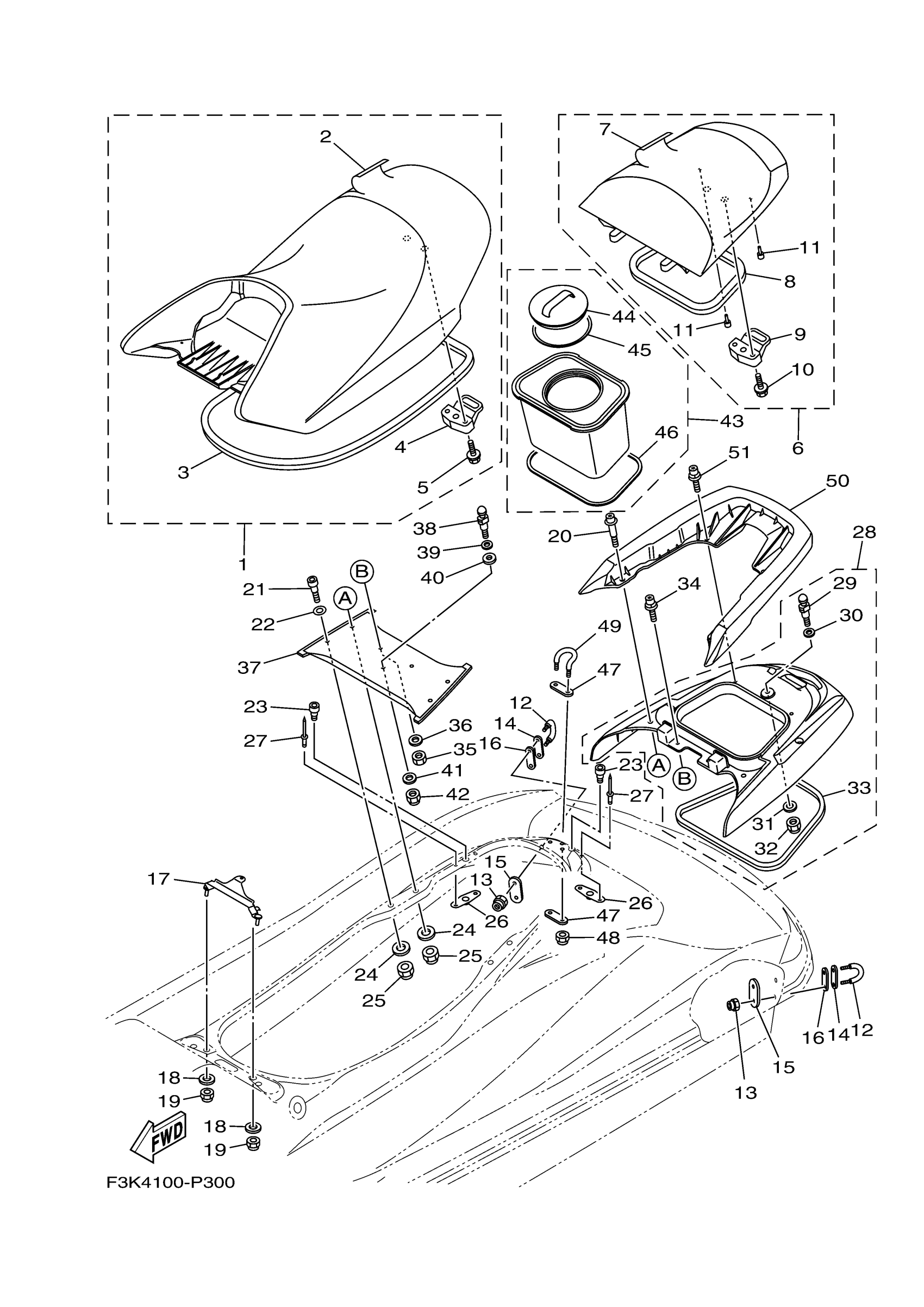

Yamaha GX1800AR (FZS) F3K7 2016 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F2C-U371A-41-00

Unavailable

1

DOUBLE SEAT ASSY

F2C-U371A-51-00

Unavailable

2

. COVER, SEAT 1

F2C-U371B-40-00

$215.14

2

. COVER, SEAT 1

F2C-U371B-50-00

Unavailable

3

. PACKING

F1W-U2664-01-00

$33.32

4

SEAT LOCK ASSY

F1B-U3850-02-00

$9.32

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F2C-U372A-40-00

$717.05

6

SINGLE SEAT ASSY

F2C-U372A-50-00

$717.05

7

. COVER, SEAT

F2C-U372B-40-00

$204.53

7

. COVER, SEAT

F2C-U372B-50-00

$204.53

8

PACKING 5

F2C-U266D-01-00

$16.65

9

. SEAT LOCK ASSY

F2C-U3850-00-00

$22.97

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

12

STERN EYE

F2N-U1628-02-00

$4.96

13

NUT, NYLON (6J8)

95780-08300-00

$10.55

14

PLATE A

GP7-U4953-10-00

$3.52

15

PLATE A

F2C-U4953-10-00

$5.61

16

PACKING

F1B-U1653-03-00

Unavailable

17

STAY, SEAT 1

F2C-U378C-00-00

$57.56

18

WASHER, PLATE

90201-099U3-00

$2.16

19

NUT, NYLON (6J8)

95780-08300-00

$10.55

20

BOLT

F2C-U2624-01-00

$3.52

21

BOLT

F2C-U2624-20-00

Unavailable

22

WASHER

9299R-10200-00

$1.63

23

BOLT

F2C-U2624-10-00

$3.52

24

WASHER

9299R-08200-00

Unavailable

25

NUT, NYLON (6J8)

95780-08300-00

$10.55

26

BRACKET

F2C-U826C-00-00

$3.79

27

RIVET (EU0)

90267-48938-00

$5.00

28

DECK BEAM ASSY

F2C-U890L-10-00

Unavailable

29

PIN

GH1-U3774-00-00

$19.38

30

WASHER, PLATE

90201-109U6-00

$3.29

31

WASHER

9299R-10200-00

$1.63

32

NUT, NYLON

9572R-10300-00

$3.37

33

. PACKING 1

F2C-U375E-00-00

$18.92

34

BOLT

F2C-U2624-30-00

$3.52

35

NUT

9538R-08600-00

$1.36

36

WASHER

9299R-08200-00

Unavailable

37

BEAM, DECK 1

F2C-U8952-11-00

$127.26

38

PIN

F1B-U3774-00-00

$22.71

39

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

40

PACKING 1

F0X-6375E-00-00

$3.64

41

WASHER

9299R-10200-00

$1.63

42

NUT, NYLON

9572R-10300-00

$3.37

43

CASE,ASSY 1

F2C-U591A-03-00

$46.95

44

. CAP,CASE

F2C-U591C-00-00

$5.67

45

. PACKING,CASE

F2C-U591D-01-00

$1.63

46

. PACKING,6

F2C-U266E-00-00

$14.35

47

PLATE A

F2C-U4953-00-00

$5.61

48

NUT, NYLON

9572R-10300-00

$3.37

49

SKI TOWS

F2C-U1629-00-00

$27.26

50

GRIP, HAND

F2C-U271B-20-00

Unavailable

51

BOLT

F2C-U2624-30-00

$3.52
