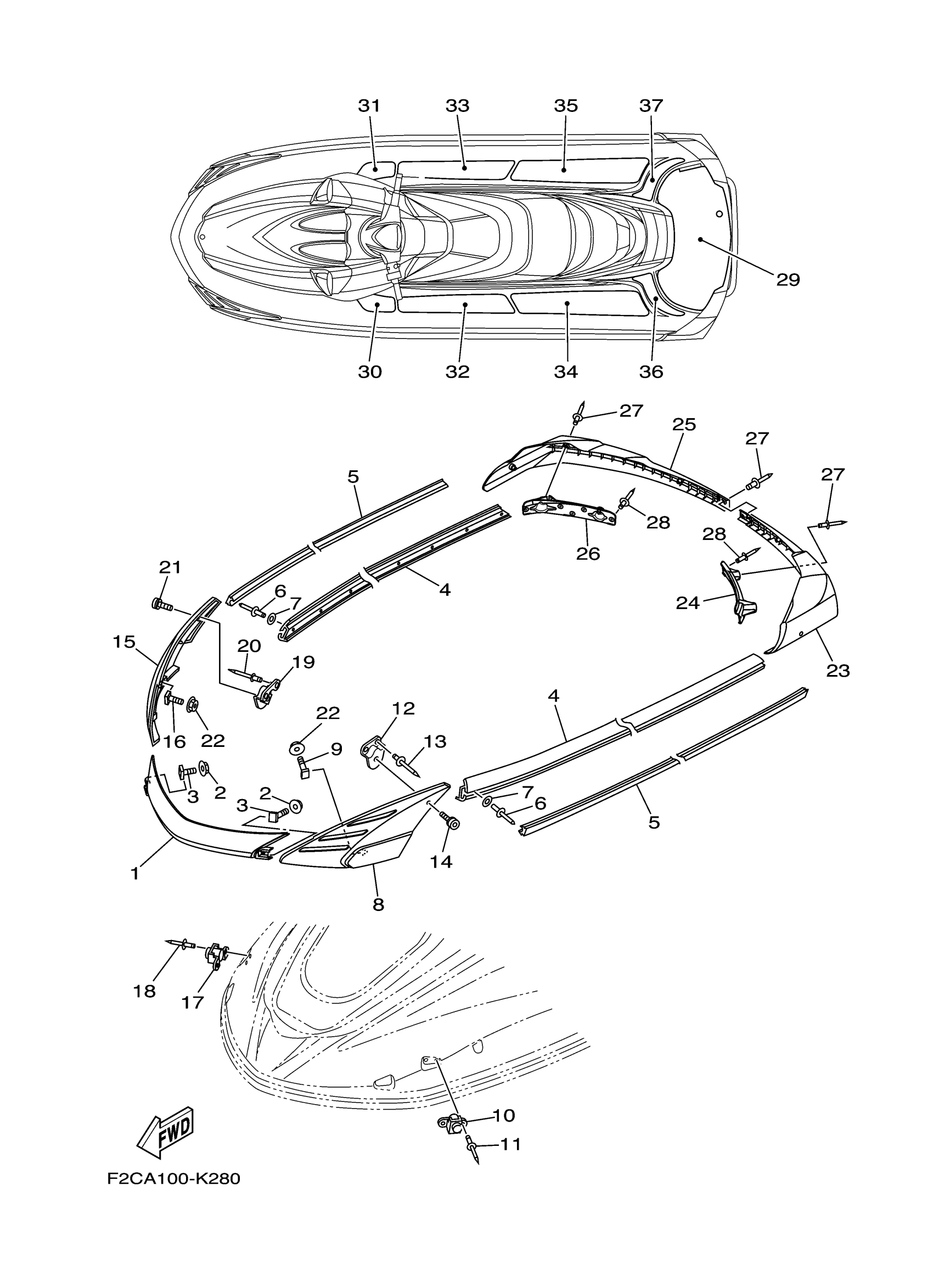

Yamaha GX1800AR (FZS) F3K7 2016 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F2C-U2511-11-00

$96.95

2

NUT, LOCK

F2N-U142L-00-00

$1.00

3

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

4

GUNWALE, SIDE

F1B-U2512-10-00

$87.86

5

INNER,GUNWALE

F1B-U2519-50-00

$74.23

5

INNER,GUNWALE

F1B-U2519-90-00

$56.05

6

RIVET, BLIND

90267-489U8-00

$0.99

7

WASHER

9299R-05200-00

$3.16

8

JOINT, GUNWALE LH

F1W-U252E-21-00

$92.62

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

GROMMET ASSY

F1W-U250B-00-00

$4.24

11

RIVET, BLIND

90267-489U6-00

$1.37

12

BRACKET

F1W-U4949-00-00

$3.26

13

RIVET, BLIND

90267-489U6-00

$1.37

14

BOLT,HEX. SOCKET BUTTON

90111-06115-00

$2.95

15

JOINT, GUNWALE RH

F1W-U252F-21-00

$74.09

16

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

17

GROMMET ASSY

F1W-U250B-00-00

$4.24

18

RIVET, BLIND

90267-489U6-00

$1.37

19

BRACKET

F1W-U4949-00-00

$3.26

20

RIVET, BLIND

90267-489U6-00

$1.37

21

BOLT,HEX. SOCKET BUTTON

90111-06115-00

$2.95

22

NUT, LOCK

F2N-U142L-00-00

$1.00

23

GUNWALE, STERN 1

F1W-U251D-20-00

$101.78

24

BRACKET, GUNWALE 1

F1W-U251L-01-00

$4.70

25

GUNWALE, STERN 2

F1W-U251E-20-00

$145.23

26

BRACKET, GUNWALE 2

F1W-U251M-01-00

$4.70

27

RIVET, BLIND

90267-48825-00

$1.44

28

RIVET, BLIND

90267-489U8-00

$0.99

29

MAT, UPPER

F2C-U3581-10-00

$84.83

29

MAT, UPPER

F2C-U3581-20-00

$83.32

30

MAT, STEP 1

F2C-U351H-10-00

$6.29

30

MAT, STEP 1

F2C-U351H-20-00

$3.11

31

MAT, STEP 2

F2C-U351J-10-00

$6.14

31

MAT, STEP 2

F2C-U351J-20-00

$2.95

32

MAT, STEP 3

F2C-U351K-10-00

$18.92

32

MAT, STEP 3

F2C-U351K-20-00

$21.20

33

MAT, STEP 4

F2C-U351M-10-00

$28.77

33

MAT, STEP 4

F2C-U351M-20-00

$19.68

34

MAT, STEP 5

F2C-U351N-10-00

$33.32

34

MAT, STEP 5

F2C-U351N-20-00

$26.50

35

MAT, STEP 6

F2C-U351P-10-00

$33.32

35

MAT, STEP 6

F2C-U351P-20-00

$25.74

36

MAT, STEP 7

F2C-U351R-10-00

$11.35

36

MAT, STEP 7

F2C-U351R-20-00

$7.12

37

MAT, STEP 8

F2C-U351S-10-00

$11.35

37

MAT, STEP 8

F2C-U351S-20-00

$8.32
