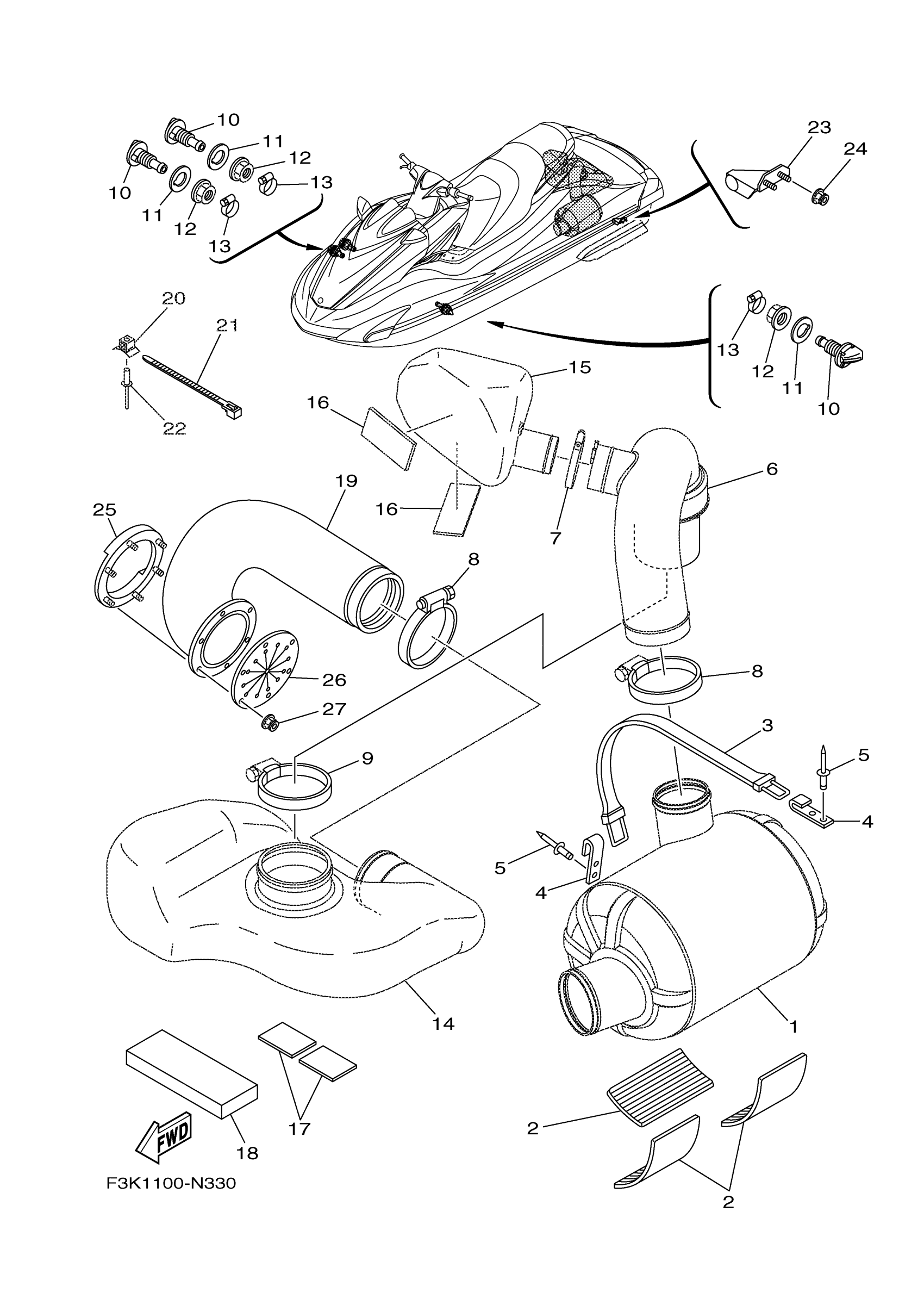

Yamaha GX1800AR (FZS) F3K7 2016 EXHAUST 3 Diagram

#

Description

Price

1

WATER LOCK COMP.

F4P-U7550-00-00

Unavailable

2

PAD, BATTERY

F1S-U8221-00-00

Unavailable

3

BAND, FUEL TANK

EW2-67821-00-00

Unavailable

4

HOOK A

GA7-65772-00-00

Unavailable

5

RIVET (EU0)

90267-48938-00

Unavailable

6

HOSE, EXHAUST

F1W-U7555-01-00

Unavailable

7

BAND, HOSE 70

90601-170UG-00

Unavailable

8

HOSE CLAMP ASSY

90450-99801-00

Unavailable

9

HOSE CLAMP ASSY

90450-99804-00

Unavailable

10

PILOT, WATER

F2C-U753B-01-00

Unavailable

11

GASKET

F2C-U7564-02-00

Unavailable

12

NUT

F2C-U2733-00-00

Unavailable

13

CLIP

90467-17802-00

Unavailable

14

TANK, WATER

F1W-U4261-00-00

Unavailable

15

RESONATOR 1

F1W-U753C-01-00

Unavailable

16

MAT 2

F1K-U759C-00-00

Unavailable

17

MAT 2

F1W-U759C-01-00

Unavailable

18

BED,TANK 1

F1W-U8831-01-00

Unavailable

19

HOSE,EXHAUST 3

F1B-U758D-03-00

Unavailable

20

BASE, CLAMP

F1W-U828M-00-00

Unavailable

21

CLAMP

90464-32801-00

Unavailable

22

RIVET, BLIND

90267-48802-00

Unavailable

23

BRKT., WATER LOCK

F2C-U755G-00-00

Unavailable

24

NUT, LOCK

F2N-U142L-00-00

Unavailable

25

PLATE

F1S-U757B-01-00

Unavailable

26

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

27

NUT, LOCK

F2N-U142L-00-00

Unavailable
