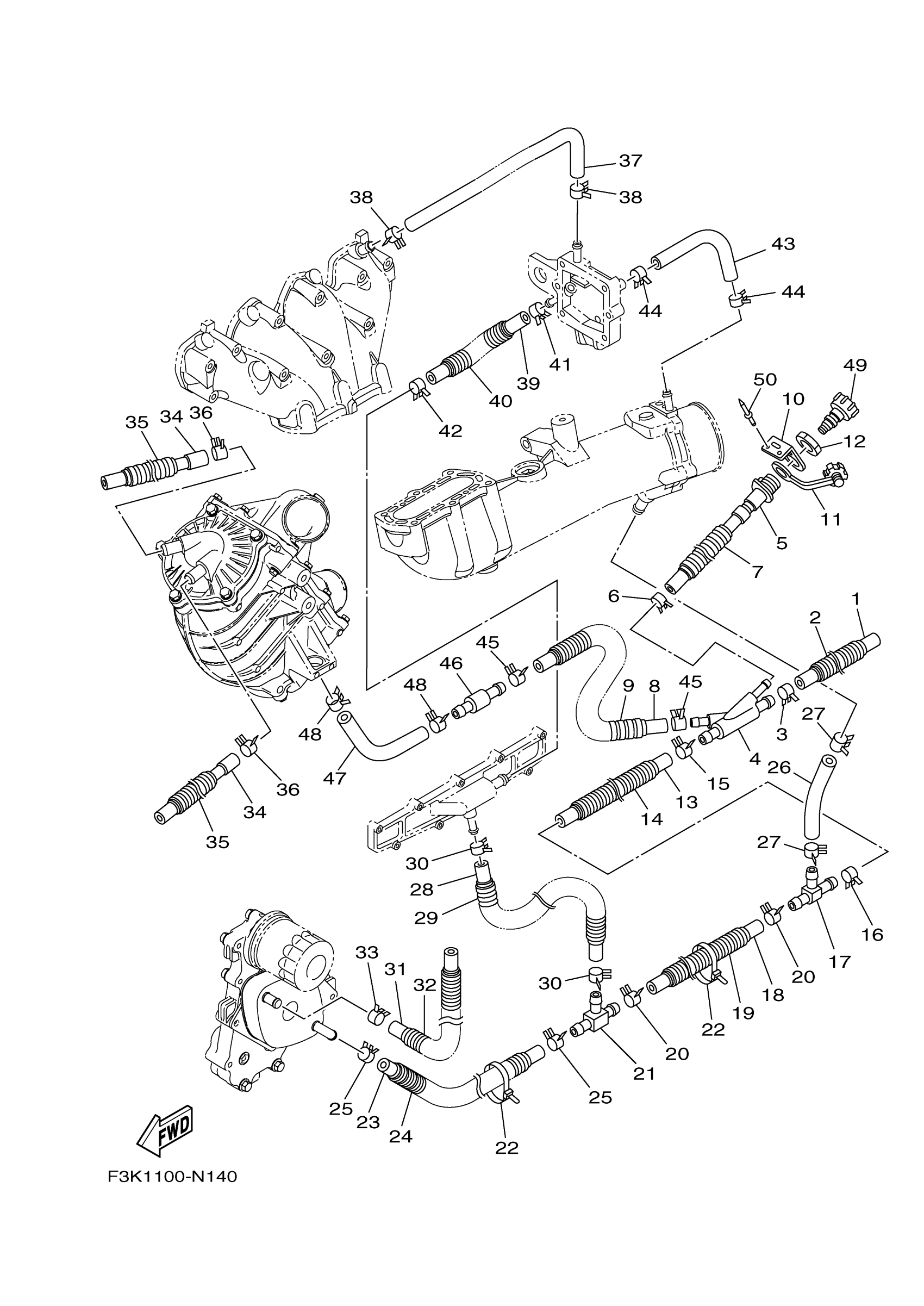

Yamaha GX1800AR (FZS) F3K7 2016 EXHAUST 2 Diagram
#
1
HOSE (L285)
90445-21813-00
Unavailable
2
TUBE
F2T-U773D-20-00
Unavailable
3
CLIP
90467-200A3-00
Unavailable
4
JOINT, HOSE 1
6ET-12581-10-00
Unavailable
5
JOINT ASSY
63M-12580-00-00
Unavailable
6
CLIP
90467-150A5-00
Unavailable
7
TUBE (L485)
90447-19801-00
Unavailable
8
HOSE (L970)
90445-21807-00
Unavailable
9
TUBE (L850)
90447-22802-00
Unavailable
10
STAY
60E-12443-00-00
Unavailable
11
CAP,1
682-84385-01-00
Unavailable
12
NUT
EU0-61652-00-00
Unavailable
13
HOSE 2
6S5-1243E-01-00
Unavailable
14
TUBE
F2T-U773D-00-00
Unavailable
15
CLIP
90467-200A3-00
Unavailable
16
CLIP
90467-200A3-00
Unavailable
17
JOINT, HOSE 3
6BH-12584-00-00
Unavailable
18
HOSE (L220)
90445-18017-00
Unavailable
19
HOSE, WITH SPRING
90447-19004-00
Unavailable
20
CLIP
90467-160A0-00
Unavailable
21
JOINT, HOSE 2
6ET-12582-00-00
Unavailable
22
CLAMP(3XW)
90464-35132-00
Unavailable
23
HOSE (L220)
90445-18017-00
Unavailable
24
HOSE, WITH SPRING
90447-19004-00
Unavailable
25
CLIP
90467-160A0-00
Unavailable
26
HOSE 6
6S5-12589-01-00
Unavailable
27
CLIP
90467-200A3-00
Unavailable
28
HOSE 5
6S5-1244H-00-00
Unavailable
29
TUBE (L150)
90447-19011-00
Unavailable
30
. CLIP
90467-150A1-00
Unavailable
31
HOSE 5
6S5-12588-00-00
Unavailable
32
HOSE, WITH SPRING (L=630)
90447-19006-00
Unavailable
33
CLIP
90467-160A0-00
Unavailable
34
HOSE 8
6S5-12552-00-00
Unavailable
35
HOSE (L420)
90446-24M89-00
Unavailable
36
CLIP
90467-170A4-00
Unavailable
37
HOSE 2
6BH-12577-00-00
Unavailable
38
CLIP
90467-160A0-00
Unavailable
39
HOSE 4
6S5-12579-00-00
Unavailable
40
TUBE (L150)
90447-19011-00
Unavailable
41
CLIP
90467-160A0-00
Unavailable
42
CLIP
90467-170A5-00
Unavailable
43
HOSE (L220)
90445-16013-00
Unavailable
44
CLIP
90467-160A0-00
Unavailable
45
CLIP
90467-200A3-00
Unavailable
46
JOINT, HOSE 4
6S5-12594-00-00
Unavailable
47
HOSE 1
6S5-12576-01-00
Unavailable
48
CLIP
90467-200A3-00
Unavailable
49
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
50
RIVET (EU0)
90267-48938-00
Unavailable
