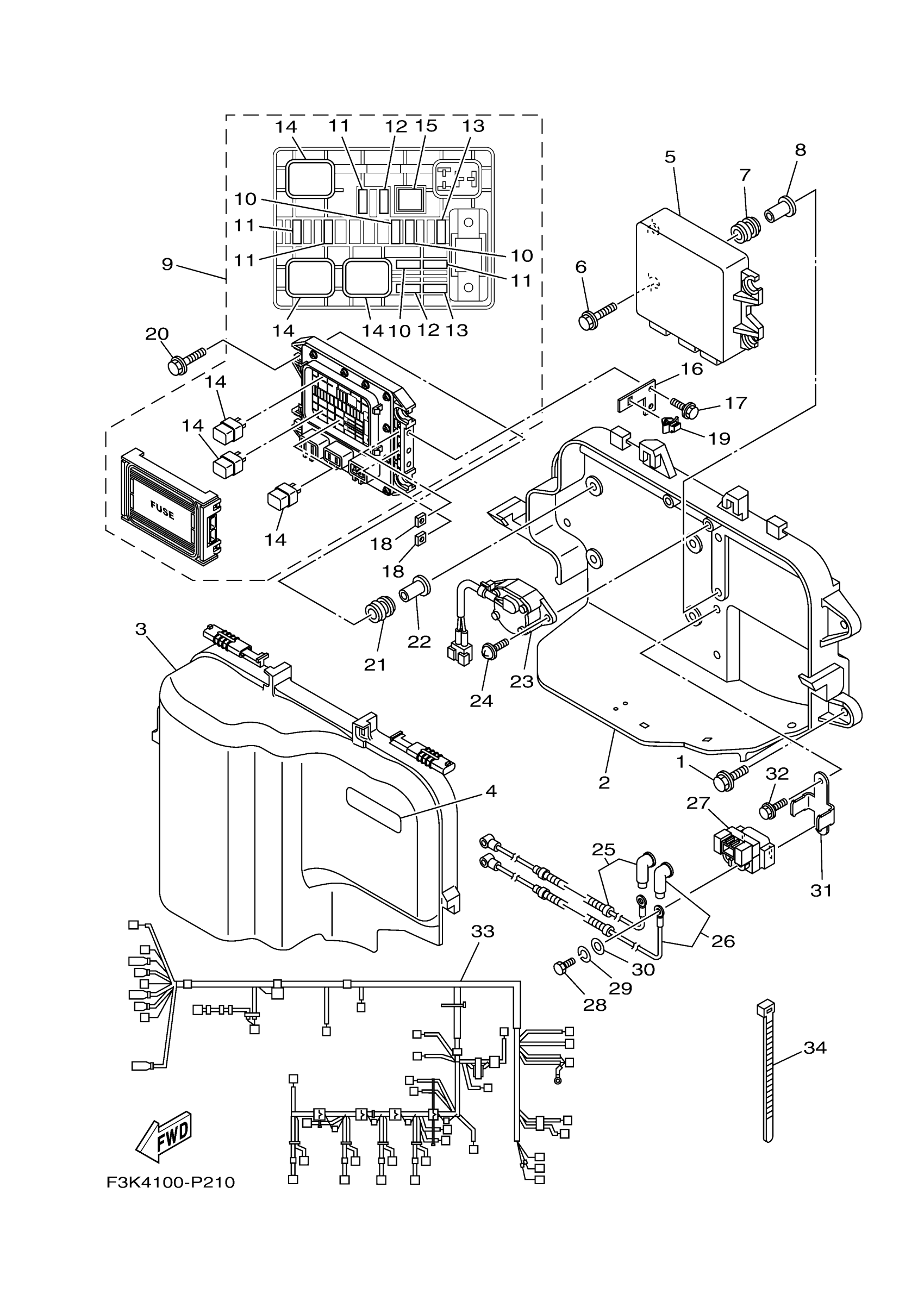

Yamaha GX1800AR (FZS) F3K7 2016 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

$3.16

2

PLATE

6CS-81845-00-00

$89.38

3

COVER

6S5-81942-11-00

Unavailable

4

LABEL, CAUTION 7

60E-83627-00-00

$4.55

5

ENGINE CONTROL UNIT ASSY

6EV-8591A-22-00

$1,589.38

6

BOLT, WITH WASHER

90119-06311-00

$1.58

7

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

8

. COLLAR

90387-06119-00

$4.37

9

FUSE BOX ASSY

6EX-82170-12-00

$281.80

10

. FUSE (3A)

67F-82151-30-00

$4.69

11

. FUSE (10A)

67F-82151-40-00

$6.07

12

FUSE

5JJ-82151-20-00

$5.98

13

FUSE

5JJ-82151-60-00

$5.98

14

. RELAY ASSY

6EX-8195A-00-00

$15.55

15

. PULLER, FUSE

6EX-2812A-00-00

$1.36

16

PLATE

6CS-82588-00-00

$4.09

17

BOLT, HEXAGON W/W DEEP RECESS

97E95-06514-00

$1.07

18

NUT, SQUARE(1HV)

90173-06015-00

Unavailable

19

CLAMP

90464-09M47-00

$4.07

20

BOLT, WITH WASHER

90119-06311-00

$1.58

21

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

22

. COLLAR

90387-06119-00

$4.37

23

SWITCH ASSY

6S5-8259E-00-00

$165.14

24

SCREW, TAPPING

97780-60520-00

$4.09

25

WIRE, PLUS LEAD

6JP-82115-00-00

$47.99

26

WIRE, LEAD

6CS-82117-00-00

$63.65

27

STARTER RELAY ASSY (2768102-A)

1B7-81940-00-00

Unavailable

28

BOLT(GH1)

97080-06012-00

$2.56

29

WASHER, SPRING

92995-06100-00

$2.95

30

WASHER, PLAIN (646)

92990-06600-00

Unavailable

31

STAY, RELAY

6CS-81953-00-00

$5.45

32

BOLT, FLANGE

95814-06012-00

$2.13

33

WIRE HARNESS ASSY 1

6EV-8259L-10-00

$1,925.74

34

CLAMP

90465-14M66-00

Unavailable
