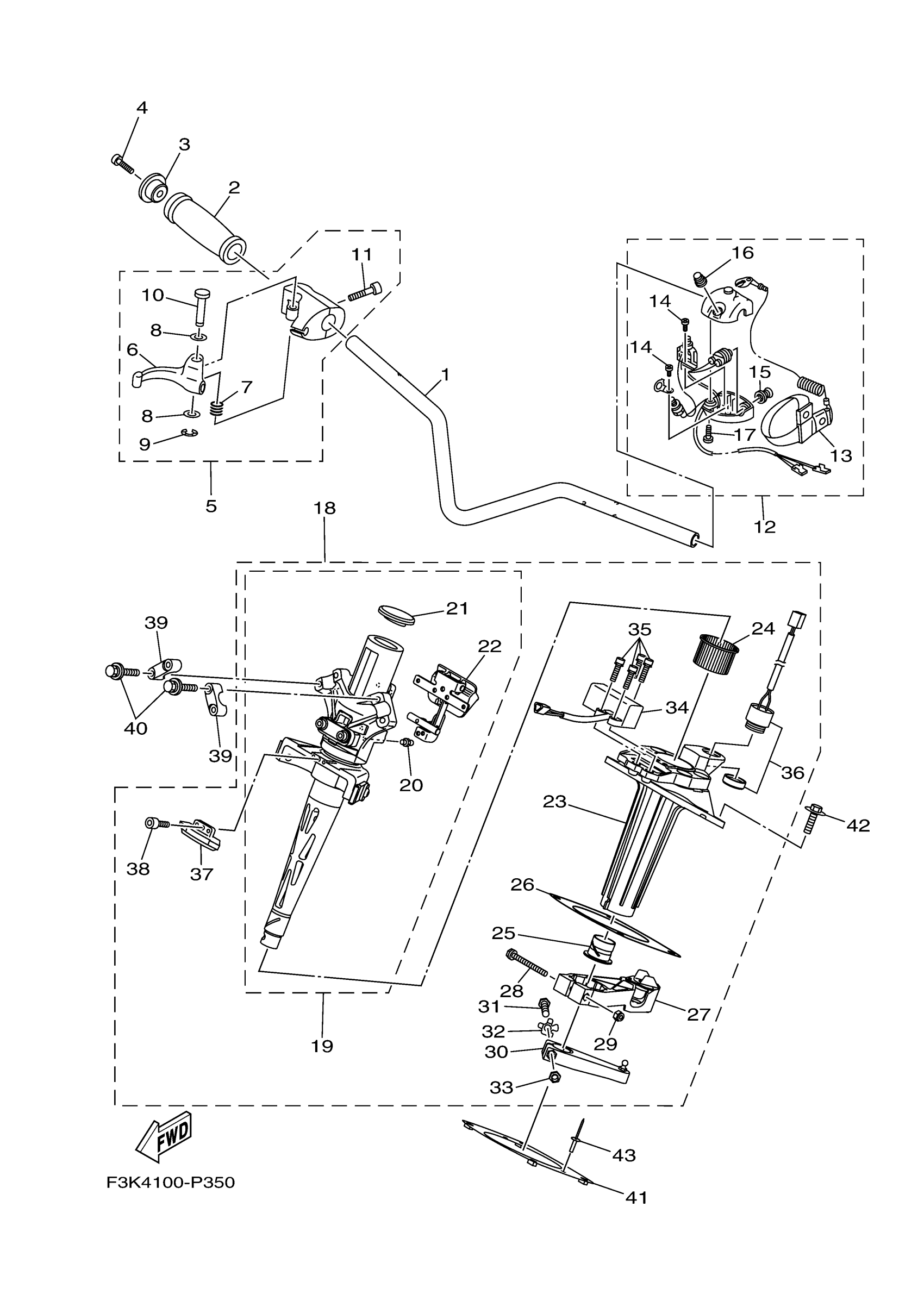

Yamaha GX1800AP (FZS) F3K4 2015 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F2C-U1552-00-00

$123.51

2

GRIP, HANDLE

GP7-U155D-01-00

$41.63

3

GRIP, END

GP7-U155F-00-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F0D-67250-10-00

Unavailable

6

LEVER, THROTTLE

F0D-67255-02-00

Unavailable

7

. SPRING

EW2-67256-00-00

Unavailable

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.61

10

. SHAFT

F0D-67257-00-00

$16.90

11

. BOLT, THROTTLE

F1X-6725F-01-00

$3.53

12

SWITCH BOX ASSY

F2C-68310-00-00

Unavailable

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$11.96

16

. START BUTTON COMP

FK7-68313-02-00

$10.25

17

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

18

STEERING MASTER ASSY

F3K-61400-00-00

$920.57

19

. SHAFT ASSY

F3K-67410-00-00

$870.57

20

.. NIPPLE, GREASE

F2C-6151T-00-00

$23.51

21

.. CAP

F2C-613B0-00-00

$29.40

22

.. LOCK ASSY

F2C-6287A-00-00

$301.46

23

. HOUSING ASSY

F2C-6152M-00-00

$286.75

24

. BUSH

F1K-6134M-00-00

$5.69

25

. BUSH

F2C-6134M-00-00

$10.99

26

. SEAL, RUBBER

F2C-6143C-00-00

$55.87

27

. CABLE STOPPER ASSY

F2C-6146A-00-00

$176.46

28

. BOLT

F2C-61369-00-00

$22.04

29

NUT, SELF-LOCKING

95720-06300-00

$1.76

30

ARM ASSY.

F2C-6153R-01-00

Unavailable

31

.. BOLT

F1K-61355-00-00

$16.90

32

. PLATE, RETAINING

F1K-6142B-00-00

$5.74

33

. NUT, SELF-LOCKING

95720-08300-00

$3.41

34

SENSOR, MAGNET

F3J-6838B-01-00

$204.40

35

BOLT

F1W-61516-10-00

Unavailable

36

BUZZER

F1S-68341-00-00

$110.28

37

MAGNET

F3J-6838C-01-00

$25.72

38

SCREW

F1B-613C1-10-00

Unavailable

39

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.09

40

BOLT, WITH WASHER

90119-089U1-00

$3.37

41

PLATE, RETAINING

F2C-U1554-00-00

$67.63

42

BOLT,WITH WASHER

90119-08870-00

$16.16

43

RIVET, BLIND

90267-48806-00

$2.16
