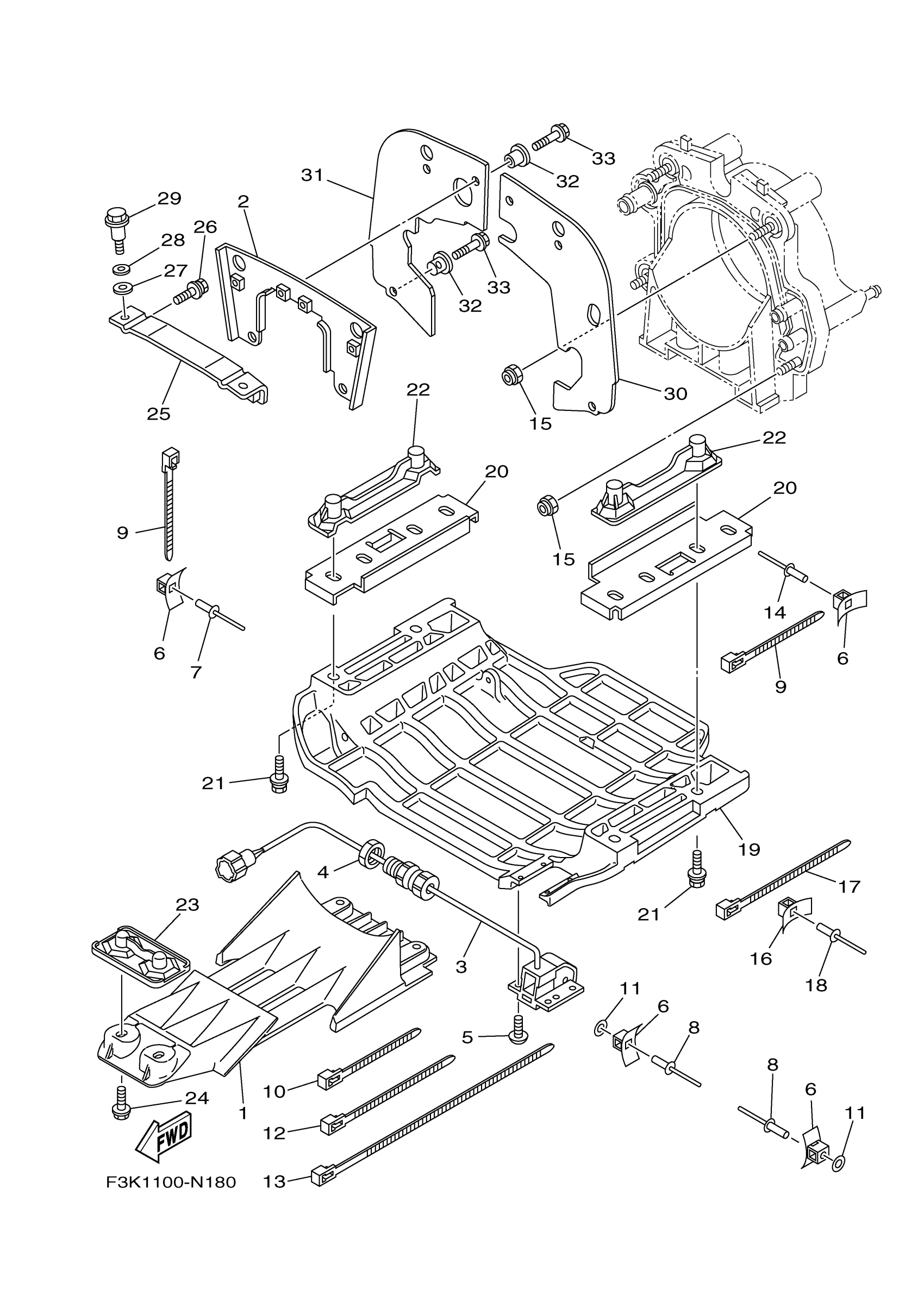

Yamaha GX1800AN (FZS) F3K1 2014 JET UNIT 4 Diagram

#

Description
Price

1

SCREEN, INTAKE

6EV-R1333-00-00

$77.26

2

BRACKET

6ET-R1959-00-00

$17.14

3

SENSOR SPEED

F1S-U8K31-03-00

$142.18

4

NUT

F2C-U151S-00-00

$1.59

5

SCREW, ROUND HEAD

90150-05807-00

$0.79

6

BASE, CLAMP

F1W-U828M-00-00

$1.23

7

RIVET, BLIND

90267-48802-00

$1.98

8

RIVET, BLIND

90267-489U2-00

$1.43

9

CLAMP

90464-32801-00

$1.23

10

BAND

90601-200U1-00

$2.77

11

WASHER

9299R-05200-00

$3.16

12

CLAMP

90464-32801-00

$1.23

13

CLAMP

90464-99801-00

$2.73

14

RIVET, BLIND

90267-489U6-00

$1.37

15

NUT, NYLON

9572R-10300-00

$3.37

16

BASE, CLAMP

F1W-U828M-00-00

$1.23

17

CLAMP

90464-32801-00

$1.23

18

RIVET, BLIND

90267-48802-00

$1.98

19

PLATE 2

F3K-6273B-00-00

$410.59

20

SPACER

F2C-U143G-00-00

$45.44

21

BOLT, WITH WASHER

90119-08829-00

$3.88

22

BRACKET 2

F1G-U8572-02-00

$18.66

23

BRACKET, 3

F2C-U8577-03-00

$19.68

24

BOLT, WITH WASHER

90119-10809-00

Unavailable

25

BRACKET

F2C-U7557-01-00

$30.29

26

BOLT, WITH WASHER

90119-08800-00

$4.09

27

GASKET

90430-12002-00

$1.81

28

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

29

BOLT

90109-08043-00

$4.09

30

PLATE, RUBBER 1

F3K-U757E-00-00

$12.11

31

PLATE, RUBBER 2

F3K-U757F-00-00

$12.11

32

COLLAR

90387-06080-00

$7.27

33

BOLT, WITH WASHER

90119-06827-00

Unavailable
