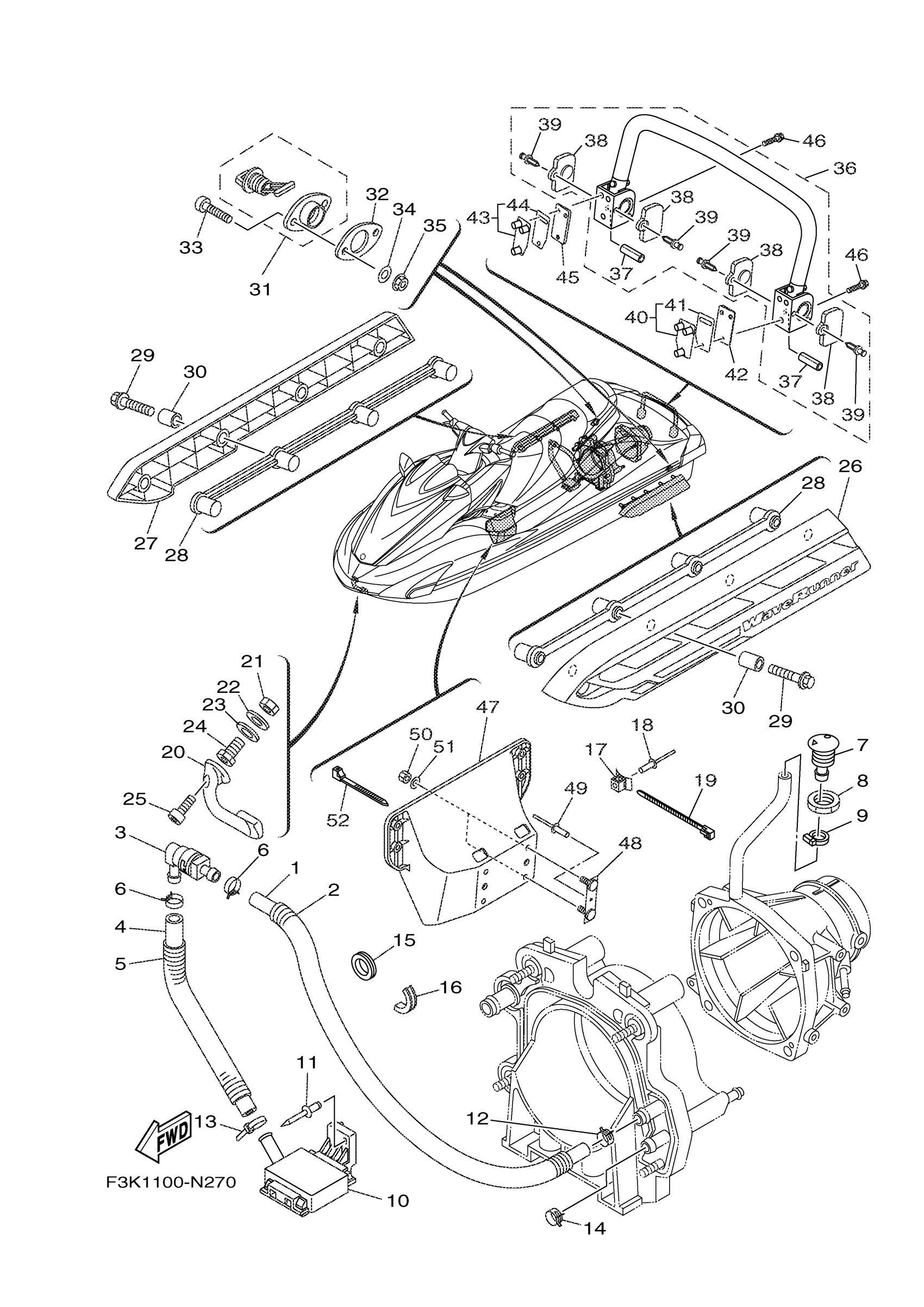

Yamaha GX1800AN (FZS) F3K1 2014 HULL & DECK Diagram

#

Description
Price

1

HOSE (L860)

90445-20804-00

$12.86

2

HOSE

90446-27M73-00

$18.83

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE (L500)

90445-20800-00

$12.86

5

HOSE(63M)

90446-27M55-00

$14.36

6

CLIP

90467-18804-00

$2.72

7

SPOUT

F1W-U269B-00-00

$1.80

8

NUT

EU0-61652-00-00

$11.48

9

BAND, HOSE 18

90601-118UF-00

$2.07

10

STRAINER, BILGE

F1B-U761D-02-00

$5.15

11

RIVET, BLIND

90267-489U8-00

$0.99

12

CLIP

90467-21800-00

$2.87

13

BAND

90601-200U1-00

$2.77

14

CLIP

90467-200A0-00

$7.40

15

GROMMET

90480-38800-00

$2.73

16

TRIM, 1

F1S-U828H-01-00

$6.52

17

BASE, CLAMP

F1W-U828M-00-00

$1.23

18

RIVET, BLIND

90267-48802-00

$1.98

19

CLAMP

90464-32801-00

$1.23

20

BOW EYE 1

F1K-61624-00-00

$42.60

21

NUT.HEX.(COARS)

99780-12600-00

$2.80

22

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

23

WASHER

F0X-61637-00-00

$1.29

24

NUT

F0X-61652-01-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

26

SPONSON LH

F2S-U883N-02-00

$50.26

27

SPONSON RH

F2S-U883P-02-00

$37.32

28

BRACKET,STABILIZER

F2S-U883T-00-00

$28.02

29

BOLT,WASHER BASED

90105-088F9-00

$2.91

30

SPACER

F2N-U8169-10-00

$1.15

31

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

32

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

33

SCREW, PAN HEAD

9788R-05025-00

$2.52

34

WASHER

9299R-05200-00

$3.16

35

NUT, FLANGE

9572R-05300-00

$1.43

36

LADDER, STEP ASSY

F2C-U278A-01-00

$219.68

37

. SLEEVE 1

F1W-U771H-00-00

$22.97

38

. INNER, COVER SIDE 1

F2C-U377H-00-00

$3.29

39

. PIN

F2C-U1314-00-00

$2.44

40

BRACKET, LADDER LH

F2C-U278F-00-00

$29.53

41

. PACKING, BRKT 1

F2C-U278H-00-00

$6.82

42

BRACKET 2

F2C-U278L-00-00

$1.89

43

BRACKET, LADDER RH

F2C-U278G-00-00

$29.53

44

. PACKING, BRKT 1

F2C-U278H-00-00

$6.82

45

BRACKET 1

F2C-U278K-00-00

$1.89

46

BOLT, WITH WASHER

90119-08844-00

$1.29

47

BRACKET 2

F1W-U8572-01-00

$48.47

48

BRACKET

F1K-U826C-03-00

$12.86

49

RIVET (EU0)

90267-48938-00

$5.00

50

NUT, NYLON (6J8)

95780-08300-00

$10.55

51

WASHER

9299R-08200-00

Unavailable

52

CLAMP

90464-32801-00

$1.23
