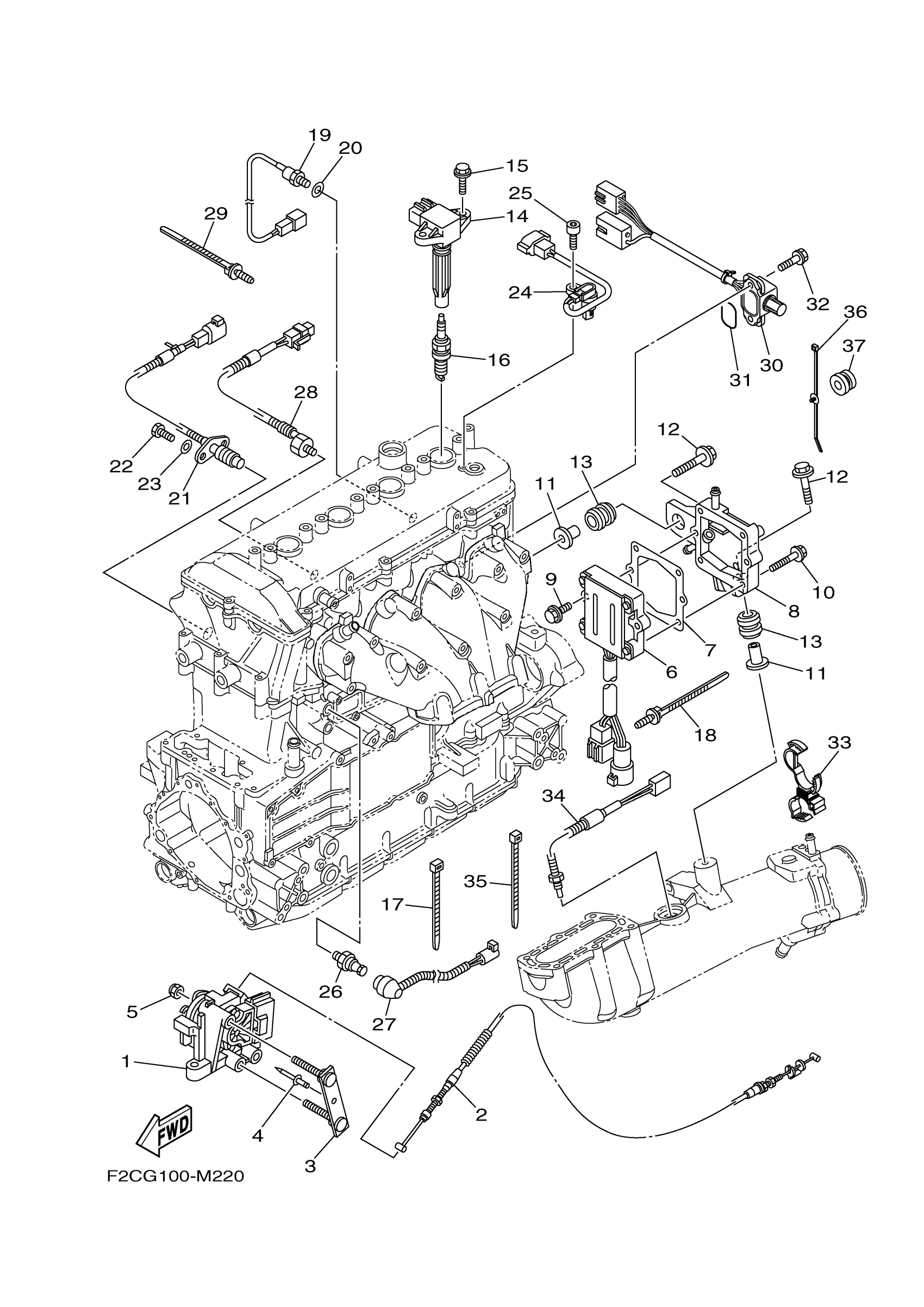

Yamaha GX1800AM (FZS) F2CG 2013 ELECTRICAL 2 Diagram

#

Description
Price

1

ACCEL. POSITON SENSOR ASSY

6D3-14305-21-00

$430.87

2

CABLE, THROTTLE 1

6AN-26311-00-00

$86.75

3

BRACKET, THROTTLE

F2N-U7254-00-00

$11.01

4

RIVET (EU0)

90267-48938-00

$4.85

5

NUT, NYLON (6J8)

95780-08300-00

$10.09

6

RECTIFIER & REGULATOR ASSY

6S5-81960-11-00

$391.16

7

PLATE, RECTIFIER FITTING

6S5-81975-00-00

$11.75

8

COVER, RECTIFIER

6S5-81972-01-94

$144.10

9

BOLT, WITH WASHER

90119-06MA3-00

$2.66

10

BOLT, WITH WASHER

90119-06048-00

$2.21

11

COLLAR

90387-08M37-00

$9.68

12

BOLT, WITH WASHER

90119-08187-00

$2.82

13

GROMMET

90480-22M15-00

$11.01

14

IGNITION COIL ASSY

6S5-82310-10-00

$263.06

15

BOLT,FLANGE (EW2)

90105-06903-00

$4.99

16

PLUG, SPARK (NGK LFR6A-00)

LFR-6A000-00-00

Unavailable

17

CLAMP

90465-13M18-00

$1.53

18

CLAMP

90464-20005-00

$2.13

19

THERMOSENSOR ASSY

61A-85790-01-00

$118.70

20

WASHER, PLATE

92990-10600-00

$2.51

21

THERMO SWITCH ASSY

60E-82560-01-00

$101.46

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

SENSOR, CAM POSITION

60E-85896-02-00

$137.65

25

BOLT,SOCKET

91380-06016-00

Unavailable

26

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$30.45

27

LEAD WIRE ASSY

6S5-81315-01-00

Unavailable

28

SENSOR, KNOCK

6AN-85780-01-00

$278.64

29

CLAMP

90464-20005-00

$2.13

30

EARTH PLATE COMP.

6CS-8273J-11-00

$174.99

31

O-RING (341)

93210-32172-00

Unavailable

32

BOLT, WITH WASHER

90119-06MA3-00

$2.66

33

CLAMP

90464-20008-00

Unavailable

34

THERMOSENSOR ASSY

6AA-85790-00-00

$103.73

35

CLAMP

90464-20005-00

$2.13

36

CLAMP

90464-31002-00

Unavailable

37

GROMMET 437147470000

90480-20132-00

Unavailable
