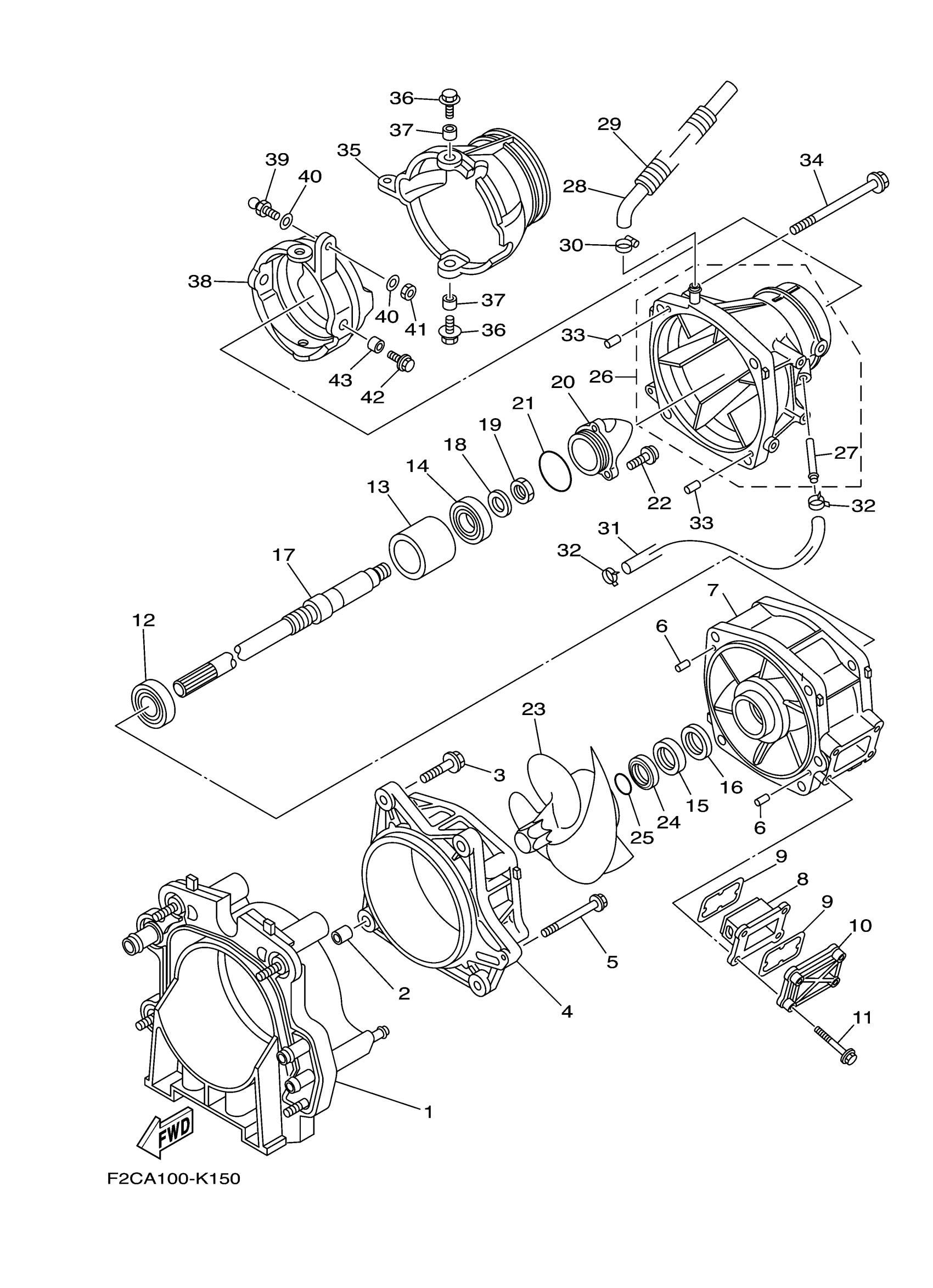

Yamaha GX1800AL (FZS) F2CD 2012 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6AN-G5831-10-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10811-00

$1.37

4

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

5

BOLT, WITH WASHER

90119-06894-00

$1.37

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

DUCT, IMPELLER

6CR-R1315-00-00

$93.30

8

FILTER

66V-46882-00-00

$5.91

9

. O-RING

66V-42414-00-00

$5.18

10

COVER, WATER INLET

6AN-G5214-00-00

$18.17

11

BOLT,WITH WASHER

90119-06898-00

$3.43

12

BEARING

93306-20654-00

$62.23

13

SPACER 1

6S5-45538-00-00

$28.52

14

BEARING

93306-30582-00

$48.16

15

. OIL SEAL

93102-31009-00

$80.29

16

. OIL SEAL

93101-31001-00

$32.99

17

SHAFT, DRIVE

6AN-45511-00-00

$403.02

18

WASHER

9290P-20600-00

$0.57

19

NUT

90170-20802-00

$14.35

20

CAP

6AN-R1326-00-00

$17.94

21

O-RING

93210-54010-00

$2.64

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

23

IMPELLER

6S5-R1321-04-00

$281.52

24

SPACER

6BH-51348-01-00

$61.99

25

O-RING (30X)

93210-30611-00

Unavailable

26

NOZZLE

6S5-51318-00-94

$206.05

27

. NIPPLE,HOSE

63M-51334-00-00

$21.95

28

HOSE 1

6AN-U72M2-00-00

$6.97

29

TUBE (L230)

90447-19015-00

$3.64

30

BAND, HOSE 18

90601-118UF-00

$2.07

31

HOSE (L330)

90445-14804-00

$1.52

32

CLIP

90467-14803-00

$2.58

33

PIN, DOWEL (614)

93606-12019-00

$3.05

34

BOLT, WITH WASHER

90119-10807-00

$5.44

35

NOZZLE, DEFLECTOR

6S5-R1313-01-00

$23.67

36

BOLT, WITH WASHER

90119-08852-00

$3.79

37

COLLAR(6R7)

90387-08M06-00

Unavailable

38

RING,TRIM

60T-51190-00-94

$127.26

39

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

40

WASHER,PLATE

90201-068M4-00

Unavailable

41

NUT

9538R-06700-00

$1.01

42

BOLT, WITH WASHER

90119-08852-00

$3.79

43

COLLAR(6R7)

90387-08M06-00

Unavailable
