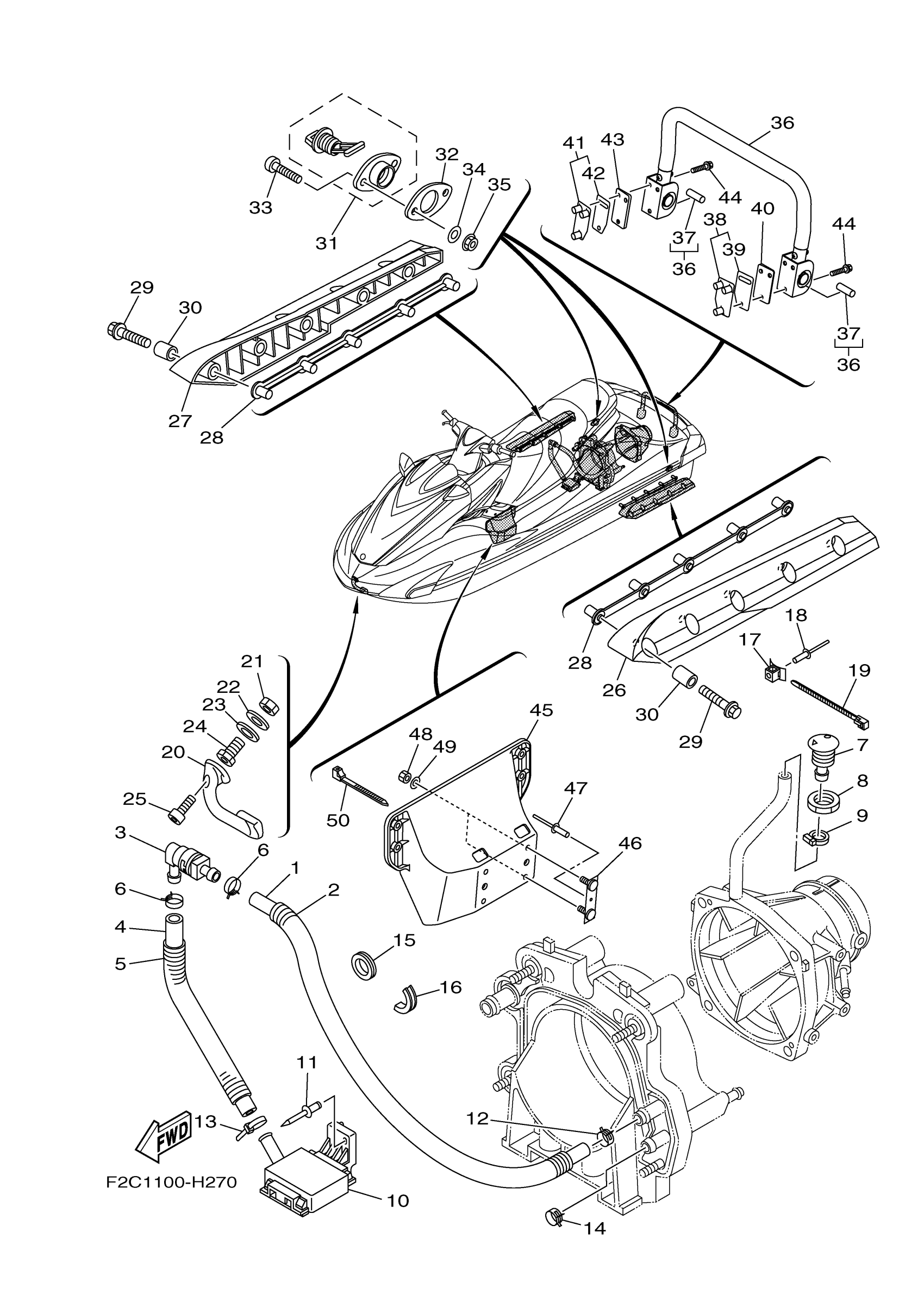

Yamaha GX1800AL (FZS) F2CD 2012 HULL & DECK Diagram

#

Description
Price

1

HOSE (L860)

90445-20804-00

Unavailable

2

HOSE

90446-27M73-00

$21.99

3

JOINT, HOSE

68N-5112T-00-00

Unavailable

4

HOSE (L500)

90445-20800-00

Unavailable

5

HOSE(63M)

90446-27M55-00

$16.99

6

CLIP

90467-18804-00

Unavailable

7

SPOUT

F1W-U269B-00-00

Unavailable

8

NUT

EU0-61652-00-00

Unavailable

9

BAND, HOSE 18

90601-118UF-00

Unavailable

10

STRAINER, BILGE

F1B-U761D-02-00

Unavailable

11

RIVET, BLIND

90267-489U8-00

Unavailable

12

CLIP

90467-21800-00

Unavailable

13

BAND

90601-200U1-00

Unavailable

14

CLIP

90467-200A0-00

Unavailable

15

GROMMET

90480-38800-00

Unavailable

16

TRIM, 1

F1S-U828H-01-00

Unavailable

17

BASE, CLAMP

F1W-U828M-00-00

Unavailable

18

RIVET, BLIND

90267-48802-00

Unavailable

19

CLAMP

90464-32801-00

Unavailable

20

BOW EYE 1

F1K-61624-00-00

Unavailable

21

NUT.HEX.(COARS)

99780-12600-00

Unavailable

22

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

23

WASHER

F0X-61637-00-00

Unavailable

24

NUT

F0X-61652-01-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

Unavailable

26

STABILIZER LH

F1S-U883N-01-00

Unavailable

27

STABILIZER RH

F1S-U883P-01-00

Unavailable

28

BRACKET,STABILIZER

F1X-U883T-02-00

Unavailable

29

BOLT,WASHER BASED

90105-088F9-00

Unavailable

30

SPACER

F2N-U8169-10-00

Unavailable

31

DRAIN PLUG ASSY

F1S-U2280-02-00

Unavailable

32

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

33

SCREW, PAN HEAD

9788R-05025-00

Unavailable

34

WASHER

9299R-05200-00

Unavailable

35

NUT, FLANGE

9572R-05300-00

Unavailable

36

LADDER, STEP ASSY

F2C-U278A-01-00

Unavailable

37

. SLEEVE 1

F1W-U771H-00-00

Unavailable

38

BRACKET, LADDER LH

F2C-U278F-00-00

Unavailable

39

. PACKING, BRKT 1

F2C-U278H-00-00

Unavailable

40

BRACKET 2

F2C-U278L-00-00

Unavailable

41

BRACKET, LADDER RH

F2C-U278G-00-00

Unavailable

42

. PACKING, BRKT 1

F2C-U278H-00-00

Unavailable

43

BRACKET 1

F2C-U278K-00-00

Unavailable

44

BOLT, WITH WASHER

90119-08844-00

Unavailable

45

BRACKET 2

F1W-U8572-01-00

Unavailable

46

BRACKET

F1K-U826C-03-00

Unavailable

47

RIVET (EU0)

90267-48938-00

Unavailable

48

NUT, NYLON (6J8)

95780-08300-00

Unavailable

49

WASHER

9299R-08200-00

Unavailable

50

CLAMP

90464-32801-00

Unavailable
