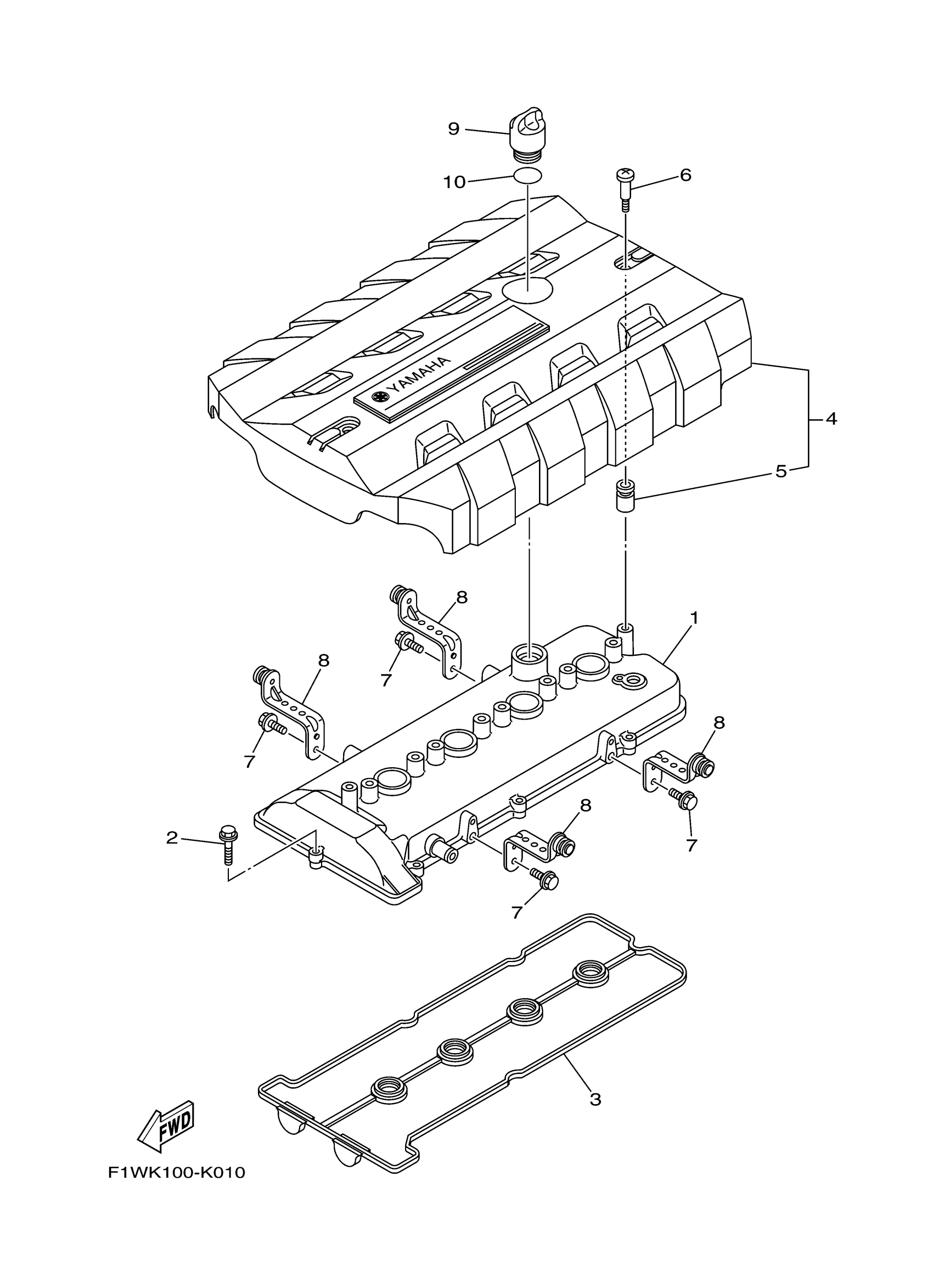

Yamaha GX1800AL (FZS) F2CD 2012 CYLINDER 1 Diagram

#

Description
Price

1

COVER, CYLINDER HEAD 1

6S5-11191-20-00

$310.59

2

BOLT, FLANGE

90105-06028-00

$2.80

3

. GASKET, HEAD COVER 1

6BH-11193-00-00

$35.93

4

COVER ASSY 1

6S5-E110M-01-00

$87.86

5

. GROMMET, ANODE

6S5-E1328-00-00

$1.63

6

BOLT, COVER MOUNTING

6S5-E118E-02-00

$1.37

7

BOLT, FLANGE

95814-06012-00

$2.13

8

STAY

6S5-11941-11-00

Unavailable

9

PLUG, OIL

6S5-15363-00-00

$15.89

10

O-RING (437)

93210-24235-00

$5.34
