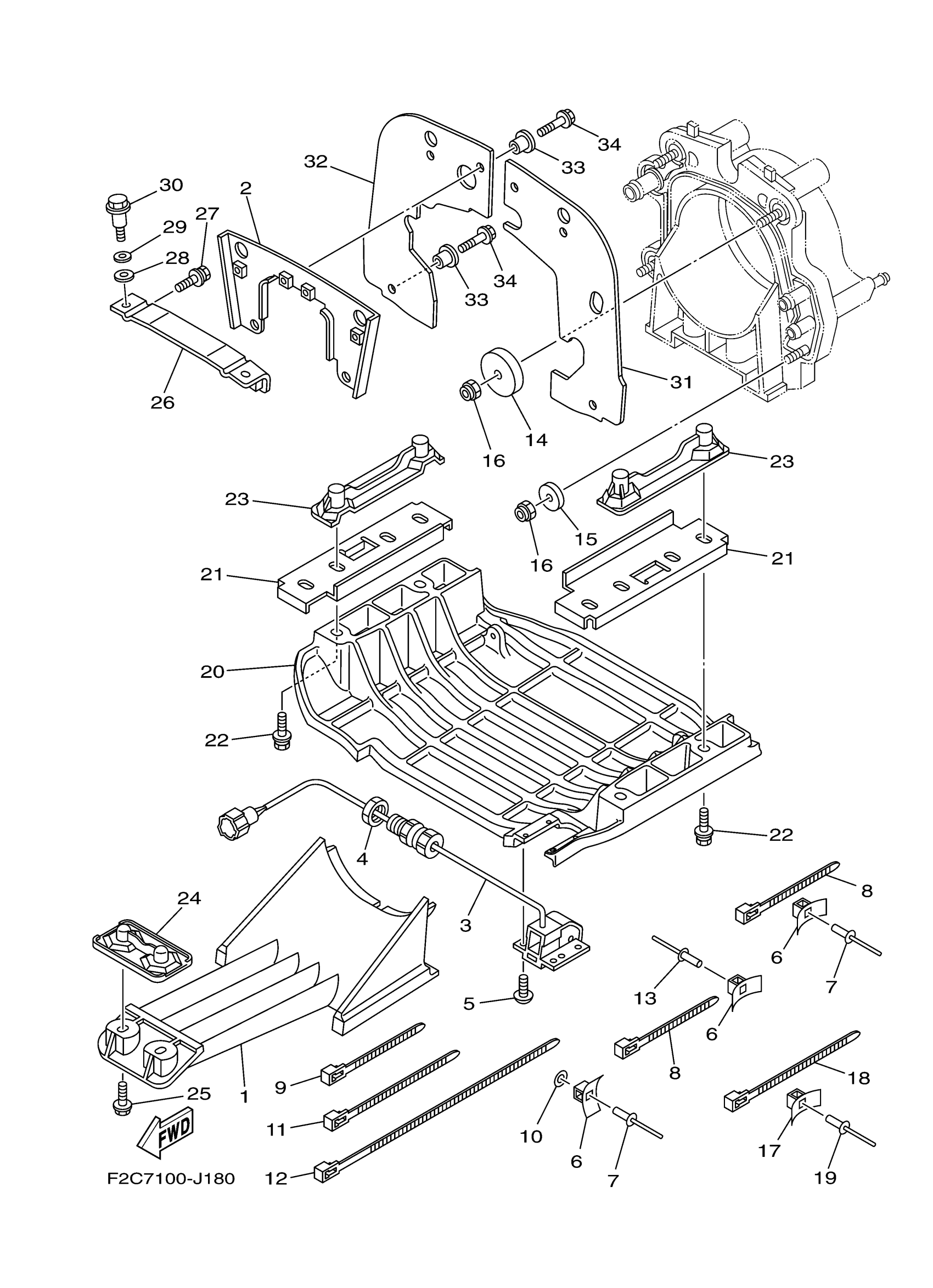

Yamaha GX1800AK (FZS) F2CA 2011 JET UNIT 4 Diagram

#

Description
Price

1

SCREEN, INTAKE

6AN-R1333-02-00

Unavailable

2

BRACKET

6ET-R1959-00-00

Unavailable

3

SENSOR SPEED

F1S-U8K31-03-00

Unavailable

4

NUT

F2C-U151S-00-00

Unavailable

5

SCREW, ROUND HEAD

90150-05807-00

Unavailable

6

BASE, CLAMP

F1W-U828M-00-00

Unavailable

7

RIVET, BLIND

90267-48802-00

Unavailable

8

CLAMP

90464-32801-00

Unavailable

9

BAND

90601-200U1-00

Unavailable

10

WASHER

9299R-05200-00

Unavailable

11

CLAMP

90464-32801-00

Unavailable

12

CLAMP

90464-99801-00

Unavailable

13

RIVET, BLIND

90267-489U6-00

Unavailable

14

WASHER

F1S-U725E-01-00

Unavailable

15

WASHER, PLATE

90201-10801-00

Unavailable

16

NUT, NYLON

9572R-10300-00

Unavailable

17

BASE, CLAMP

F1W-U828M-00-00

Unavailable

18

CLAMP

90464-32801-00

Unavailable

19

RIVET, BLIND

90267-48802-00

Unavailable

20

PLATE 2

F2C-U273B-02-00

Unavailable

21

SPACER

F2C-U143G-00-00

Unavailable

22

BOLT, WITH WASHER

90119-08829-00

Unavailable

23

BRACKET 2

F1G-U8572-02-00

Unavailable

24

BRACKET, 3

F2C-U8577-03-00

Unavailable

25

BOLT, WITH WASHER

90119-10809-00

Unavailable

26

BRACKET

F2C-U7557-01-00

Unavailable

27

BOLT, WITH WASHER

90119-08800-00

Unavailable

28

GASKET

90430-12002-00

Unavailable

29

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

30

BOLT

90109-08043-00

Unavailable

31

PLATE, RUBBER 1

F2C-U757E-01-00

Unavailable

32

PLATE, RUBBER 2

F2C-U757F-01-00

Unavailable

33

COLLAR

90387-06080-00

Unavailable

34

BOLT, WITH WASHER

90119-06827-00

Unavailable
