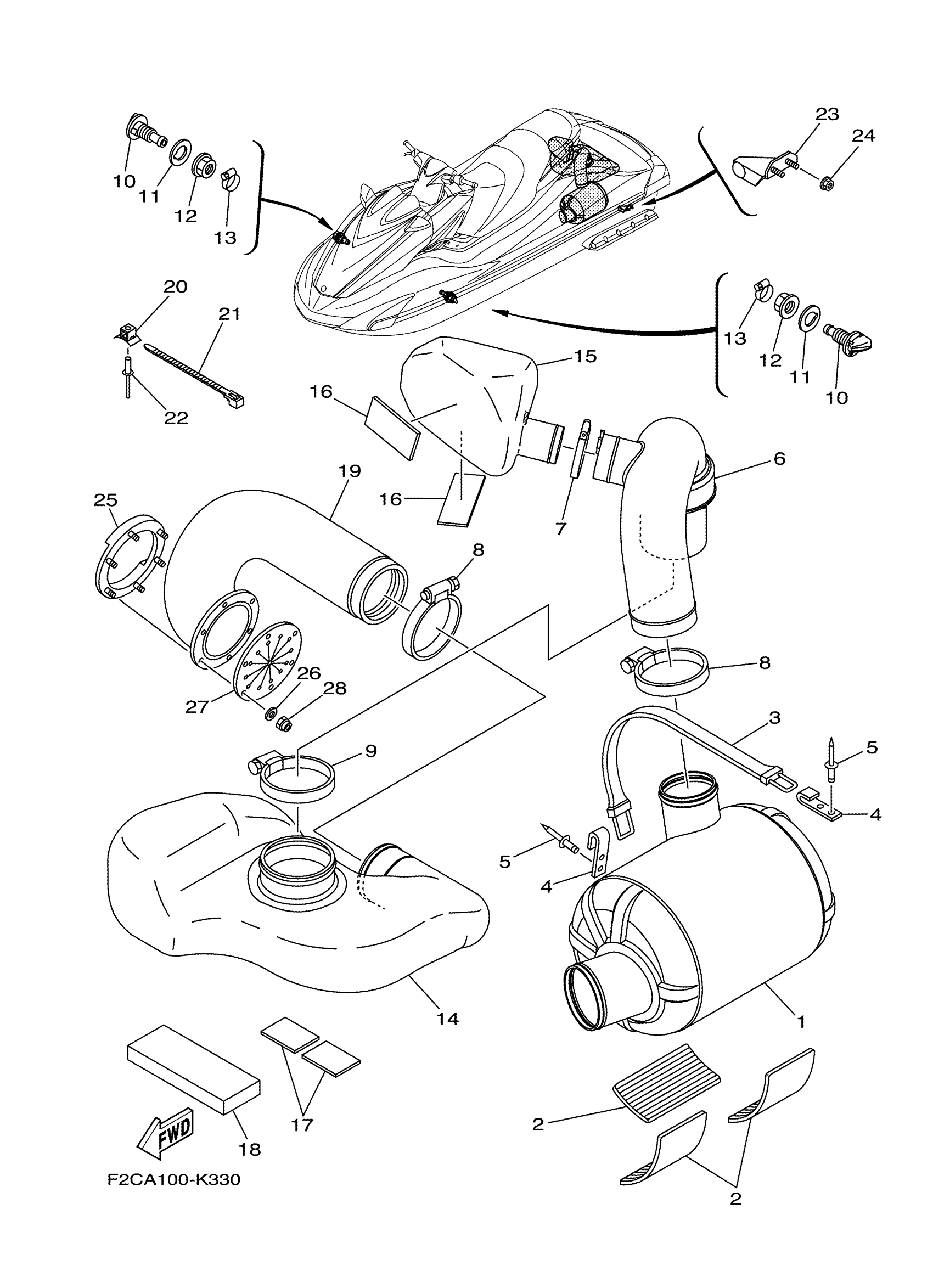

Yamaha GX1800AK (FZS) F2CA 2011 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4P-U7550-00-00

$317.90

2

PAD, BATTERY

F1S-U8221-00-00

$2.88

3

BAND, FUEL TANK

EW2-67821-00-00

$29.25

4

HOOK A

GA7-65772-00-00

$8.94

5

RIVET (EU0)

90267-48938-00

$4.72

6

HOSE, EXHAUST

F1W-U7555-01-00

$74.61

7

BAND, HOSE 70

90601-170UG-00

$5.96

8

HOSE CLAMP ASSY

90450-99801-00

$4.01

9

HOSE CLAMP ASSY

90450-99804-00

$4.51

10

PILOT, WATER

F1K-6753B-00-00

$68.01

11

GASKET

F1B-67564-00-00

$3.03

12

NUT

F0X-62733-00-00

Unavailable

13

CLIP

90467-17802-00

$3.02

14

TANK, WATER

F1W-U4261-00-00

Unavailable

15

RESONATOR 1

F1W-U753C-01-00

Unavailable

16

MAT 2

F1K-U759C-00-00

$1.80

17

MAT 2

F1W-U759C-01-00

$2.46

18

BED,TANK 1

F1W-U8831-01-00

$44.76

19

HOSE,EXHAUST 3

F1B-U758D-03-00

$74.61

20

BASE, CLAMP

F1W-U828M-00-00

$1.29

21

CLAMP

90464-32801-00

$1.29

22

RIVET, BLIND

90267-48802-00

$1.98

23

BRKT., WATER LOCK

F2C-U755G-00-00

$8.94

24

NUT, LOCK

F2N-U142L-00-00

$1.00

25

PLATE

F1S-U757B-01-00

$24.39

26

WASHER

9299R-06200-00

$0.43

27

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

28

NUT, NYLON

9572R-06300-00

$2.93
