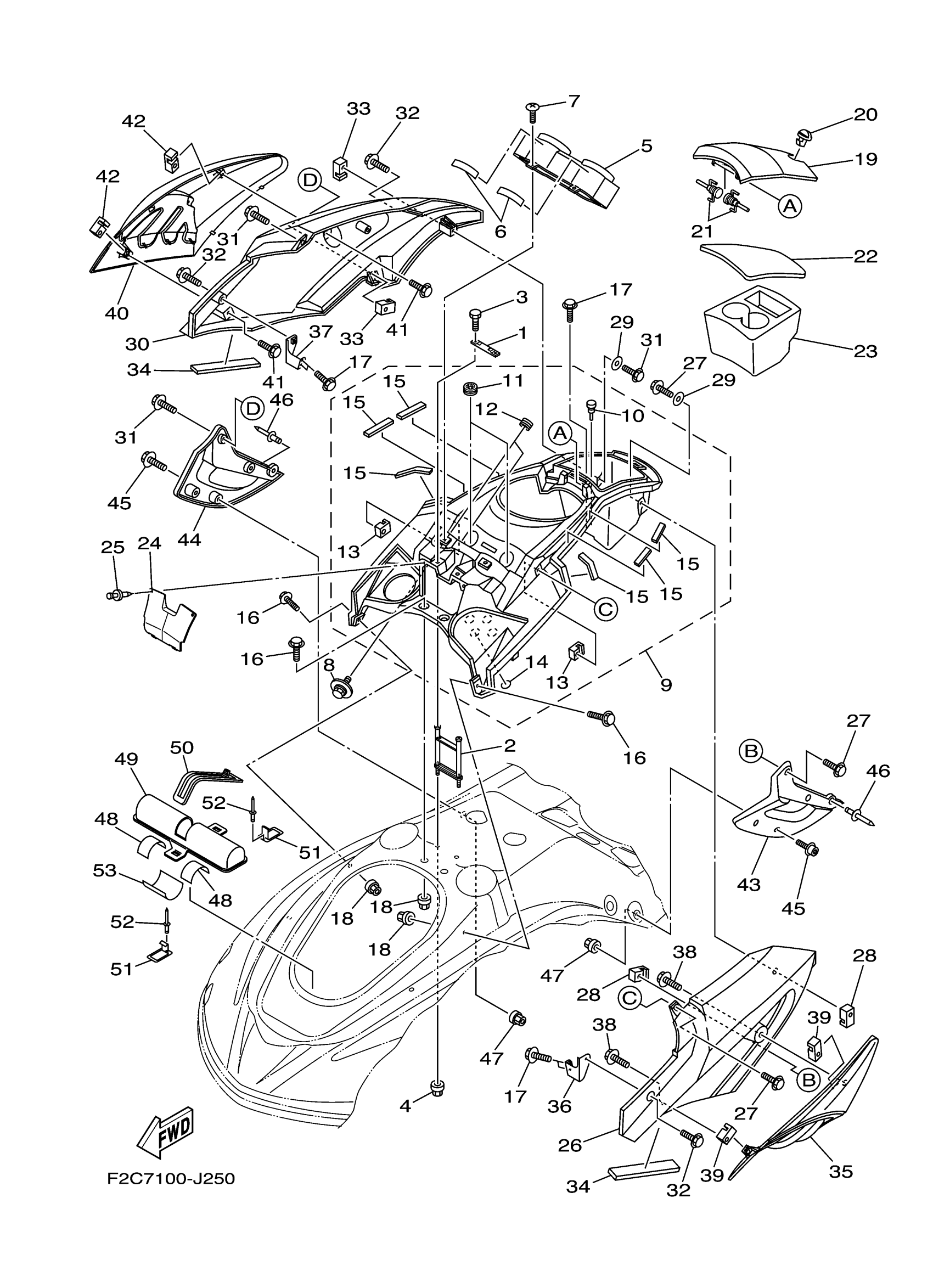

Yamaha GX1800AK (FZS) F2CA 2011 ENGINE HATCH 1 Diagram

#

Description
Price

1

HOOK,LID LOCK

F1W-U517F-00-00

$2.80

2

BRKT., COVER CENTER 1

F1W-U555D-02-00

$42.41

3

BOLT

90101-05800-00

$1.44

4

NUT, LOCK

F2N-U142L-00-00

$1.00

5

METER COVER ASSY.

F2C-U82AA-00-00

$69.68

6

DAMPER 2

F0X-U515E-02-00

$0.98

7

SCREW(GH1)

90149-05903-00

$2.31

8

BOLT, WITH WASHER

90119-05803-00

$4.01

9

CENTER COVER ASSY.

F2C-U5508-02-00

$393.92

10

. PLUG

90605-502U2-00

$2.42

11

. DAMPER 1

F1X-U828E-01-00

$2.27

12

. GROMMET

90480-19800-00

$11.48

13

NUT

F1X-U517E-01-00

$7.11

14

. SEAL 1

F2R-U884B-00-00

$0.83

15

DAMPER 2

F0X-U515E-02-00

$0.98

16

BOLT, WITH WASHER

90119-06880-00

$3.52

17

BOLT, WITH WASHER

90119-06878-00

$3.43

18

NUT, LOCK

F2N-U142L-00-00

$1.00

19

LID HATCH

F2C-U517H-01-00

$20.74

20

LOCK

GU2-62875-02-00

$36.31

21

PIN, HINGE

F1B-6517R-00-00

$5.55

22

PACKING CASE

F2C-U519D-01-00

Unavailable

23

HOLDER, DRINK

F2C-U5633-00-00

$22.71

24

SEAL, COVER CENTER

F1W-U555B-00-00

$5.30

25

RIVET

F1W-U2698-00-00

$1.80

26

COVER,SIDE 1

F2C-U377B-02-P1

Unavailable

26

COVER,SIDE 1 (LIGHT GRAY METALLIC 3) (LIGHT GRAY METALLIC P)

F2C-U377B-02-P2

Unavailable

27

BOLT, WITH WASHER

90119-06880-00

$3.52

28

NUT

F1X-U517E-01-00

$7.11

29

. WASHER, PLATE

90201-068G7-00

$0.98

30

COVER,SIDE 2 (DEEP RED METALLIC R)

F2C-U377C-02-P1

Unavailable

30

COVER,SIDE 2 (LIGHT GRAY METALLIC 3) (LIGHT GRAY METALLIC P)

F2C-U377C-02-P2

Unavailable

31

BOLT, WITH WASHER

90119-06880-00

$3.52

32

BOLT, WITH WASHER

90119-06878-00

$3.43

33

NUT

F1X-U517E-01-00

$7.11

34

DAMPER 1

F2C-U515D-00-00

$1.87

35

ORNAMENT, LH

F2C-U517W-00-00

$186.35

36

BRKT., COVER SIDE 1

F2C-U377M-00-00

$13.46

37

BRKT, COVER SIDE 2

F2C-U377N-00-00

$21.95

38

BOLT, WITH WASHER

90119-06880-00

$3.52

39

NUT

F1X-U517E-01-00

$7.11

40

ORNAMENT, RH

F2C-U517X-00-00

$193.92

41

BOLT, WITH WASHER

90119-06880-00

$3.52

42

NUT

F1X-U517E-01-00

$7.11

43

PAD, KNEE

F2C-U353B-20-00

$13.63

44

PAD, KNEE

F2C-U353B-30-00

$15.14

45

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

46

RIVET, BLIND

90267-48807-00

$2.07

47

NUT, LOCK

F2N-U142L-00-00

$1.00

48

MAT 2

F1K-U759C-00-00

$1.72

49

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$17.94

50

BAND 1

F2P-U828K-00-00

$5.87

51

HOOK A

F1K-U5772-04-00

$6.29

52

RIVET (EU0)

90267-48938-00

$5.00

53

PAD, BATTERY

F1S-U8221-00-00

$2.75
