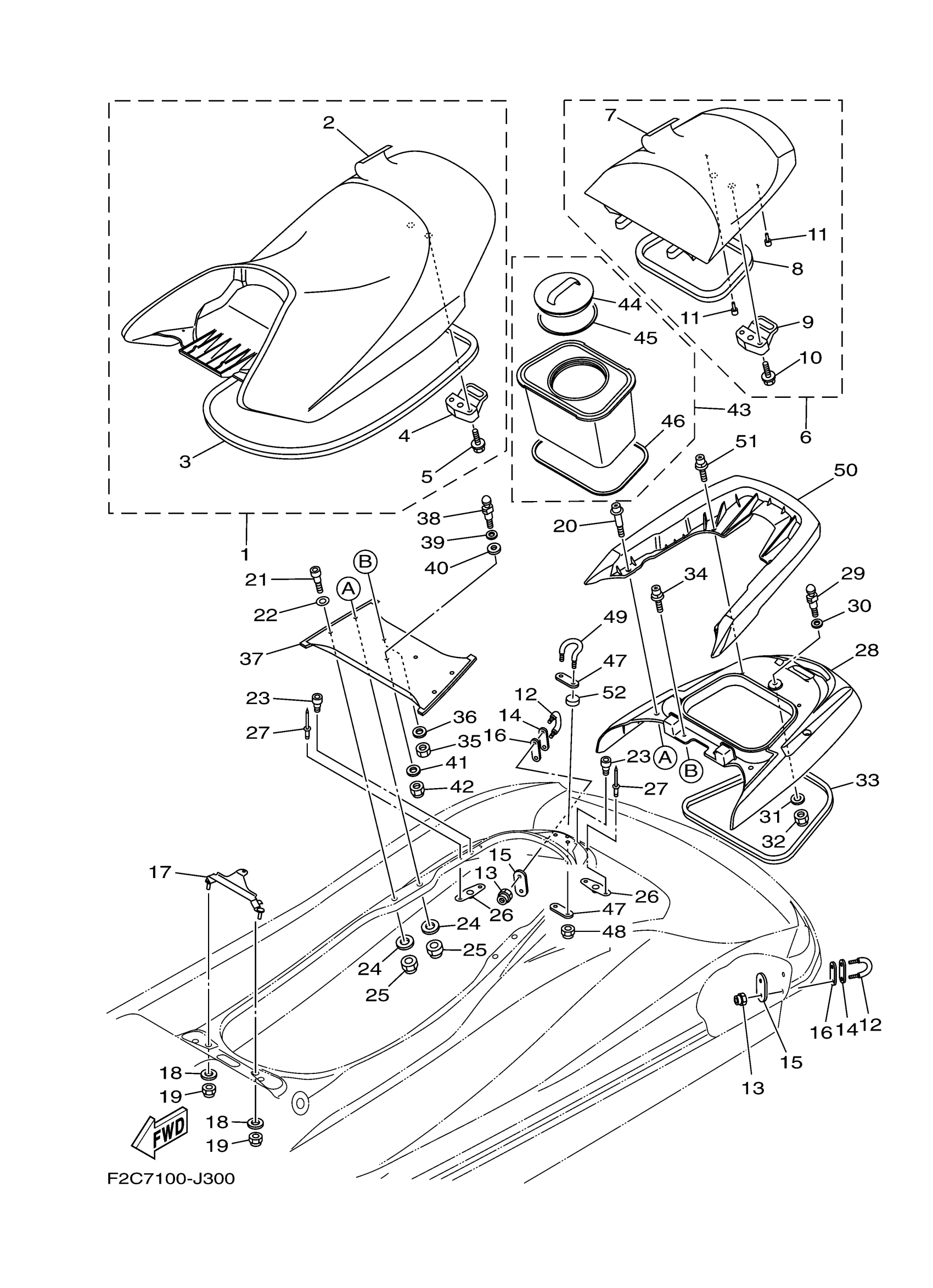

Yamaha GX1800AJ (FZS) F2C7 2010 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F2C-U371A-02-00

Unavailable

2

COVER, SEAT 1

F2C-U371B-01-00

Unavailable

3

. PACKING

F1W-U2664-01-00

Unavailable

4

SEAT LOCK ASSY

F1B-U3850-02-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

Unavailable

6

SINGLE SEAT ASSY

F2C-U372A-02-00

Unavailable

7

COVER SEAT

F2C-U372B-01-00

Unavailable

8

PACKING 5

F2C-U266D-01-00

Unavailable

9

. SEAT LOCK ASSY

F2C-U3850-00-00

Unavailable

10

BOLT, WITH WASHER

90119-06808-00

Unavailable

11

. CUSHION, RUBBER

F1W-U3768-01-00

Unavailable

12

STERN EYE (BLACK)

F1K-61628-00-00

Unavailable

13

NUT, NYLON (6J8)

95780-08300-00

Unavailable

14

PLATE A

GP7-U4953-10-00

Unavailable

15

PLATE A

F2C-U4953-10-00

Unavailable

16

PACKING

F1B-U1653-03-00

Unavailable

17

STAY, SEAT 1

F2C-U378C-00-00

Unavailable

18

WASHER, PLATE

90201-099U3-00

Unavailable

19

NUT, NYLON (6J8)

95780-08300-00

Unavailable

20

BOLT

F2C-U2624-01-00

Unavailable

21

BOLT

F2C-U2624-20-00

Unavailable

22

WASHER

9299R-10200-00

Unavailable

23

BOLT

F2C-U2624-10-00

Unavailable

24

WASHER

9299R-08200-00

Unavailable

25

NUT, NYLON (6J8)

95780-08300-00

Unavailable

26

BRACKET

F2C-U826C-00-00

Unavailable

27

RIVET (EU0)

90267-48938-00

Unavailable

28

BEAM, DECK ASSY

F2C-U890L-02-00

Unavailable

29

PIN

GH1-U3774-00-00

Unavailable

30

WASHER, PLATE

90201-109U6-00

Unavailable

31

WASHER

9299R-10200-00

Unavailable

32

NUT, NYLON

9572R-10300-00

Unavailable

33

. PACKING 1

F2C-U375E-00-00

Unavailable

34

BOLT

F2C-U2624-30-00

Unavailable

35

NUT

9538R-08600-00

Unavailable

36

WASHER

9299R-08200-00

Unavailable

37

BEAM, DECK 1

F2C-U8952-11-00

Unavailable

38

PIN

F1B-U3774-00-00

Unavailable

39

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

40

PACKING 1

F0X-6375E-00-00

Unavailable

41

WASHER

9299R-10200-00

Unavailable

42

NUT, NYLON

9572R-10300-00

Unavailable

43

CASE,ASSY 1

F2C-U591A-03-00

Unavailable

44

. CAP,CASE

F2C-U591C-00-00

Unavailable

45

. PACKING,CASE

F2C-U591D-01-00

Unavailable

46

. PACKING,6

F2C-U266E-00-00

Unavailable

47

PLATE A

F2C-U4953-00-00

Unavailable

48

NUT, NYLON

9572R-10300-00

Unavailable

49

SKI TOWS

F2C-U1629-00-00

Unavailable

50

GRIP, HAND

F2C-U271B-00-00

Unavailable

51

BOLT

F2C-U2624-30-00

Unavailable

52

. SEAL 1

F2R-U884B-00-00

Unavailable
