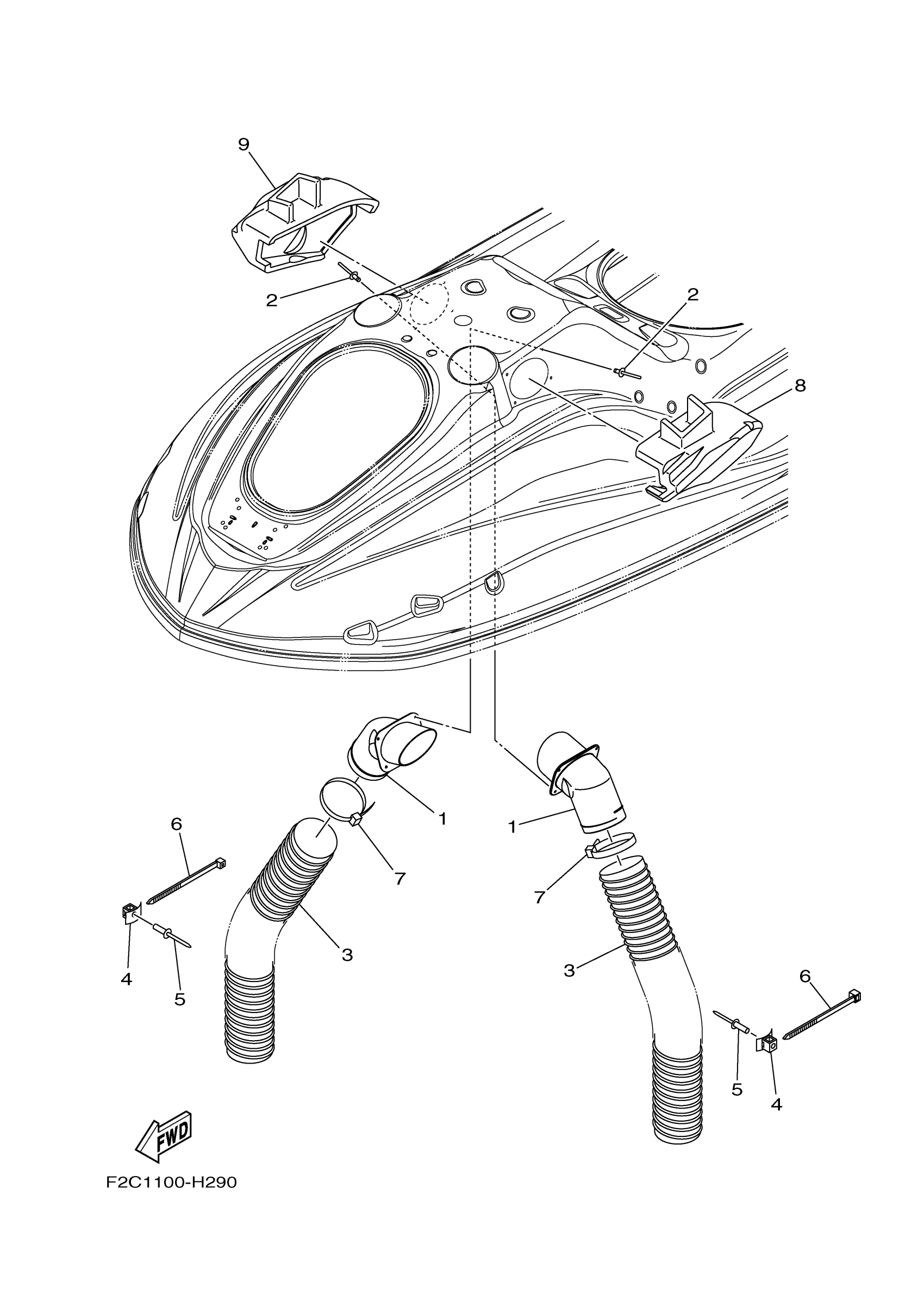

Yamaha GX1800AHR (WAVERUNNER FZS) F2C10 2009 VENTILATION Diagram

#

Description
Price

1

BASE, AIR INTAKE

F1W-U2127-01-00

$12.86

2

RIVET, BLIND

90267-48806-00

$2.00

3

HOSE, VENTILATOR 2

F0X-U213G-01-00

Unavailable

4

CLAMP COMP (EU0)

90600-91736-00

$6.22

5

RIVET, BLIND

90267-489U6-00

$1.37

6

CLAMP

90464-99804-00

$4.17

7

BAND

90601-200U7-00

$3.11

8

BOX, INDUCTION 1 (LH)

F2C-U2187-00-00

Unavailable

9

BOX, INDUCTION 2 (RH)

F2C-U2188-00-00

Unavailable
