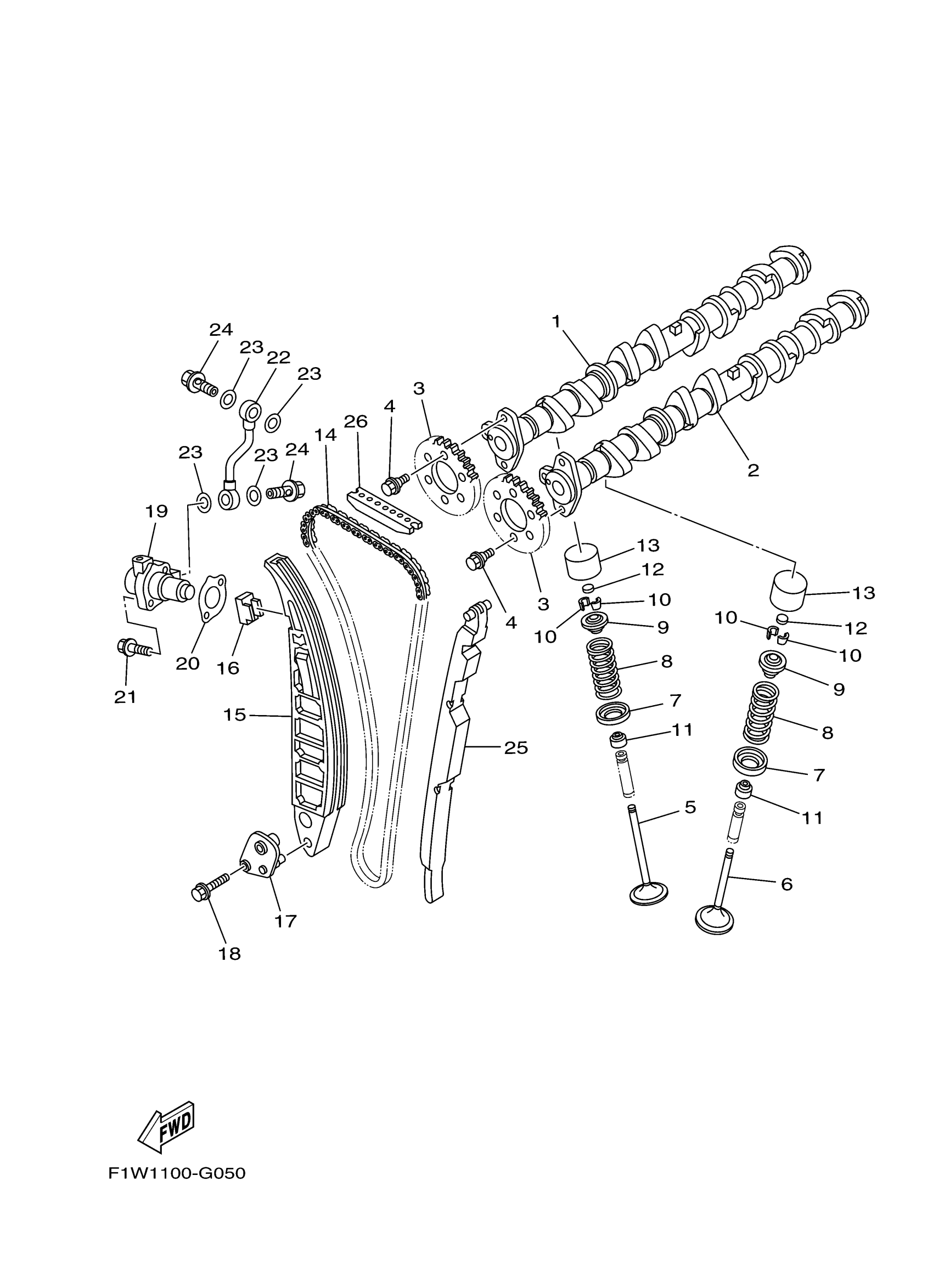

Yamaha GX1800AHR (WAVERUNNER FZS) F2C10 2009 VALVE Diagram

#

Description
Price

1

CAMSHAFT 1

99999-04087-00

$484.83

2

CAMSHAFT 2

99999-04088-00

$486.35

3

SPROCKET, CAM CHAIN

6D3-12176-00-00

$81.80

4

BOLT, FLANGE

90105-07004-00

$4.66

5

VALVE, INTAKE

6S5-12111-01-00

Unavailable

6

VALVE, EXHAUST

6S5-12121-00-00

$54.53

7

SEAT, VALVE SPRING

6S5-12116-00-00

$2.80

8

SPRING, VALVE INNER

6S5-12113-00-00

$11.48

9

RETAINER, VALVE SPRING

6S5-12117-00-00

$5.91

10

COTTER, VALVE

3LD-12118-00-00

$2.19

11

SEAL, VALVE STEM

51Y-12119-00-00

$4.08

12

PAD, ADJUSTING

3LD-12168-00-00

$14.64

12

PAD, ADJUSTING

3LD-12168-20-00

$10.44

12

PAD, ADJUSTING

3LD-12168-40-00

$15.59

12

PAD, ADJUSTING (1.35)

3LD-12168-60-00

$10.03

12

PAD, ADJUSTING (1.40)

3LD-12168-80-00

$13.94

12

PAD, ADJUSTING (1.45)

3LD-12168-A0-00

$9.41

12

PAD, ADJUSTING (1.50)

3LD-12168-F0-00

$13.23

12

PAD, ADJUSTING (1.55)

3LD-12168-H1-00

$14.23

12

PAD, ADJUSTING (1.60)

3LD-12168-K1-00

$10.56

12

PAD, ADJUSTING (1.65)

3LD-12168-M1-00

$10.89

12

PAD, ADJUSTING

3LD-12168-R1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-U1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-W1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-Y1-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-11-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-31-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-50-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-70-00

Unavailable

12

PAD, ADJUSTING (2.10)

3LD-12169-90-00

$14.14

12

PAD, ADJUSTING (2.15)

3LD-12169-E0-00

$14.06

12

PAD, ADJUSTING

3LD-12169-G0-00

Unavailable

12

PAD, ADJUSTING (2.25)

3LD-12169-J0-00

$10.03

12

PAD, ADJUSTING

3LD-12169-L0-00

Unavailable

13

LIFTER, VALVE

6S5-12153-00-00

$22.19

14

CHAIN

94591-66152-00

$46.30

15

DAMPER, CHAIN 2

6S5-12252-00-00

$178.77

16

CAP, TENSIONER CASE

6S5-12215-00-00

$5.91

17

PLATE

6S5-12279-00-00

$104.53

18

BOLT, FLANGE

95814-06030-00

$2.56

19

TENSIONER ASSY, CA

6S5-12210-02-00

$218.03

20

. GASKET

6S5-121E2-00-00

$2.80

21

BOLT,SOCKET

91380-06025-00

Unavailable

22

PIPE, OIL 2

6S5-13418-00-00

$57.49

23

. GASKET

90430-10007-00

$3.60

24

BOLT, UNION

90401-10040-00

$7.40

25

DAMPER, CHAIN 1

6S5-12251-00-00

$112.11

26

GUIDE, STOPPER 2

6S5-12241-00-00

$60.49
