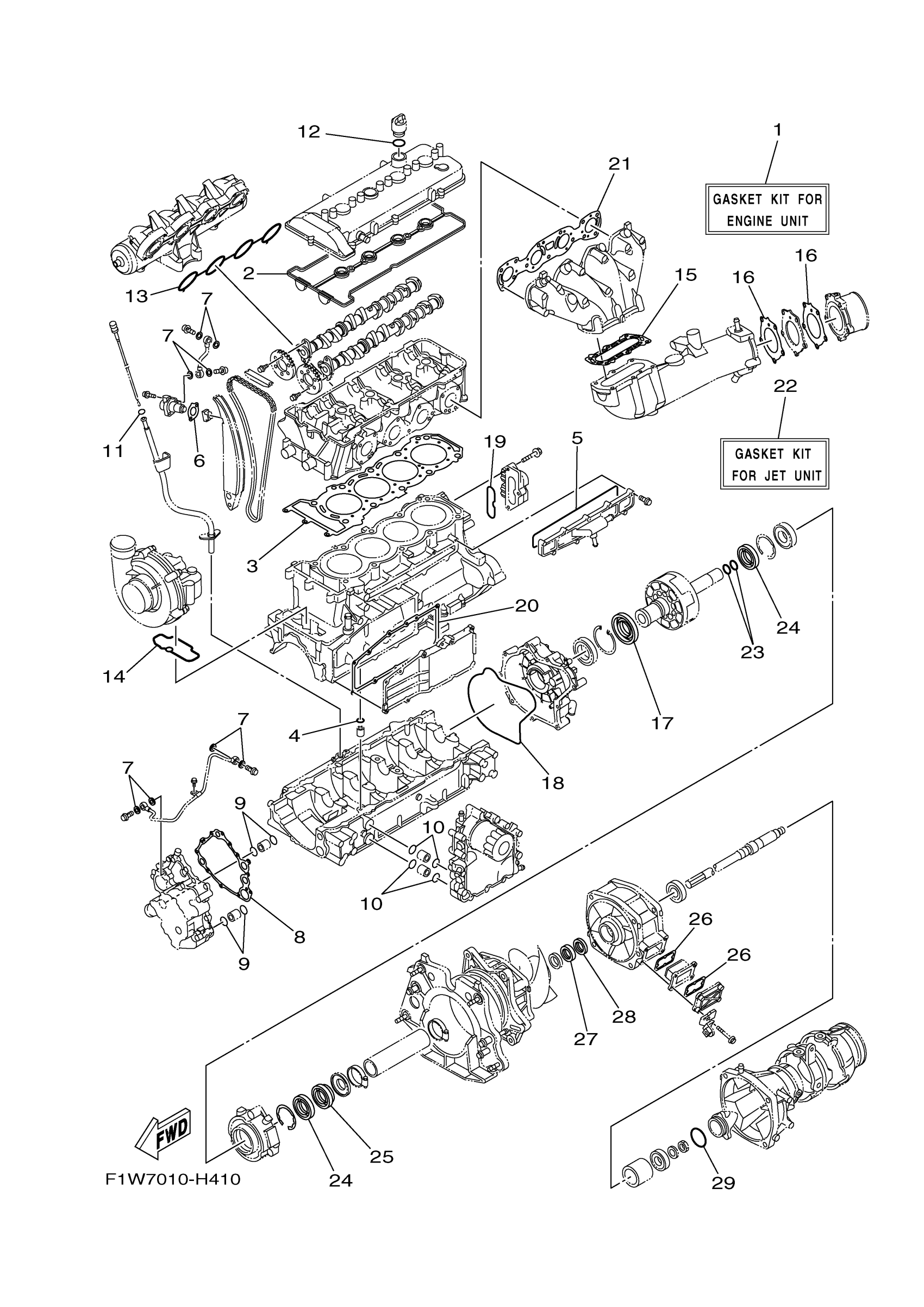

Yamaha GX1800AHR (WAVERUNNER FZS) F2C10 2009 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

6S5-W0001-02-00

$371.20

2

. GASKET, HEAD COVER 1

6S5-11193-00-00

$57.49

3

. GASKET, CYLINDER HEAD 1

6S5-11181-00-00

$126.44

4

O-RING (4G0)

93210-11453-00

$5.47

5

. GASKET, WATER INLET

6S5-12517-01-00

$21.32

6

. GASKET

6S5-121E2-00-00

$2.80

7

. GASKET

90430-10007-00

$3.60

8

. GASKET

6S5-13563-00-00

$10.74

9

O-RING (26H)

93210-21631-00

$5.99

10

O-RING (1L9)

93210-18322-00

$4.24

11

O-RING(3LD)

93210-12790-00

$5.37

12

O-RING (437)

93210-24235-00

$5.34

13

. GASKET, MANIFOLD 1

6S5-13645-00-00

$172.71

14

. O-RING

6S5-1416A-00-00

$8.51

15

. GASKET, MUFFLER DAMPER 1

6S5-14739-00-00

$22.22

16

. GASKET, MUFFLER DAMPER 2

6S5-14749-00-00

$18.15

17

OIL SEAL

6LE-81167-00-00

Unavailable

18

. O-RING

6S5-81168-00-00

$32.18

19

O-RING

93210-60ME8-00

$9.99

20

. GASKET

6S5-13557-00-00

$40.89

21

. GASKET, EXHAUST PIPE

6S5-14613-00-00

$35.93

22

GASKET KIT FOR JET UNIT

6S5-W0001-20-00

$145.44

23

O-RING(6U1)

93210-22MF1-00

Unavailable

24

. OIL SEAL

93102-29008-00

$22.22

25

OIL SEAL

93102-29009-00

$54.53

26

. O-RING

66V-42414-00-00

$5.18

27

. OIL SEAL

93102-31009-00

$80.29

28

. OIL SEAL

93101-31001-00

$32.99

29

O-RING

93210-54010-00

$2.64
