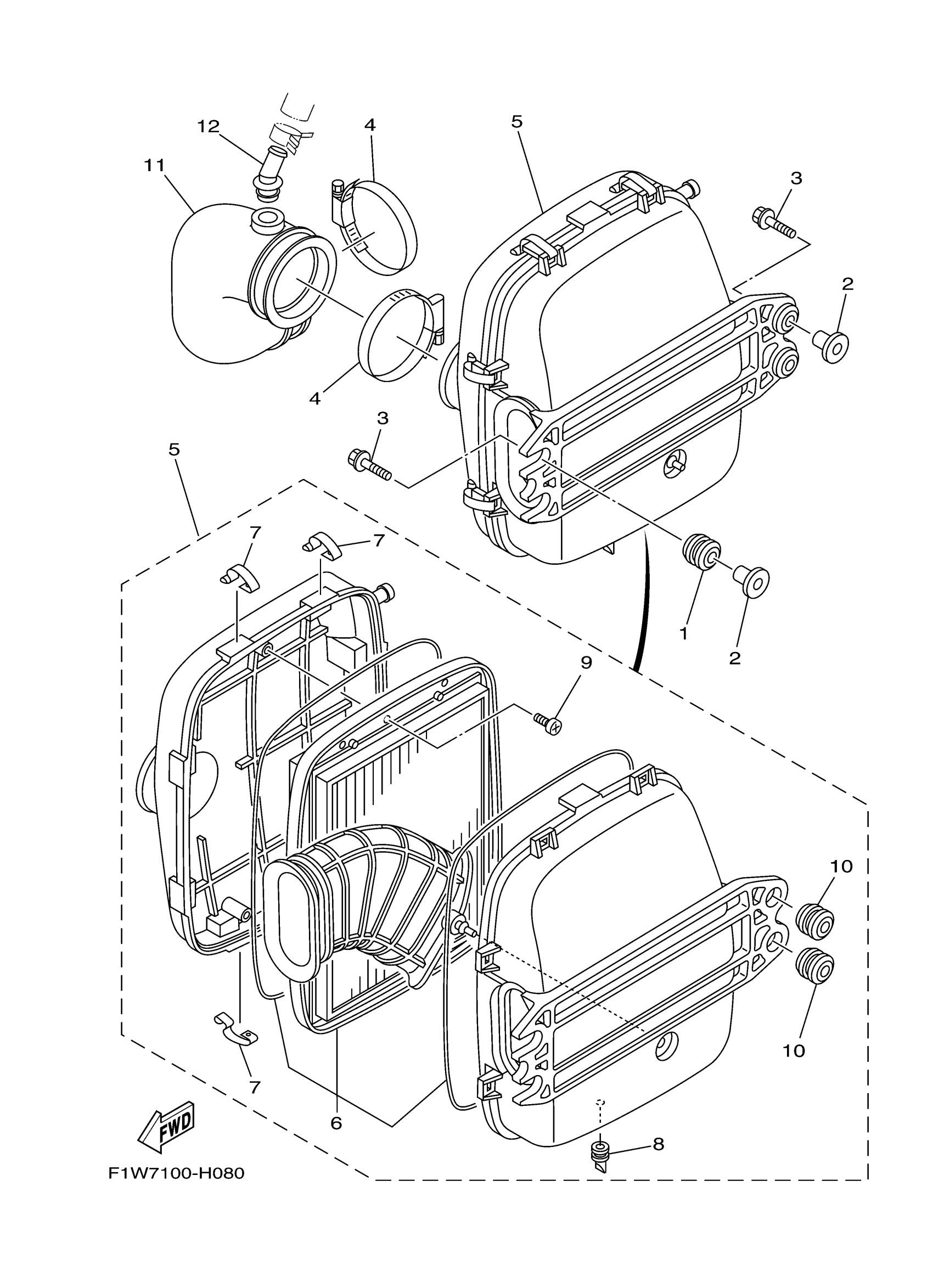

Yamaha GX1800AHR (WAVERUNNER FZS) F2C10 2009 INTAKE 3 Diagram

#

Description
Price

1

GROMMET

90480-22M15-00

$11.01

2

COLLAR

90387-08M37-00

$9.68

3

BOLT, WITH WASHER

90119-08187-00

$2.82

4

CLAMP, HOSE

90460-90M11-00

$55.87

5

AIR CLEANER ASSY.

6S5-E4410-02-00

$169.10

6

ELEMENT, AIR CLEAN

6S5-E4451-01-00

$173.77

7

. HOOK

6S5-E4436-00-00

$4.01

8

. RUBBER, SEAL 2

6S5-G2717-00-00

$2.50

9

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

10

. GROMMET

90480-22801-00

$2.65

11

PIPE

6S5-E4419-00-00

$73.25

12

CONNECTION

6S5-R1142-00-00

$107.34
