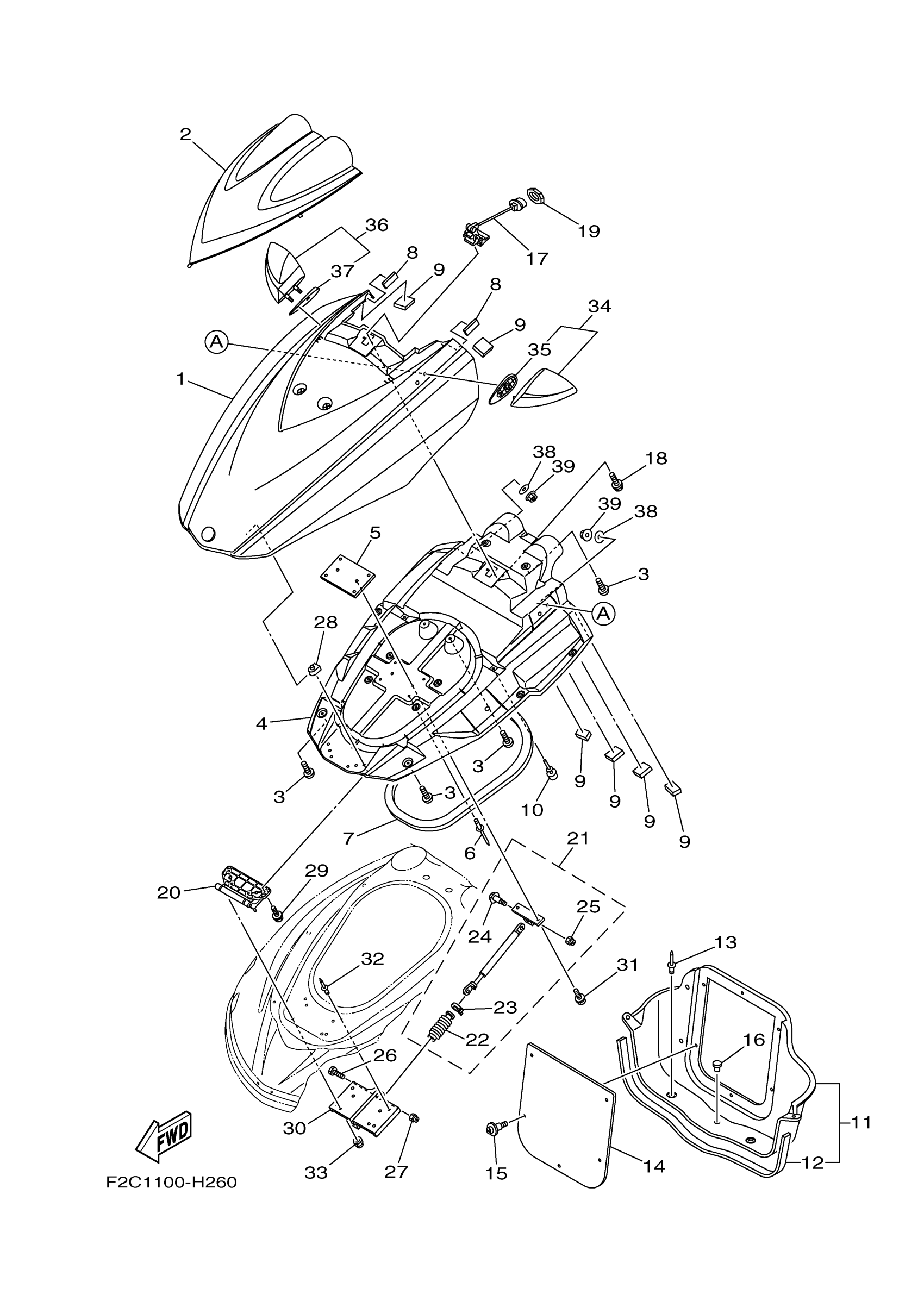

Yamaha GX1800AHR (WAVERUNNER FZS) F2C10 2009 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM

F2C-U517B-01-P0

Unavailable

1

LID,ENGINE HATCH

F2C-U517B-02-P1

Unavailable

2

VISOR

F2C-U515N-01-P1

$151.50

3

SCREW(GH1)

90149-05903-00

$2.31

4

COVER, VENTILATOR 1

F2C-U213B-01-00

Unavailable

5

PLATE, HATCH

F1W-U5148-00-00

$15.07

6

RIVET, BLIND

90267-48807-00

$2.07

7

PACKING 1

F1K-U2663-01-00

$27.26

8

. PACKING 3

F1K-U266B-00-00

$1.15

9

PACKING

F2C-U1743-00-00

$1.87

10

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

11

LOCKER,BOW

F2C-U475B-00-00

$43.92

12

PACKING 4

F2C-U266C-00-00

$7.35

13

RIVET, 1

F3J-U516R-00-00

$2.36

14

PLATE, LOKER BOW

F1W-U475F-01-00

$12.91

15

RIVET

90269-08801-00

$0.83

16

. PLUG, BLIND

90605-502U1-00

$2.16

17

LOCK, LID

F2C-U517C-01-00

$40.19

18

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

19

PACKING

F2C-U518D-00-00

Unavailable

20

HINGE, LID

F2C-U517D-00-00

$81.80

21

DAMPER ASSY

F2C-6514S-00-00

$254.53

22

. COVER, DAMPER

F1W-6514T-00-00

$23.99

23

BAND

1UA-82591-00-00

Unavailable

24

BOLT

90109-06218-00

$10.49

25

NUT, SELF-LOCKING

95720-06300-00

$1.82

26

BOLT

90109-06218-00

$10.49

27

NUT, NYLON

9572R-06300-00

$2.80

28

NUT, SPRING(GJ3)

90183-06902-00

Unavailable

29

BOLT, WITH WASHER

90119-06896-00

$5.03

30

PLATE, HINGE LID

F1W-U518E-02-00

$54.53

31

BOLT, WITH WASHER

90119-06830-00

Unavailable

32

RIVET, BLIND

90267-48020-00

$7.27

33

NUT, NYLON

9572R-06300-00

$2.80

34

MIRROR LH

F2C-U596B-00-00

$47.39

35

. SPACER 1

F2C-U471E-00-00

$2.80

36

MIRROR RH

F2C-U596C-00-00

$47.39

37

. SPACER 2

F2C-U471F-00-00

$2.80

38

WASHER

9299R-08200-00

Unavailable

39

NUT, NYLON (6J8)

95780-08300-00

$10.55
