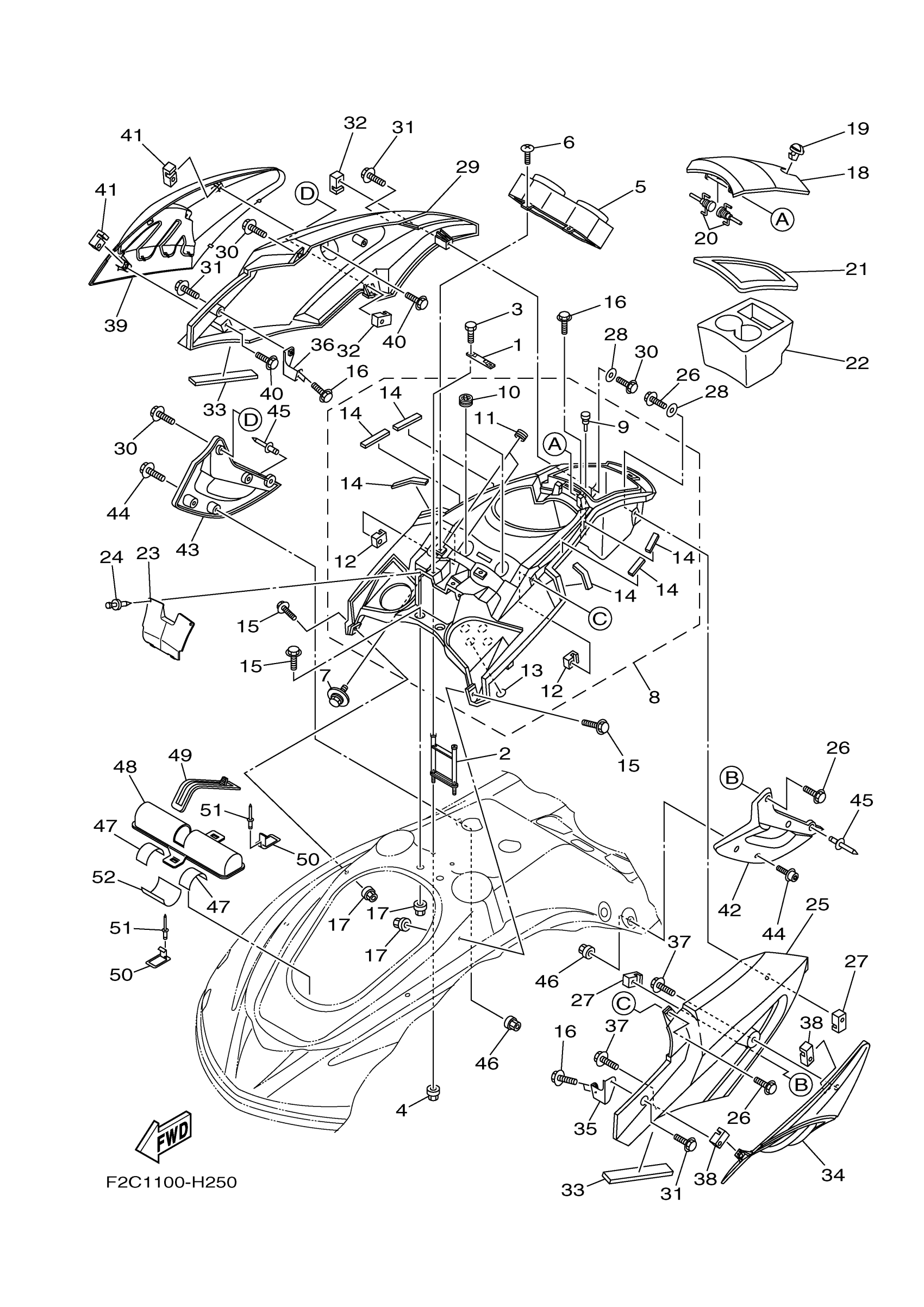

Yamaha GX1800AHR (WAVERUNNER FZS) F2C10 2009 ENGINE HATCH 1 Diagram

#

Description
Price

1

HOOK,LID LOCK

F1W-U517F-00-00

$2.80

2

BRKT., COVER CENTER 1

F1W-U555D-02-00

$42.41

3

BOLT

90101-05800-00

$1.44

4

NUT, SELF-LOCKING

90185-06014-00

$5.91

5

METER COVER ASSY.

F2C-U82AA-00-00

$69.68

6

SCREW(GH1)

90149-05903-00

$2.31

7

BOLT, WITH WASHER

90119-05803-00

$4.01

8

CENTER COVER ASSY.

F2C-U5508-02-00

$393.92

9

. PLUG

90605-502U2-00

$2.42

10

. DAMPER 1

F1X-U828E-01-00

$2.27

11

. GROMMET

90480-19800-00

$11.48

12

NUT

F1X-U517E-01-00

$7.11

13

. SEAL 1

F2R-U884B-00-00

$0.83

14

DAMPER 2

F0X-U515E-02-00

$0.98

15

BOLT, WITH WASHER

90119-06880-00

$3.52

16

BOLT, WITH WASHER

90119-06878-00

$3.43

17

NUT, SELF-LOCKING

90185-06014-00

$5.91

18

LID HATCH

F2C-U517H-01-00

$20.74

19

LOCK

GU2-62875-02-00

$36.31

20

PIN, HINGE

F1B-6517R-00-00

$5.55

21

PACKING CASE

F2C-U519D-01-00

Unavailable

22

HOLDER, DRINK

F2C-U5633-00-00

$22.71

23

SEAL, COVER CENTER

F1W-U555B-00-00

$5.30

24

RIVET

F1W-U2698-00-00

$1.80

25

COVER,SIDE 1

F2C-U377B-02-P0

Unavailable

26

BOLT, WITH WASHER

90119-06880-00

$3.52

27

NUT

F1X-U517E-01-00

$7.11

28

. WASHER, PLATE

90201-068G7-00

$0.98

29

COVER,SIDE 2 (BMG)

F2C-U377C-02-P0

$118.17

30

BOLT, WITH WASHER

90119-06880-00

$3.52

31

BOLT, WITH WASHER

90119-06878-00

$3.43

32

NUT

F1X-U517E-01-00

$7.11

33

DAMPER 1

F2C-U515D-00-00

$1.87

34

ORNAMENT, LH

F2C-U517W-00-00

$186.35

35

BRKT., COVER SIDE 1

F2C-U377M-00-00

$13.46

36

BRKT, COVER SIDE 2

F2C-U377N-00-00

$21.95

37

BOLT, WITH WASHER

90119-06880-00

$3.52

38

NUT

F1X-U517E-01-00

$7.11

39

ORNAMENT, RH

F2C-U517X-00-00

$193.92

40

BOLT, WITH WASHER

90119-06880-00

$3.52

41

NUT

F1X-U517E-01-00

$7.11

42

PAD, KNEE

F2C-U353B-20-00

$13.63

43

PAD, KNEE

F2C-U353B-30-00

$15.14

44

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

45

RIVET, BLIND

90267-48807-00

$2.07

46

NUT, SELF-LOCKING

90185-06014-00

$5.91

47

MAT 2

F1K-U759C-00-00

$1.72

48

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$17.94

49

BAND 1

F2P-U828K-00-00

$5.87

50

HOOK A

F1K-U5772-01-00

Unavailable

51

RIVET (EU0)

90267-48938-00

$5.00

52

PAD, BATTERY

F1S-U8221-00-00

$2.75
