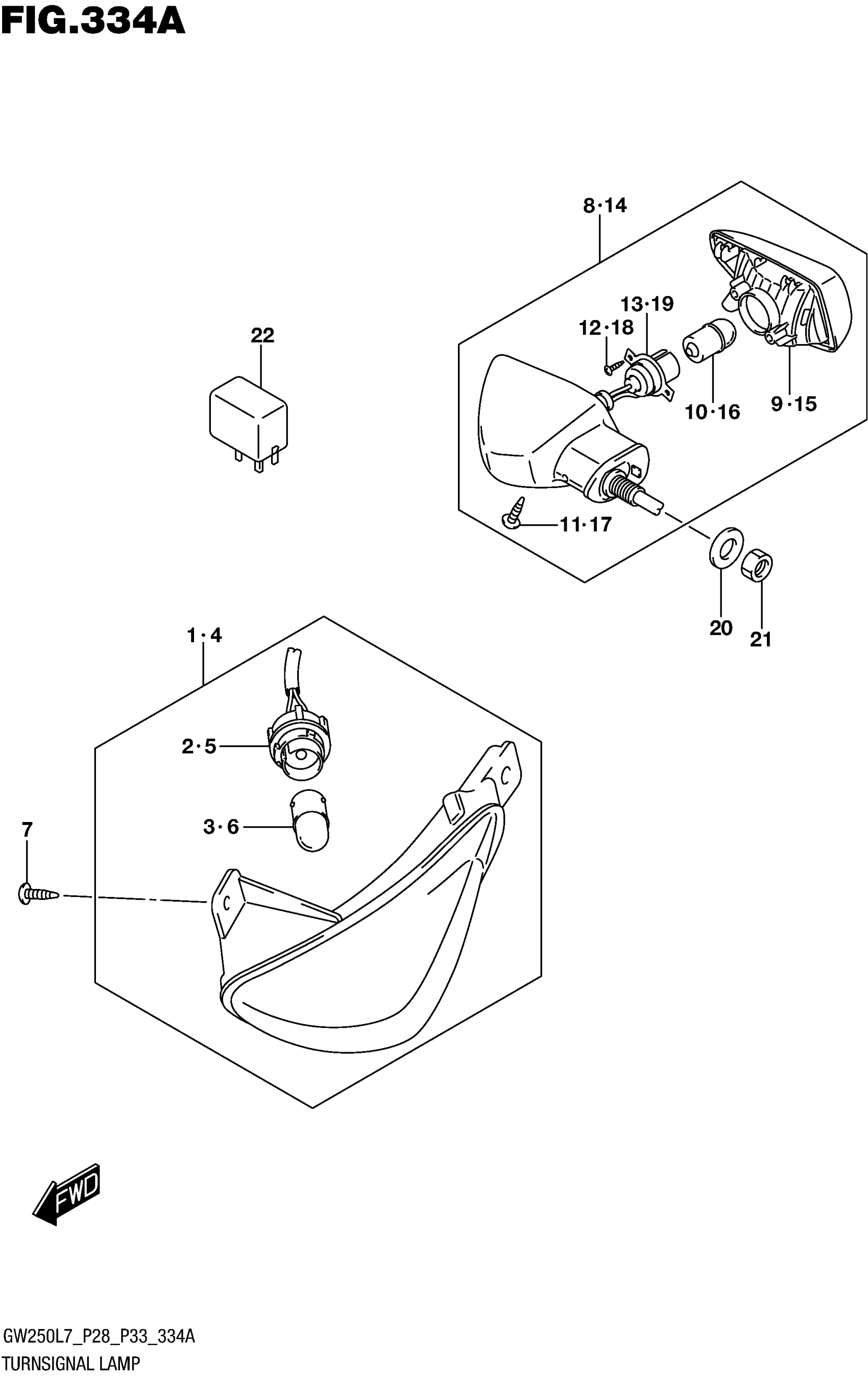

Suzuki GW250L7 (2017) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-48H30

$118.13

2

.CORD

35618-48H00

$13.42

3

.BULB (12V,10W)

09471-12226

$6.33

4

LAMP ASSY, FRONT TURNSIGNAL L

35602-48H30

$118.13

5

.CORD

35638-48H00

Unavailable

6

.BULB (12V,10W)

09471-12226

$6.33

7

SCREW

03541-0516A

$1.49

8

LAMP ASSY, REAR TURNSIGNAL RH

35603-48H03

$55.88

9

.LAMP UNIT RH

35650-48H01

$32.97

10

.BULB (12V,10W)

09471-12226

$6.33

11

.SCREW

03241-0412A

Unavailable

12

.SCREW

35623-48H00

$2.70

13

.CORD RH

35658-48H00

Unavailable

14

LAMP ASSY, REAR TURNSIGNAL LH

35604-48H03

$55.88

15

.LAMP UNIT LH

35670-48H01

$32.97

16

.BULB (12V,10W)

09471-12226

$6.33

17

.SCREW

03241-0412A

Unavailable

18

.SCREW

35623-48H00

$2.70

19

.CORD LH

35678-48H00

Unavailable

20

WASHER, REAR TURNSIGNAL LAMP

35679-48H00

$3.15

21

NUT

08310-0010A

$1.84

22

RELAY ASSY,TURN This part replaces 38610-26H02.

38610-26H03

$21.23
