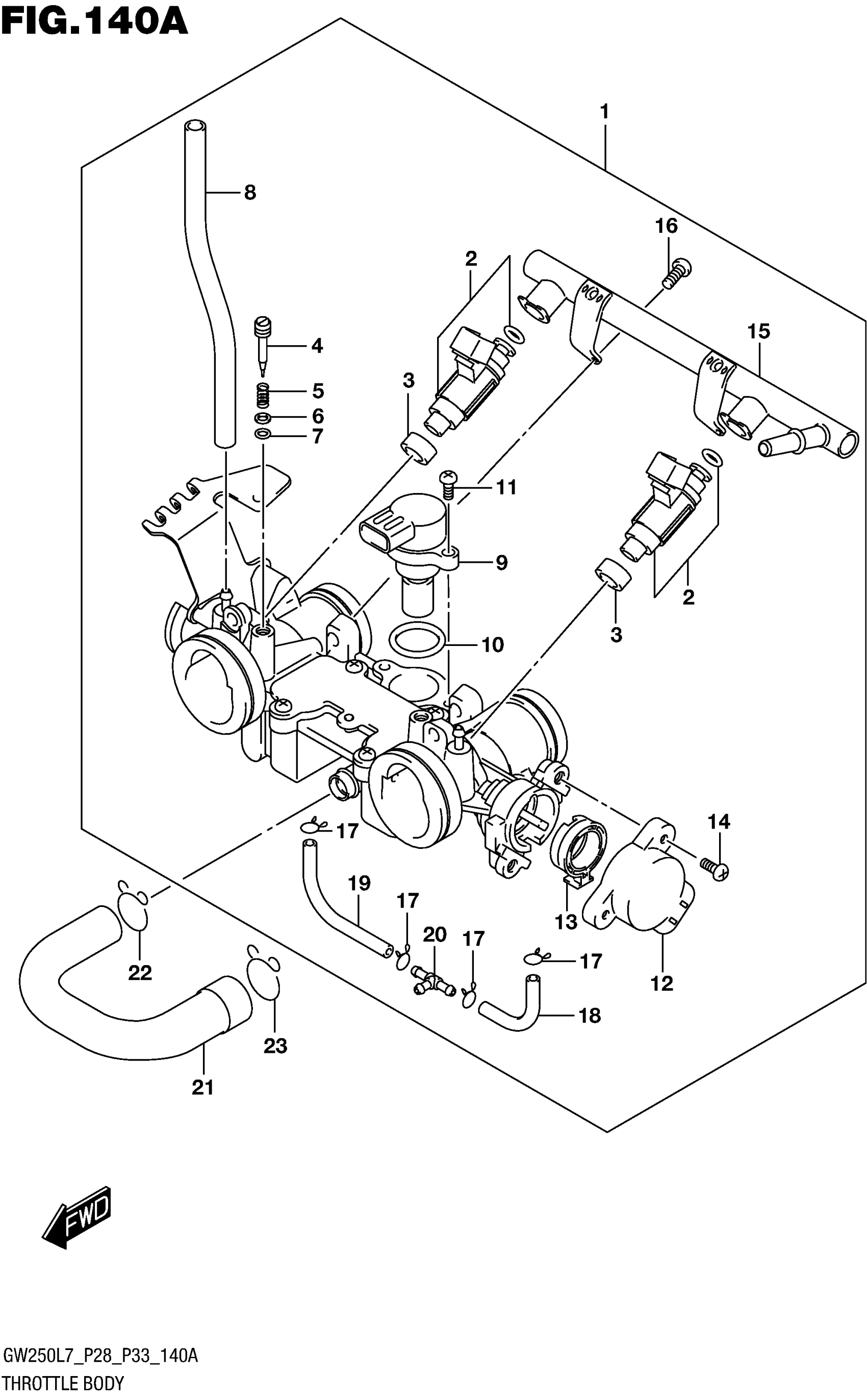

Suzuki GW250L7 (2017) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13400-48H20

$1,002.97

2

.INJECTOR ASSY

15710-48H00

Unavailable

3

SEAL

15722-29G00

$10.93

4

.ADJUSTER

13279-13G10

Unavailable

5

SPRING,THROTTLE SCREW

13268-48700

$4.34

6

WASHER

13606-47A00

$3.28

7

O-RING This part replaces 13295-29900.

13295-29901

$4.34

8

.HOSE

13681-39F00-175

$11.30

9

.MOTOR ASSY

18117-14J01

$392.00

10

.O RING

13679-37H00

$7.27

11

SCREW This part replaces 13602-05A40.

02112-0412A

$1.49

12

.SENSOR ASSY This part replaces 13580-48H00.

13580-48H01

$103.58

13

.RING

13311-48H00

Unavailable

14

.SCREW

13605-02F00

$3.71

15

.DELIVERLY PIPE

15730-48H00

Unavailable

16

.SCREW

13602-06148

$3.62

17

CLIP

13671-29G00

Unavailable

18

.HOSE

13683-48H20

Unavailable

19

.HOSE

13683-48H30

Unavailable

20

NIPPLE

13685-29G00

Unavailable

21

HOSE,ISC VALVE

13697-48H00

Unavailable

22

CLIP

09401-15101

$2.26

23

CLIP

09401-18101

Unavailable
