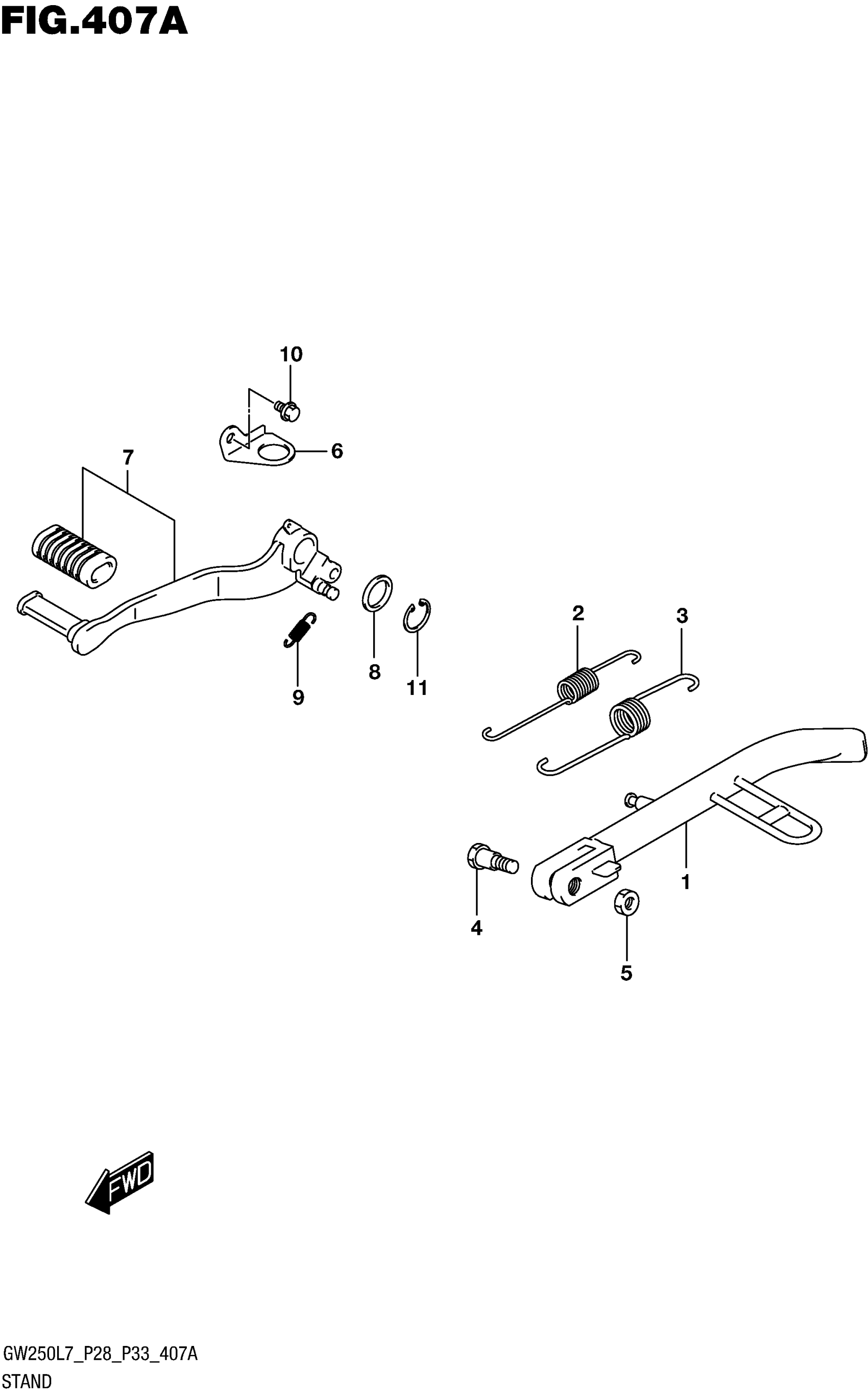

Suzuki GW250L7 (2017) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-48H10

Unavailable

2

SPRING,PROP STAND

42423-48H00

$6.40

3

SPRING,PROP STAND OUTER

42424-48H00

$6.40

4

BOLT (10X38)

09111-10036

$4.82

5

NUT

42321-48H00

$2.38

6

BRACKET, STOP LAMP SWITCH

41577-48H00

Unavailable

7

PEDAL SET, BRAKE

43100-48810

$90.47

8

WASHER (18X24X1)

09160-18040

Unavailable

9

SPRING

09443-11033

$4.50

10

BOLT

01550-0508A

Unavailable

11

CIRCLIP

08331-3118A

$2.13
