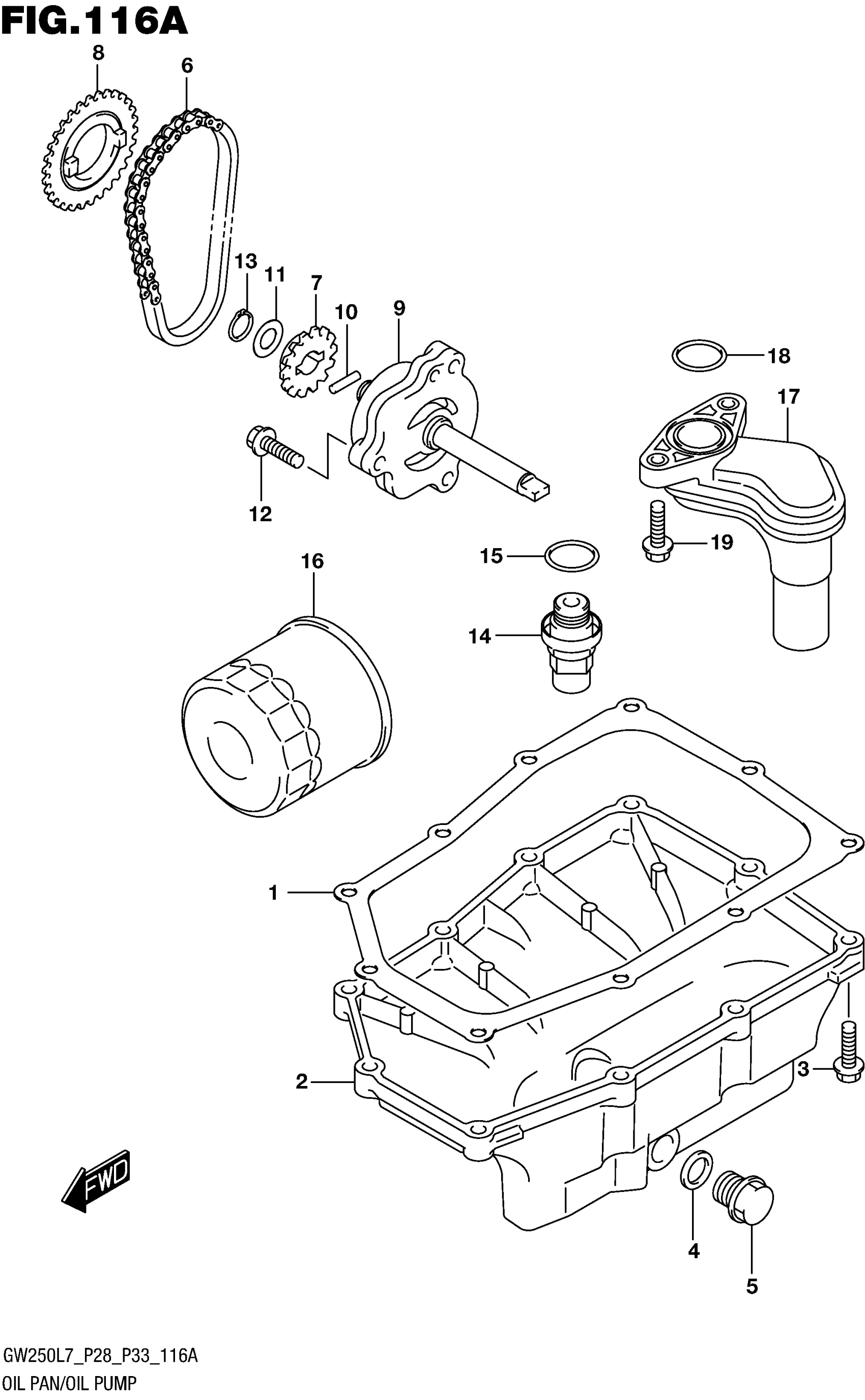

Suzuki GW250L7 (2017) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

GASKET, OIL PAN

11489-48H00

$28.60

2

PAN,OIL

11511-48H00

$62.72

3

BOLT

01547-0625A

$2.01

4

GASKET (14X18.3X4.8)

09168-14L01

$1.49

5

PLUG (14X12) | OIL DRAIN

09247-14043

$3.58

6

CHAIN,OIL PUMP DRIVE

16310-48H00

Unavailable

7

SPROCKET, OIL PUMP DRIVE

16321-48H00

Unavailable

7

(NT:29)

16321-48H00

Unavailable

8

SPROCKET, OIL PUMP DRIVEN

16331-48H00

Unavailable

8

(NT:15)

16331-48H00

Unavailable

9

PUMP ASSY, OIL

16400-48H00

Unavailable

10

PIN,OIL PUMP

16421-48H00

Unavailable

11

WASHER,PUMP DRIVEN GEAR THR

16422-48H00

$3.27

12

BOLT

01547-0625A

$2.01

13

CIRCLIP

08331-31109

$1.78

14

VALVE ASSY,OIL RELIEF

16440-48H00

Unavailable

15

GASKET (16X22X2)

09168-16010

$1.73

16

FILTER ASSY, ENGINE OIL

16510-07J00

$13.10

17

STRAINER,ENGINE OIL

16520-48H00

Unavailable

18

O-RING (D:2.4,ID22.8)

09280-23L01

$3.45

19

BOLT

01550-0625A

$1.97
