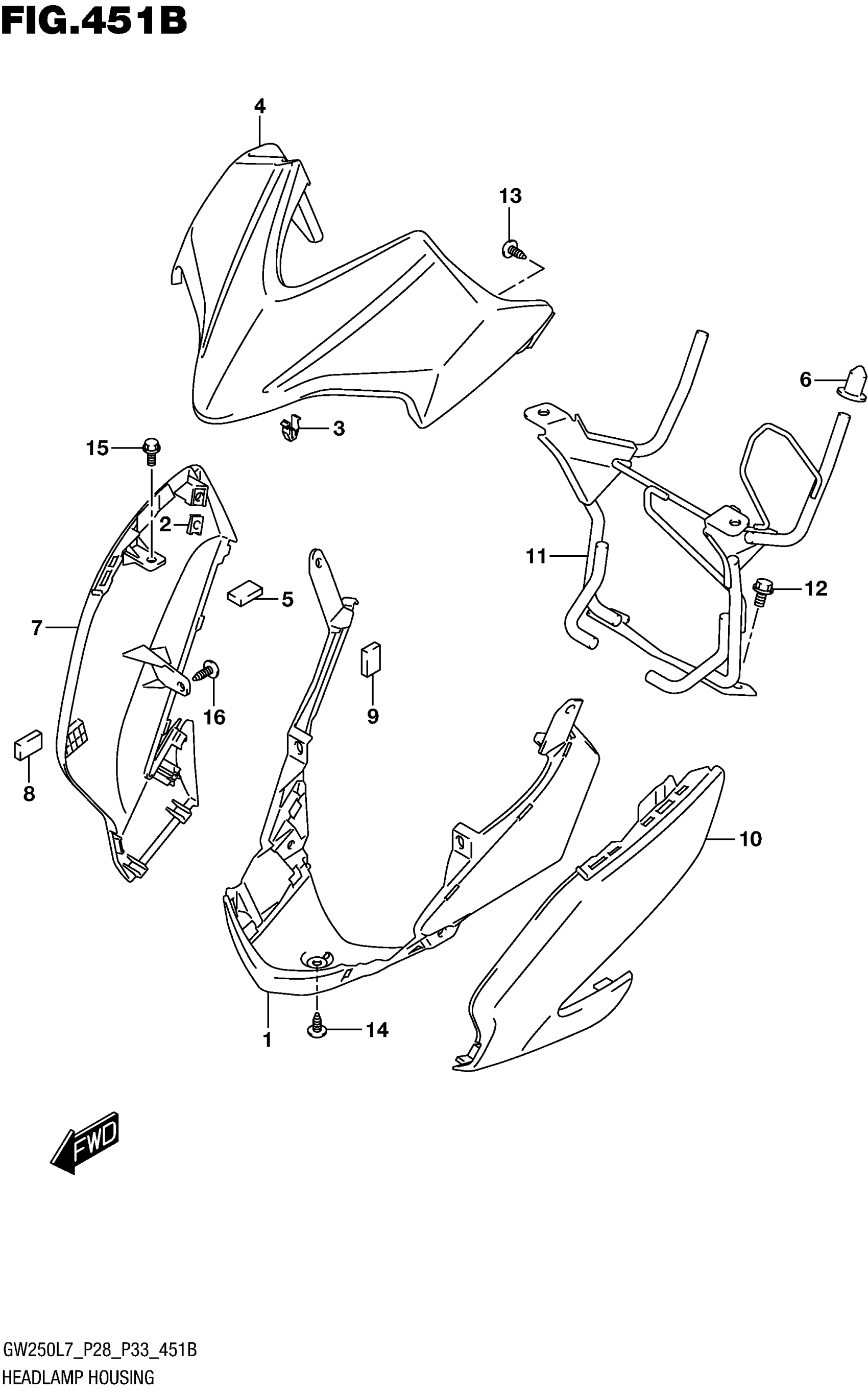

Suzuki GW250L7 (2017) HEADLAMP HOUSING (GW250ZL7 P28) Diagram

#

Description
Price

1

COVER, HEADLAMP LOWER

51811-48H00-FNF

Unavailable

1

(BLUE/BLACK)

51811-48H00-FNF

Unavailable

2

NUT, HEADLAMP SIDE

35157-48H00

Unavailable

3

CLIP, HEADLAMP UPPER

48291-32GH0

$2.70

4

COVER, HEADLAMP UPPER (BLUE)

51821-48H01-YSF

Unavailable

5

CUSHION, HEADLAMP UPPER

51822-48H00

$2.08

6

CUSHION,BRACE This part replaces 51827-48H00.

51827-48H01

$2.12

7

COVER, HEADLAMP SIDE RH

51831-48H00-YWW

Unavailable

7

(WHITE)

51831-48H00-YWW

Unavailable

8

CUSHION, HEADLAMP SIDE

51832-48H00

$2.70

9

CUSHION, HEADLAMP LOWER

51832-48H00

$2.70

10

COVER, HEADLAMP SIDE RH

51841-48H00-YWW

Unavailable

10

(WHITE)

51841-48H00-YWW

Unavailable

11

BRACE, HEADLAMP HOUSING

51850-48H10

$51.97

12

BOLT

01550-0612B

$2.39

13

SCREW

03541-0516B

$1.78

14

SCREW

03541-0516B

$1.78

15

SCREW

03541-0516B

$1.78

16

SCREW

03541-0520A

$1.80
