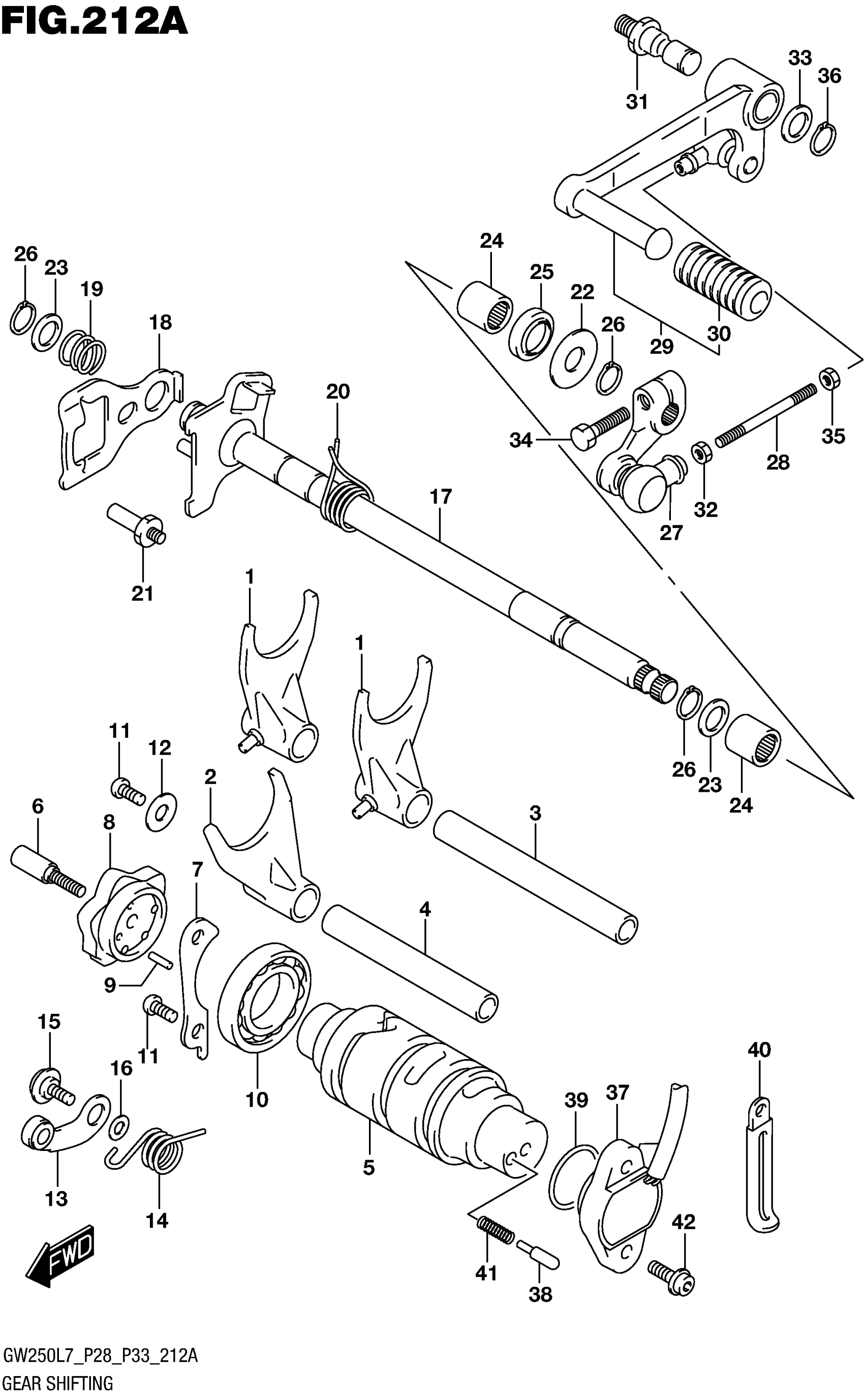

Suzuki GW250L7 (2017) GEAR SHIFTING Diagram

FORK,GEAR SHIFT NO.1

25211-48H00

Unavailable

FORK,GEAR SHIFT NO.2

25221-48H00

$12.15

SHAFT,GEAR SHIFT FORK NO.1

25411-48H00

$5.36

SHAFT,GEAR SHIFT FORK NO.2

25421-48H00

$4.24

CAM,GEAR SHIFT

25311-48H00

$41.88

STOPPER, SHIFT CAM DRIVE PLAT

25312-48H00

Unavailable

RETAINER,SHIFT CAM BRG NO.1

25341-48H00

$1.78

PLATE,GEAR SHIFT CAM This part replaces 25380-48H02.

25380-48H10

$11.73

PIN (3X9.8)

09261-03002

Unavailable

BEARING (25X47X8)

09262-25L01

$6.94

SCREW

02112-0612A

$1.43

WASHER

08211-06183

Unavailable

STOPPER,GEAR SHIFT CAM

25350-48H00

$5.66

SPRING, GEAR SHIFT CAM STOPPE

25355-48H00

$1.68

BOLT (6X14.5)

09106-06131

$2.58

WASHER

08211-06121

$1.56

SHAFT,GEAR SHIFT

25510-48H00

Unavailable

PLATE,GEAR SHIFT CAM DRIVE

25512-48H10

$8.57

SPRING,GEAR SHIFT PLATE RETUR

25515-48H01

$1.96

SPRING,SHIFT SHAFT RETURN

25518-48H00

Unavailable

STOPPER,GEAR SHIFT ARM

25671-16H10

Unavailable

WASHER (14X29X0.8)

09160-14069

Unavailable

WASHER (14X22X1)

09160-14070

Unavailable

BEARING (14X20X12) This part replaces 09263-14L01.

09263-14035

$8.12

SEAL,OIL (14X22X7.3)

09283-14L01

$5.02

CIRCLIP

08331-3114A

$1.89

ARM,GEAR SHIFT LINK

25520-48H20

$12.57

ROD, GEAR SHIFT LINK

25525-48H00

Unavailable

LEVER ASSY,GEAR SHIFT

25600-48H20

$97.32

.RUBBER, GEAR SHIFT PEDAL

25652-48H00

$9.48

SHAFT,GEAR SHIFT LEVER This part replaces 25617-03F20.

25617-03F80

$10.97

NUT

09140-06031

$2.35

WASHER (12.5X20X1)

09160-12011

$1.48

BOLT

01500-0620A

$1.77

NUT

08310-0006A

$1.83

CIRCLIP

08331-3112A

$1.77

BASE ASSY,GEAR SHIFT TERM This part replaces 37730-48H00.

37730-20K01

$17.86

PIN

09209-05024

Unavailable

O RING (D:2.4,ID:26.2)

09280-26005

$2.31

CLAMP This part replaces 09404-06206.

09404-06039

$1.73

SPRING

09440-04010

$1.52

BOLT

07120-0516B

$2.62
