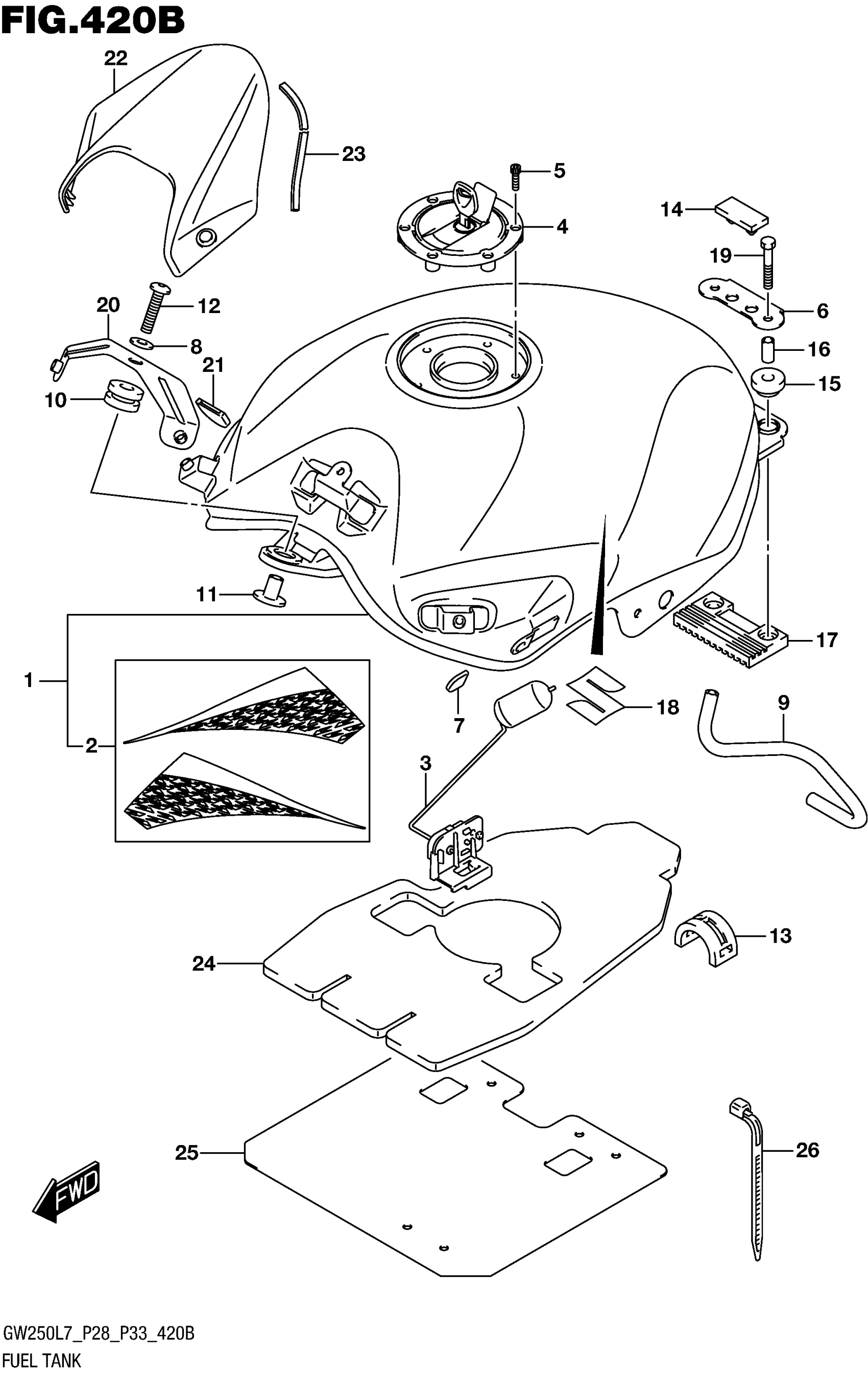

Suzuki GW250L7 (2017) FUEL TANK (GW250ZL7 P28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE/WHITE)

44100-48H61-AGQ

Unavailable

2

.TAPE SET, FUEL TANK

68110-48H01-AGQ

Unavailable

2

(BLUE/WHITE)

68110-48H01-AGQ

Unavailable

3

GAUGE ASSY,FUEL LEVEL SENDER

34810-48H01

$81.13

4

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

5

BOLT (5X20)

44211-48H00

$2.28

6

WASHER, REAR BRACKET

44146-48H00

Unavailable

7

CUSHION,FUEL TANK COVER

44276-48H00

$2.37

8

WASHER, FUEL TANK FRONT

44262-48H00

Unavailable

9

HOSE,FUEL TANK WATER DRAIN

44423-48H10

Unavailable

10

CUSHION, FUEL TANK FRONT

44511-48H00

Unavailable

11

SPACER, FUEL TANK FRONT

44512-48H00

Unavailable

12

SCREW, FUEL TANK FRONT

44513-48H00

Unavailable

13

CUSHION,FUEL TANK SIDE

44541-48H00

$5.63

14

CUSHION, REAR BRACKET

44542-48H00

$4.28

15

CUSHION, FUEL TANK REAR UPPER

44543-48H00

$2.93

16

SPACER,FUEL TANK RR

44544-48H00

Unavailable

17

CUSHION, FUEL TANK REAR LOWER

44545-48H00

Unavailable

18

EMBLEM, "S"

68111-47HA0

$40.44

19

BOLT

01500-0635A

$2.19

20

BRACKET, FUEL TANK COVER

44160-48H00

$6.88

21

CUSHION, TANK COVER BRACKET

44164-48H00

$2.60

22

COVER, FUEL TANK CENTER

44191-48H00-YSF

Unavailable

22

(BLUE)

44191-48H00-YSF

Unavailable

23

CUSHION, TANK COVER CENTER

44277-48H00

$4.03

24

SHIELD, FUEL TANK HEAT

44192-48H00

$17.12

25

SHIELD, FUEL TANK HEAT NO.2

44193-48H10

Unavailable

26

CLAMP

36990-32G10

$2.45

27

COLOR :

SPECIAL NOTE

Unavailable

27

AGQ=YSF(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable
