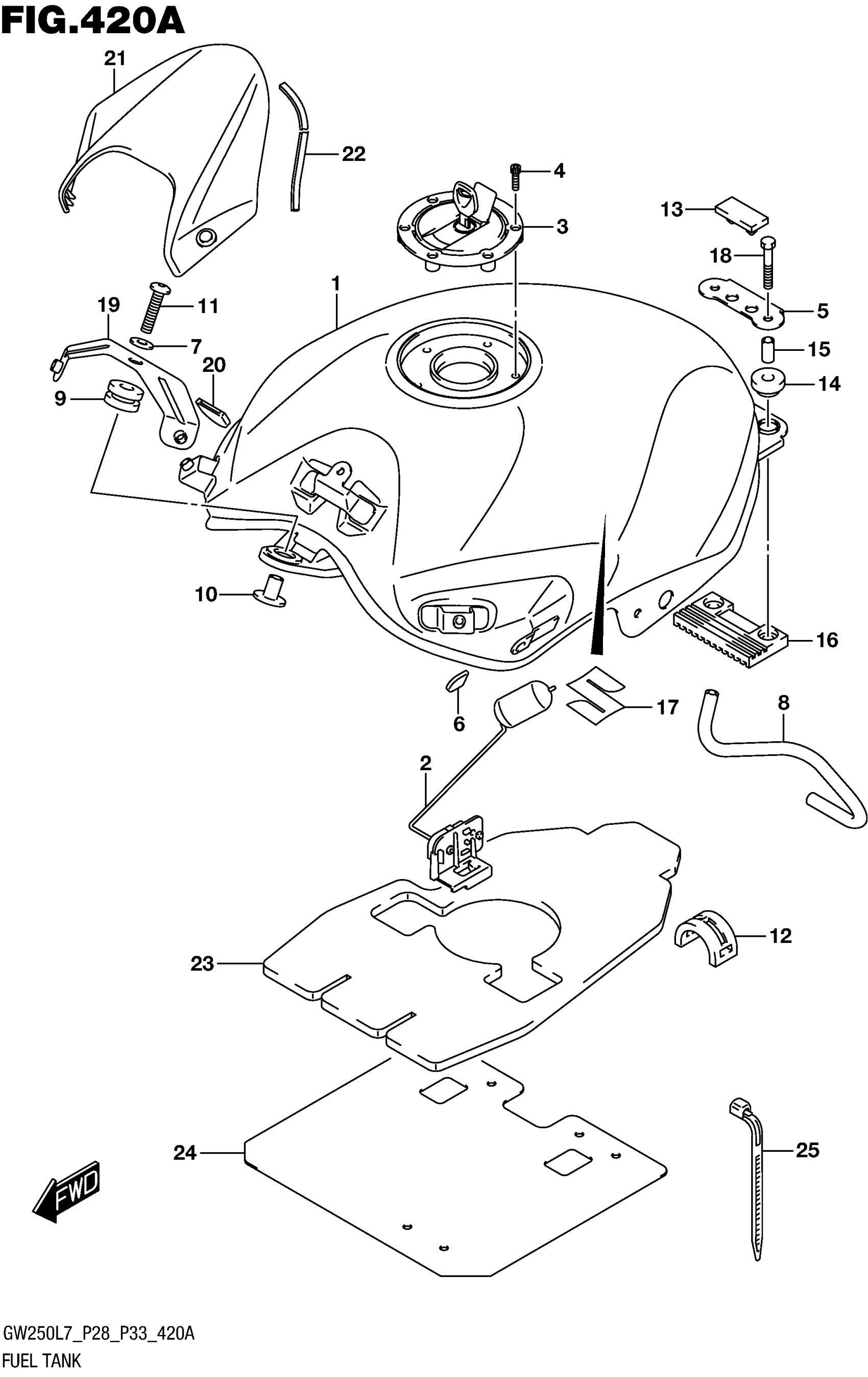

Suzuki GW250L7 (2017) FUEL TANK (GW250L7 P28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-48H10-YAY

$1,024.33

2

GAUGE ASSY,FUEL LEVEL SENDER

34810-48H01

$91.57

3

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$172.96

4

BOLT (5X20)

44211-48H00

$2.58

5

WASHER, REAR BRACKET

44146-48H00

Unavailable

6

CUSHION,FUEL TANK COVER

44276-48H00

$1.62

7

WASHER, FUEL TANK FRONT

44262-48H00

Unavailable

8

HOSE,FUEL TANK WATER DRAIN

44423-48H10

Unavailable

9

CUSHION, FUEL TANK FRONT

44511-48H00

Unavailable

10

SPACER, FUEL TANK FRONT

44512-48H00

Unavailable

11

SCREW, FUEL TANK FRONT

44513-48H00

Unavailable

12

CUSHION,FUEL TANK SIDE

44541-48H00

$6.35

13

CUSHION, REAR BRACKET

44542-48H00

$4.83

14

CUSHION, FUEL TANK REAR UPPER

44543-48H00

$3.30

15

SPACER,FUEL TANK RR

44544-48H00

Unavailable

16

CUSHION, FUEL TANK REAR LOWER

44545-48H00

Unavailable

17

EMBLEM, "S"

68111-47HA0

$37.02

18

BOLT

01500-0635A

$2.21

19

BRACKET, FUEL TANK COVER

44160-48H00

$7.77

20

CUSHION, TANK COVER BRACKET

44164-48H00

$2.95

21

COVER, FUEL TANK CENTER

44191-48H00-YMD

$69.70

21

(SILVER)

44191-48H00-YMD

$69.70

22

CUSHION, TANK COVER CENTER

44277-48H00

$4.57

23

SHIELD, FUEL TANK HEAT

44192-48H00

$19.32

24

SHIELD, FUEL TANK HEAT NO.2

44193-48H10

Unavailable

25

CLAMP

36990-32G10

$2.77
