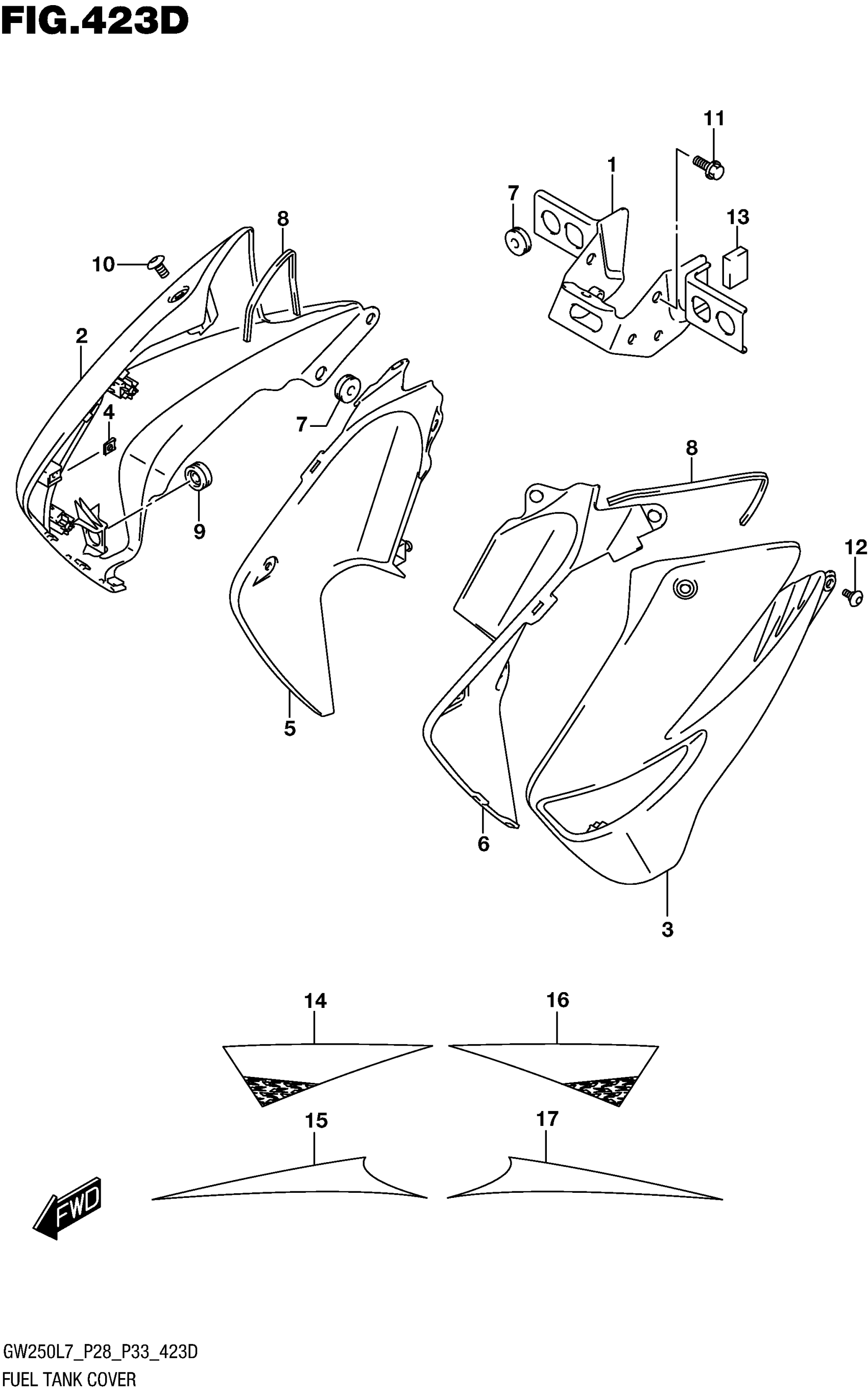

Suzuki GW250L7 (2017) FUEL TANK COVER (GW250ZL7 P33) Diagram

#

Description
Price

1

BRACKET, FRONT SIDE COVER

44150-48H00

Unavailable

2

COVER, FUEL TANK RH

44171-48H00-AY4

$418.60

2

(RED/BLACK)

44171-48H00-AY4

$418.60

3

COVER, FUEL TANK LH

44181-48H00-AY4

$418.60

3

(RED/BLACK)

44181-48H00-AY4

$418.60

4

NUT, FUEL TANK COVER

44261-48H00

Unavailable

5

COVER, FUEL TANK FRONT RH

44271-48H00

$22.00

6

COVER, FUEL TANK FR LH

44281-48H00

$22.00

7

CUSHION, FUEL TANK COVER

44274-48H00

$3.57

8

CUSHION, FUEL TANK COVER SIDE

44278-48H00

Unavailable

9

CUSHION, FUEL TANK COVER

44279-48H00

Unavailable

10

SCREW (6X10)

09139-06172

$2.80

11

BOLT

01550-0616B

$2.53

12

SCREW (6X12)

44514-48H00

$2.95

13

CUSHION, COVER BRACKET

44153-48H00

$3.05

14

TAPE,TANK COVER This part replaces 68115-48H00-AY4.

68115-48H01-AY4

$9.30

14

TAPE,TANK COVER This part replaces 68115-48H00-AY4.

68115-48H01-AY4

$9.30

15

TAPE, TANK COVER NO.2 RH

68116-48H00-AY4

$8.87

15

(RED/BLACK)

68116-48H00-AY4

$8.87

16

TAPE,TANK CVR N This part replaces 68125-48H00-AY4.

68125-48H01-AY4

$8.23

16

TAPE,TANK CVR N This part replaces 68125-48H00-AY4.

68125-48H01-AY4

$8.23

17

TAPE,TANK CVR N This part replaces 68126-48H00-AY4.

68126-48H01-AY4

$8.23

17

TAPE,TANK CVR N This part replaces 68126-48H00-AY4.

68126-48H01-AY4

$8.23
