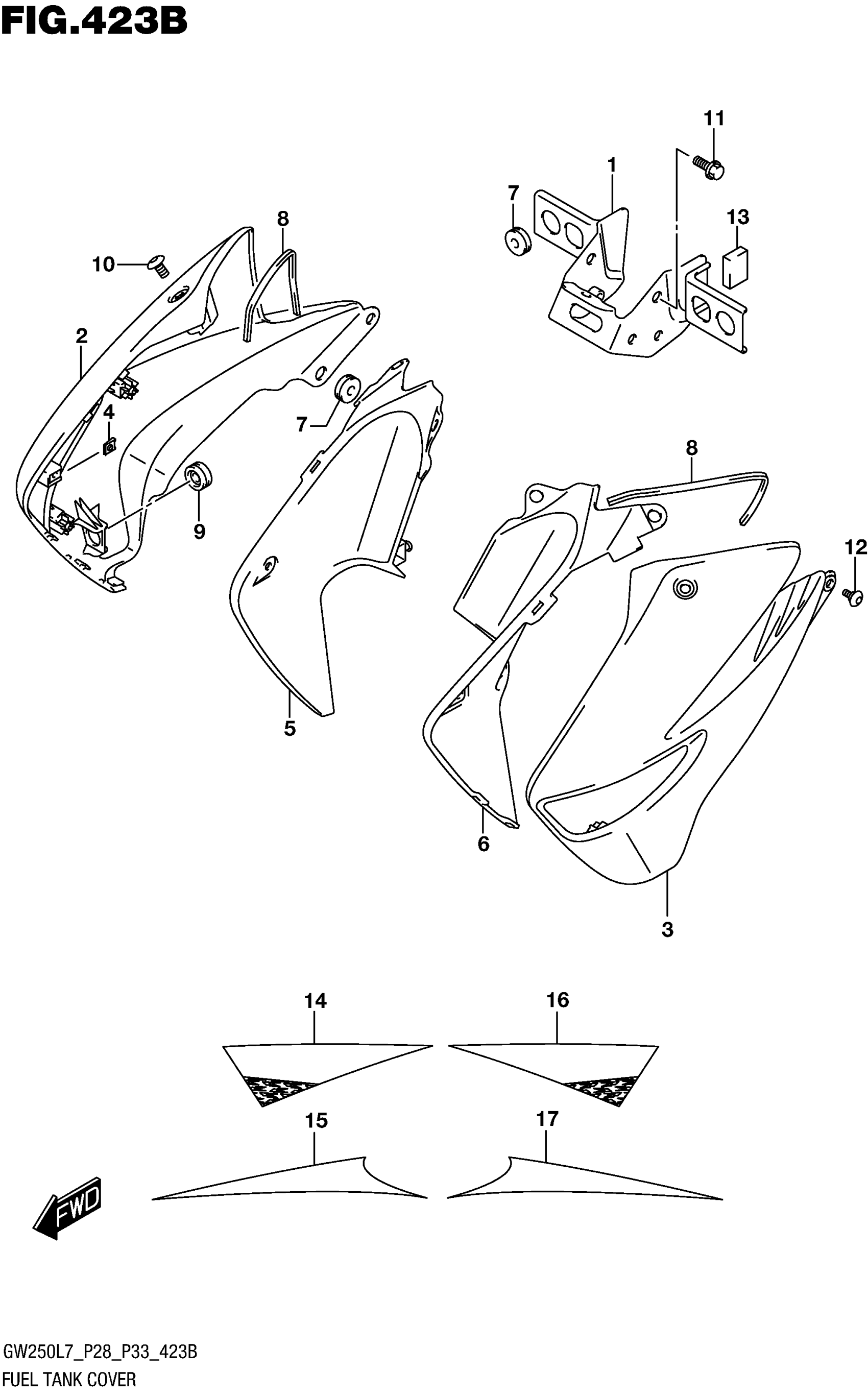

Suzuki GW250L7 (2017) FUEL TANK COVER (GW250ZL7 P28) Diagram

#

Description
Price

1

BRACKET, FRONT SIDE COVER

44150-48H00

Unavailable

2

COVER, FUEL TANK RH

44171-48H00-AGQ

Unavailable

2

(BLUE/WHITE)

44171-48H00-AGQ

Unavailable

3

COVER, FUEL TANK LH

44181-48H00-AGQ

Unavailable

3

(BLUE/WHITE)

44181-48H00-AGQ

Unavailable

4

NUT, FUEL TANK COVER

44261-48H00

Unavailable

5

COVER, FUEL TANK FRONT RH

44271-48H00

$19.50

6

COVER, FUEL TANK FR LH

44281-48H00

$19.50

7

CUSHION, FUEL TANK COVER

44274-48H00

$3.15

8

CUSHION, FUEL TANK COVER SIDE

44278-48H00

Unavailable

9

CUSHION, FUEL TANK COVER

44279-48H00

$2.93

10

SCREW (6X10)

09139-06172

$3.04

11

BOLT

01550-0616B

$2.48

12

SCREW (6X12)

44514-48H00

$2.60

13

CUSHION, COVER BRACKET

44153-48H00

$2.70

14

TAPE, TANK COVER NO.1 RH

68115-48H00-AGQ

Unavailable

14

(BLUE/WHITE)

68115-48H00-AGQ

Unavailable

15

TAPE, TANK COVER NO.2 RH

68116-48H00-AGQ

Unavailable

15

(BLUE/WHITE)

68116-48H00-AGQ

Unavailable

16

TAPE, TANK COVER NO.1 LH

68125-48H00-AGQ

Unavailable

16

(BLUE/WHITE)

68125-48H00-AGQ

Unavailable

17

TAPE, TANK COVER NO.2 LH

68126-48H00-AGQ

Unavailable

17

(BLUE/WHITE)

68126-48H00-AGQ

Unavailable

18

COLOR :

SPECIAL NOTE

Unavailable

18

AGQ=YSF(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable
