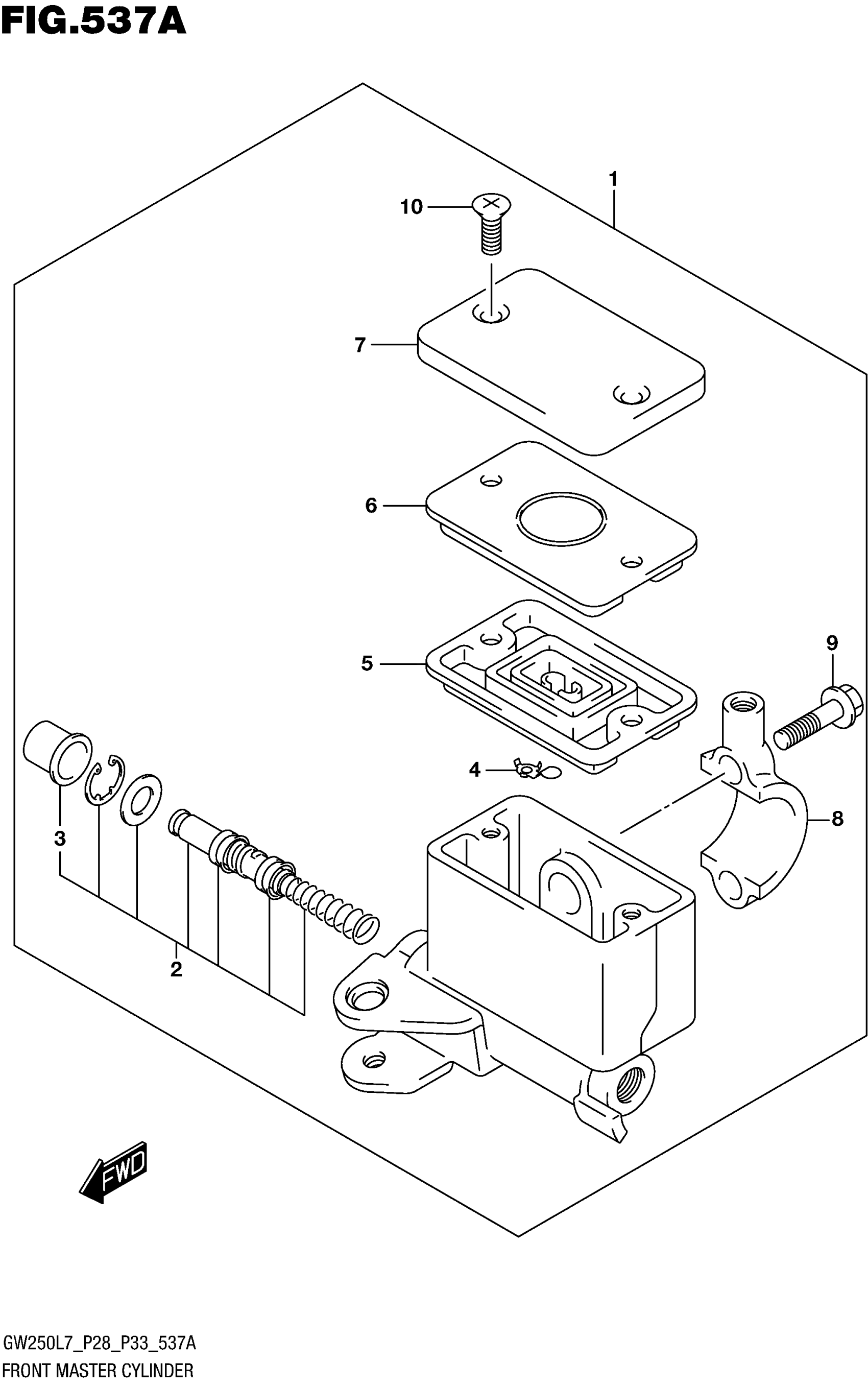

Suzuki GW250L7 (2017) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-48H21

$259.73

2

.PISTON & CUP SET

59600-03820

$55.78

3

..BOOT

59666-44300

$5.30

4

.PROTECTOR

59664-32F00

$13.20

5

.DIAPHRAGM

59667-49460

$8.95

6

.PLATE, DIAPHRAGM

59668-41C00

$8.54

7

.CAP

59669-10G00

$43.22

8

.HOLDER

59671-32F00

$17.87

9

.BOLT

59675-02FA0

$3.49

10

.SCREW

69689-49300

$1.81
