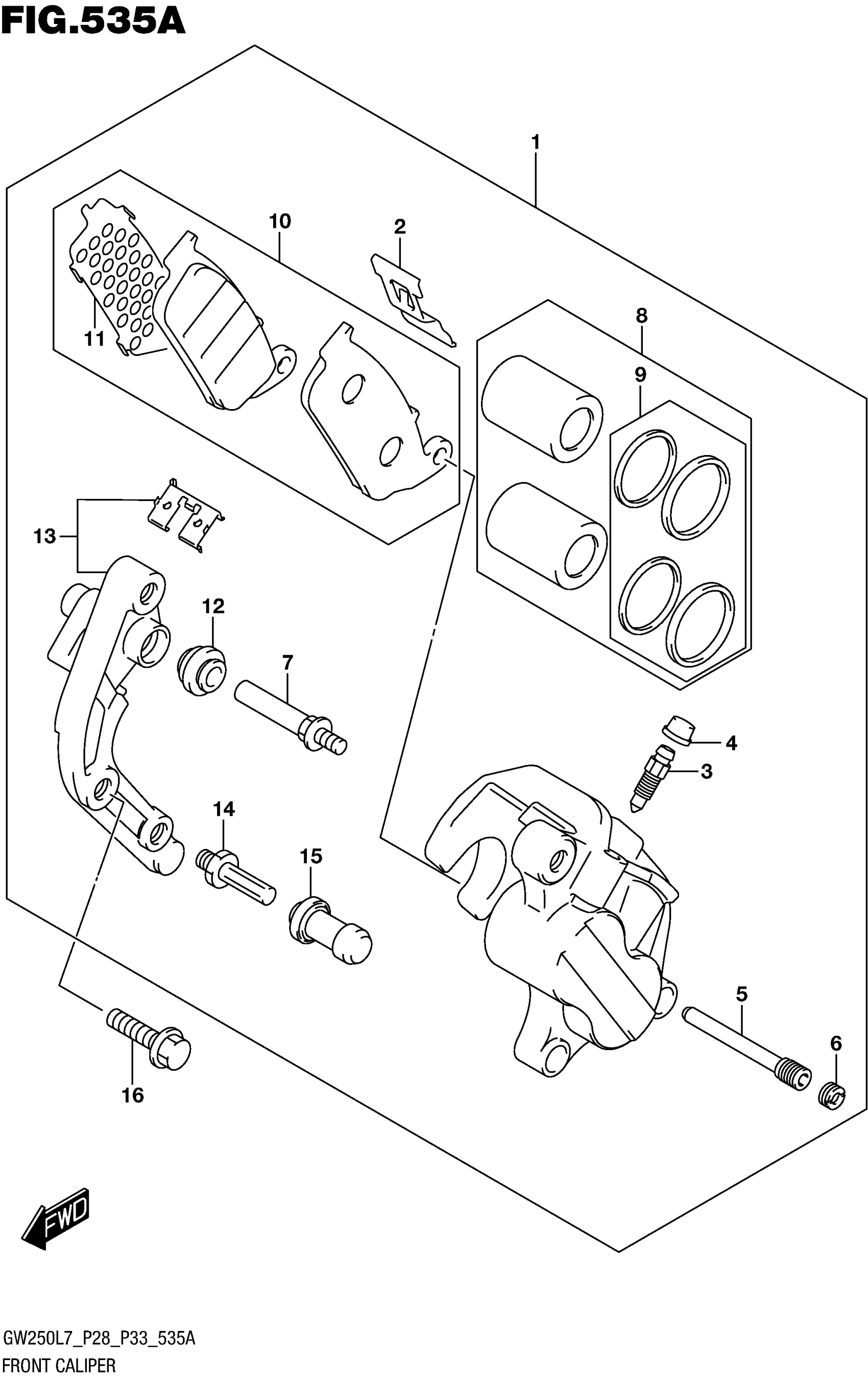

Suzuki GW250L7 (2017) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT LH

59300-48H11

Unavailable

2

.SPRING, PAD

59115-21E10

$16.60

3

.BLEEDER

59121-01A00

$7.99

4

.CAP, BLEEDER

59122-46H00

$4.17

5

.PIN, HANGER

59145-21E10

$17.26

6

.PLUG, PIN

59146-21E10

$5.62

7

.PIN

59187-21E10

$30.18

8

.PISTON SET

59300-48820

$122.28

9

..SEAL SET, PISTON

59300-13820

$21.18

10

.PAD SIM SET This part replaces 59301-48811.

59300-48830

$77.28

11

..SHIM

59113-48H00

Unavailable

12

.BOOT

59303-14500

$5.06

13

.BRACKET

59350-48H00

$60.68

14

.PIN

59382-14500

$8.43

15

.BOOT

59386-13A00

$7.28

16

BOLT

01550-0830A

$2.80
