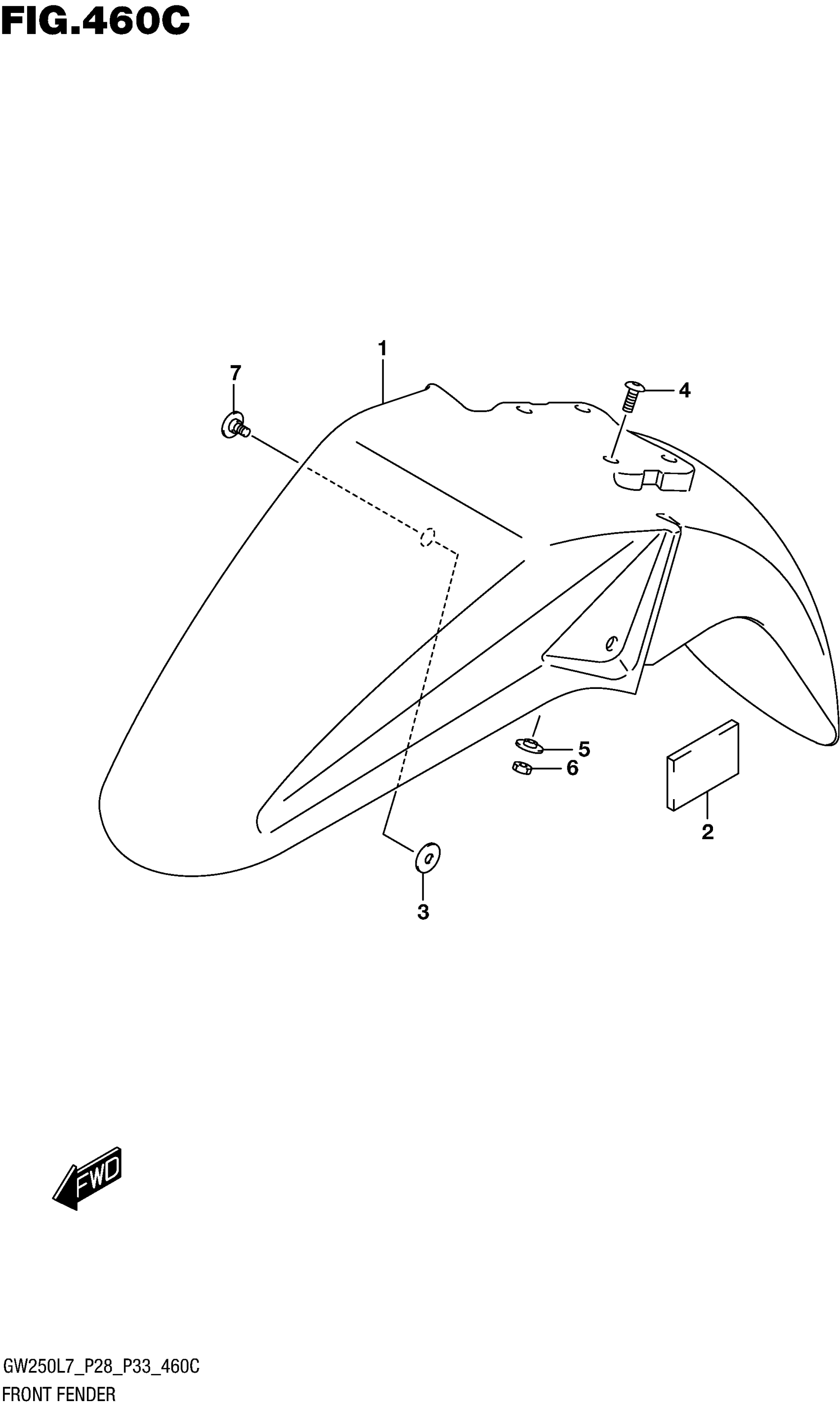

Suzuki GW250L7 (2017) FRONT FENDER (GW250L7 P33) Diagram

#

Description

Price

1

FENDER, FRONT (BLACK)

53111-48H00-AQ8

$279.23

2

CUSHION, FRONT FENDER

53145-48H00

$4.45

3

WASHER, PLANE

53276-48H00

Unavailable

4

SCREW (6X16)

09139-06030

$3.70

5

WASHER This part replaces 09169-06031.

09169-06041

$2.20

6

NUT

08319-2106A

$1.91

7

SCREW,FR FENDER FR

53135-48H00

$4.03
