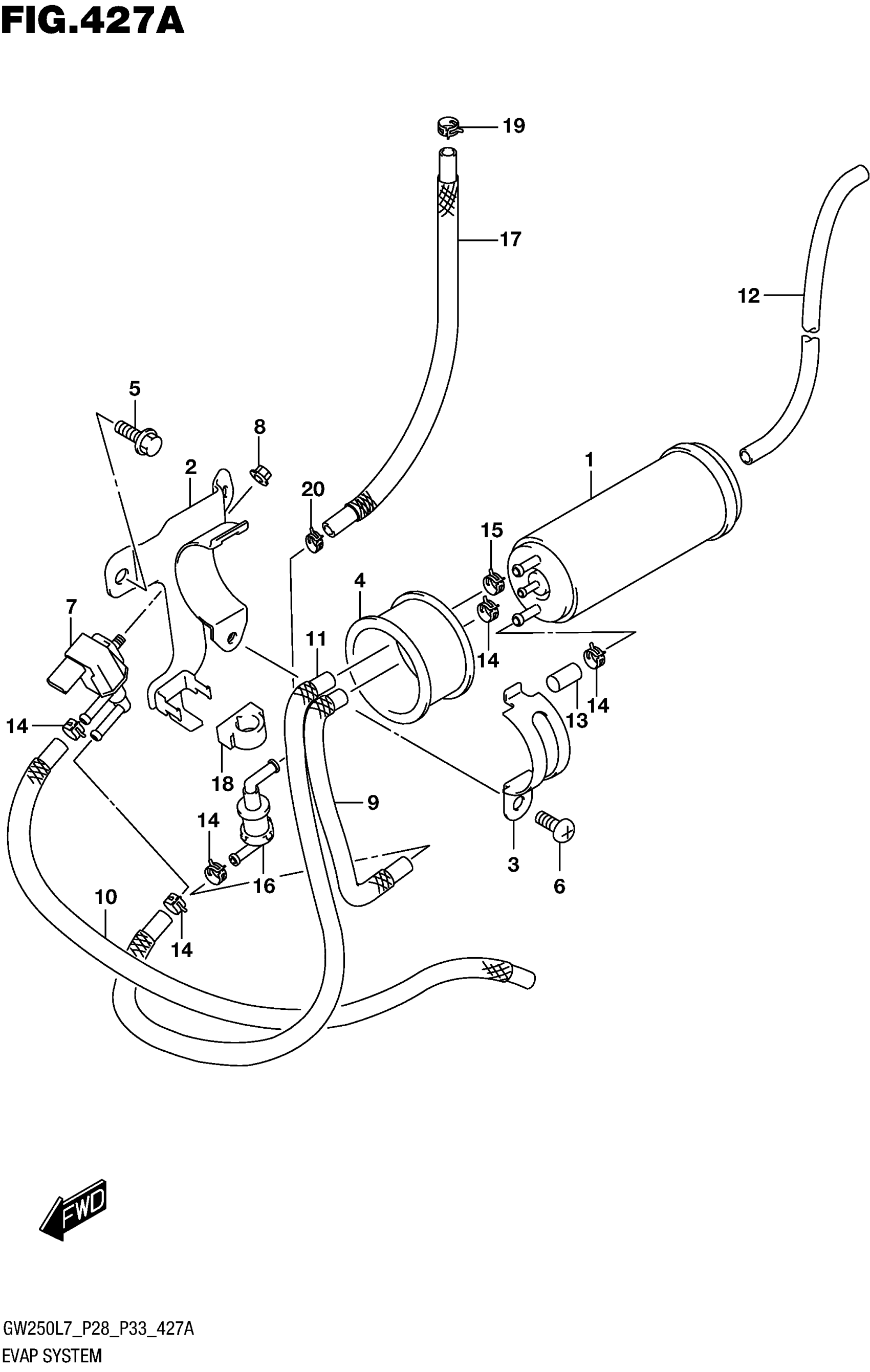

Suzuki GW250L7 (2017) EVAP SYSTEM Diagram

#

Description
Price

1

CANISTER ASSY, CHARCOAL

18560-48H10

Unavailable

2

BRACKET,CANISTER

18570-48H00

Unavailable

3

HOLDER,CANISTER

18578-48H00

Unavailable

4

CUSHION CANISTER

44883-26E00

Unavailable

5

BOLT

01547-0616A

$2.03

6

SCREW

02142-0610A

$1.49

7

VALVE,CANISTER PURGE

18117-52G10

$151.17

8

NUT

08316-1006A

$2.19

9

HOSE, CANISTER INLET

18561-48H10

Unavailable

10

HOSE, PURGE VALVE

18563-48H10

Unavailable

11

HOSE, CANISTER PURGE

18562-48H10

Unavailable

12

HOSE, CANISTER AIR

18567-48H01

Unavailable

13

CAP

09251-07L01

$2.70

14

CLIP

09401-10L01

Unavailable

15

CLIP

09401-12L04

Unavailable

16

VALVE,FUEL TANK BREATHER

44240-13H00

$41.12

17

HOSE, TANK & BRTHR VALVE

44434-48H10

Unavailable

18

CUSHION, FUEL TANK BRTHR VALV

44894-48H00

Unavailable

19

CLIP

09401-10L01

Unavailable

20

CLIP

09401-10L01

Unavailable
