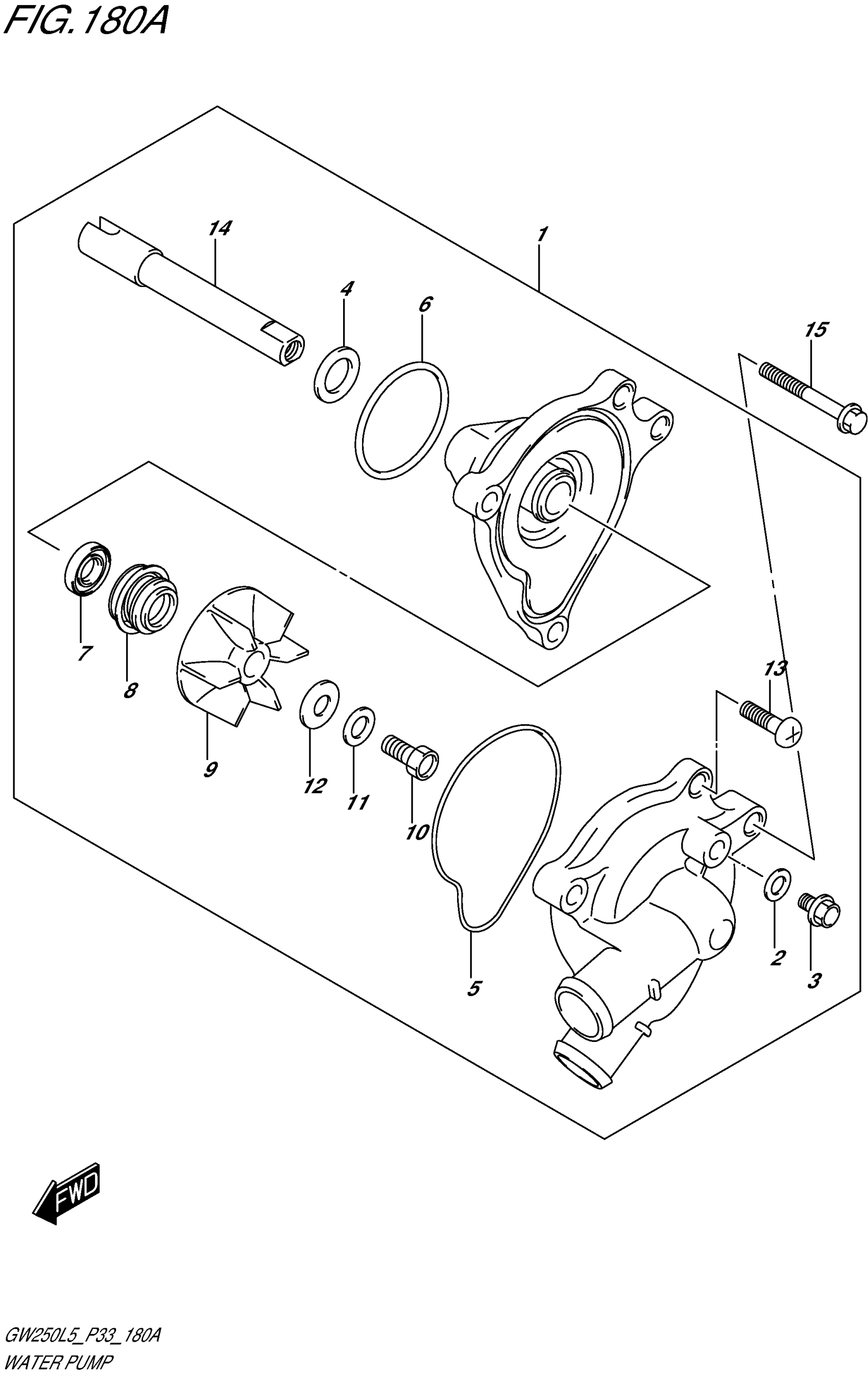

Suzuki GW250L5 (2015) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-48H00.

17400-48H01

$239.23

2

GASKET

17413-28C10

$2.14

3

BOLT, BLEEDER

17415-43D00

$4.35

4

WASHER

17432-07G00

$2.60

5

O RING, WATER PUMP CASE

17435-12C00

$6.68

6

.O-RING

17435-33400

$15.29

7

OIL SEAL

17461-01H00

$17.86

8

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

9

IMPELLER, WATER PUMP

17491-12C00

$24.42

10

BOLT (6X13)

09100-06099

$2.00

11

WASHER

09164-06006

$2.61

12

GASKET (6X15X2.2)

09168-06025

$2.92

13

SCREW

02112-0616A

$1.49

14

SHAFT

17511-48H00

Unavailable

15

BOLT

01547-0635A

$2.30
