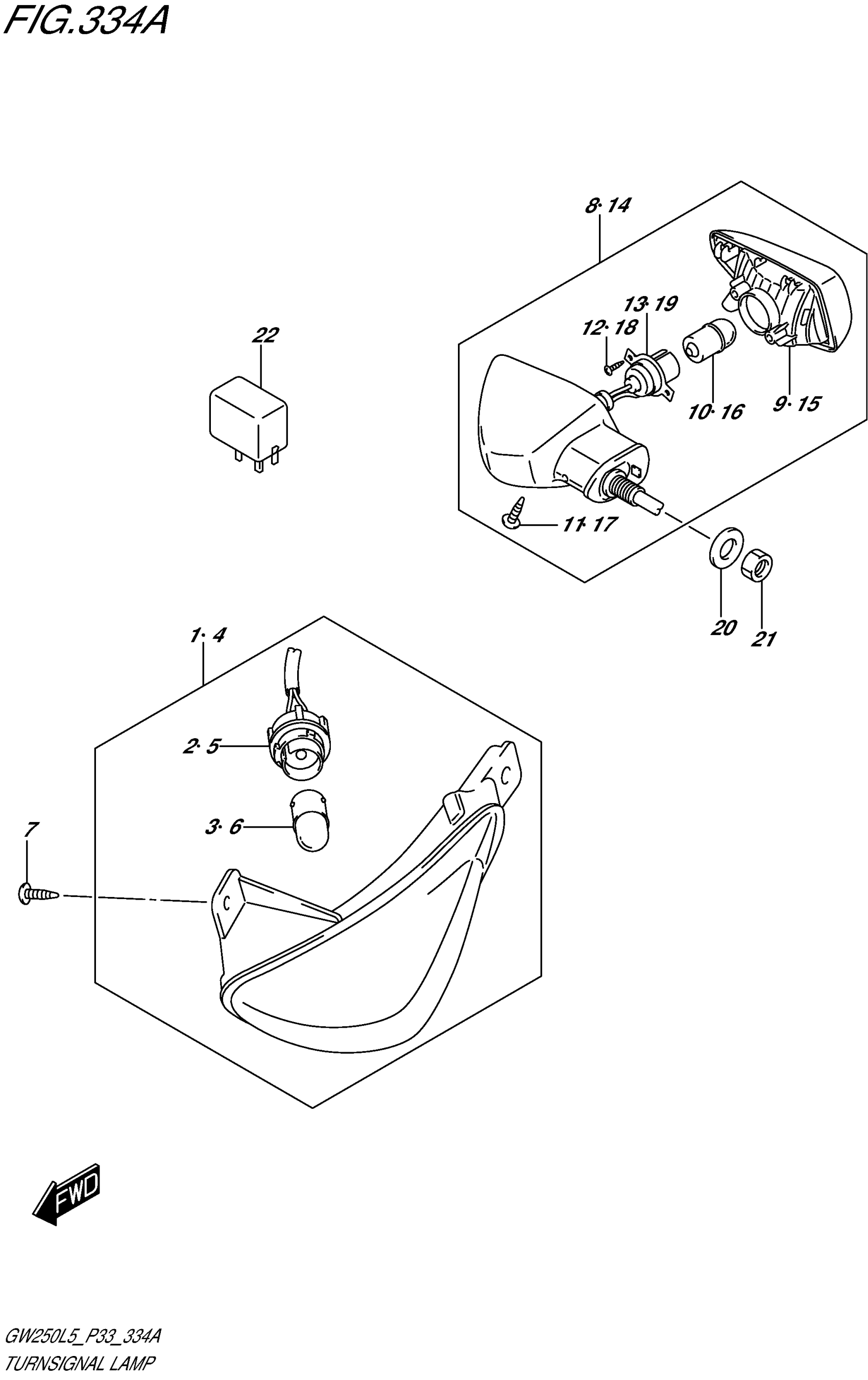

Suzuki GW250L5 (2015) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-48H30

$118.13

2

CORD

35618-48H00

$13.42

3

BULB (12V,10W)

09471-12226

$6.33

4

LAMP ASSY, FRONT TURNSIGNAL LH

35602-48H30

$118.13

5

CORD

35638-48H00

Unavailable

6

BULB (12V,10W)

09471-12226

$6.33

7

SCREW

03541-0516A

$1.49

8

LAMP ASSY, REAR TURNSIGNAL RH

35603-48H03

$55.88

9

LAMP UNIT RH

35650-48H01

$32.97

10

BULB (12V,10W)

09471-12226

$6.33

11

SCREW

03241-0412A

Unavailable

12

SCREW

35623-48H00

$2.70

13

CORD RH

35658-48H00

Unavailable

14

LAMP ASSY, REAR TURNSIGNAL LH

35604-48H03

$55.88

15

LAMP UNIT LH

35670-48H01

$32.97

16

BULB (12V,10W)

09471-12226

$6.33

17

SCREW

03241-0412A

Unavailable

18

SCREW

35623-48H00

$2.70

19

CORD LH

35678-48H00

Unavailable

20

WASHER, REAR TURNSIGNAL LAMP

35679-48H00

$3.15

21

NUT

08310-0010A

$1.84

22

RELAY ASSY,TURN This part replaces 38610-26H02.

38610-26H03

$21.23
