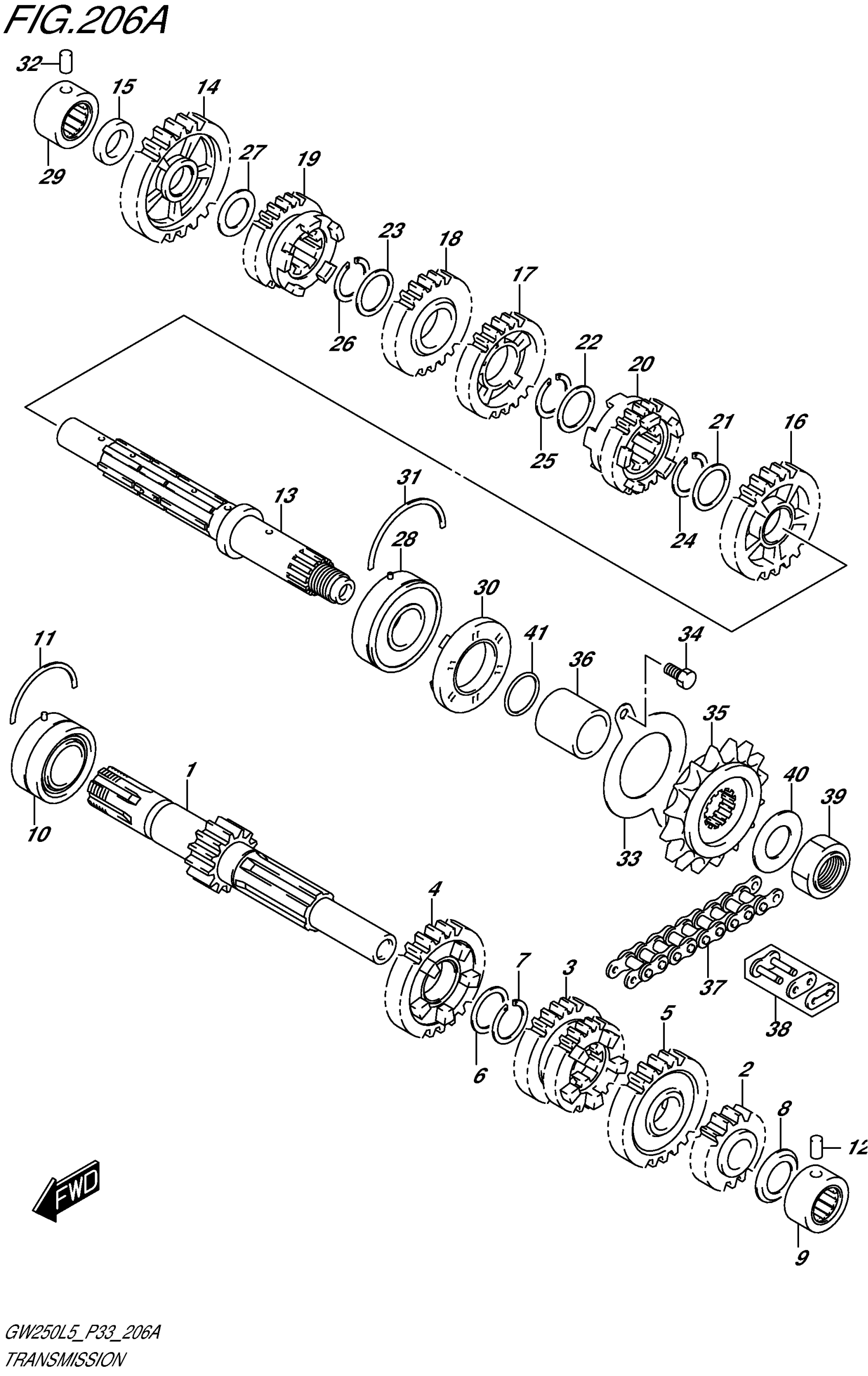

Suzuki GW250L5 (2015) TRANSMISSION Diagram

SHAFT, COUNTER (NT:12)

24120-48H00

Unavailable

GEAR, 2ND DRIVE (NT:17)

24221-48H00

$11.93

GEAR, 3RD & 4TH DRIVE (NT:10/11)

24231-48H00

$29.97

GEAR,5TH DRIVE (NT:22)

24251-48H00

$22.12

GEAR, 6TH DRIVE (NT:26)

24260-48H00

$21.53

SHIM (22X28X1)

09181-22017

$2.38

CIRCLIP

09380-22016

Unavailable

SEAL,COUNTER SHAFT,L BEARING

24271-48H00

$11.10

BEARING (17X30X16)

09263-17050

Unavailable

BEARING (22X47X20.6)

09267-22001

Unavailable

C-RING

09390-47008

$2.15

PIN

04221-06129

$1.72

SHAFT,DRIVE

24130-48H00

$34.97

GEAR,1ST DRIVEN (NT:29)

24310-48H00

$26.30

SPACER,1ST DRIVEN GEAR

24313-48H00

$2.70

GEAR,2ND DRIVEN (NT:26)

24320-48H00

$25.25

GEAR,3RD DRIVEN (NT:26)

24331-48H00

Unavailable

GEAR,4TH DRIVEN (NT:24)

24341-48H00

Unavailable

GEAR,5TH DRIVEN (NT:20)

24351-48H00

$30.22

GEAR,6TH DRIVEN (NT:21)

24361-48H00

$21.93

SHIM (22X28X1)

09181-22017

$2.38

SHIM (22X28X1)

09181-22017

$2.38

SHIM (22X28X1)

09181-22017

$2.38

CIRCLIP

09380-22016

Unavailable

CIRCLIP

09380-22016

Unavailable

CIRCLIP

09380-22016

Unavailable

WASHER (17X26X1) This part replaces 08211-17262.

09181-17167

$2.96

BEARING (22X56X16)

09262-22039

Unavailable

BEARING (17X30X16)

09263-17050

Unavailable

SEAL,OIL (30X56X9.5)

09283-30L01

$8.48

C-RING

09390-56002

$2.30

PIN

04221-06129

$1.72

RETAINER, DRIVE SHAFT OIL SEAL

24741-48H00

$3.97

BOLT

01500-0612A

$1.78

SPROCKET,ENGINE (NT:14) This part replaces 27510-48H10.

27510-48H20

$20.62

SPACER,ENGINE SPROCKET This part replaces 27531-48H00.

27531-48H01

$8.30

CHAIN,DRIVE (RK 520KL02) This part replaces 27600-48H20-116.

27600-48H40-116

$212.58

JOINT SET,CHAIN (RK) | OPT This part replaces 27620-48H20.

27620-48H40

$32.63

NUT,ENGINE SPROCKET

27521-48H00

$6.35

WASHER,ENGINE SPROCKET

27513-48H00

$2.22

O RING (D:2.5,ID:21)

09280-21008

$1.91
