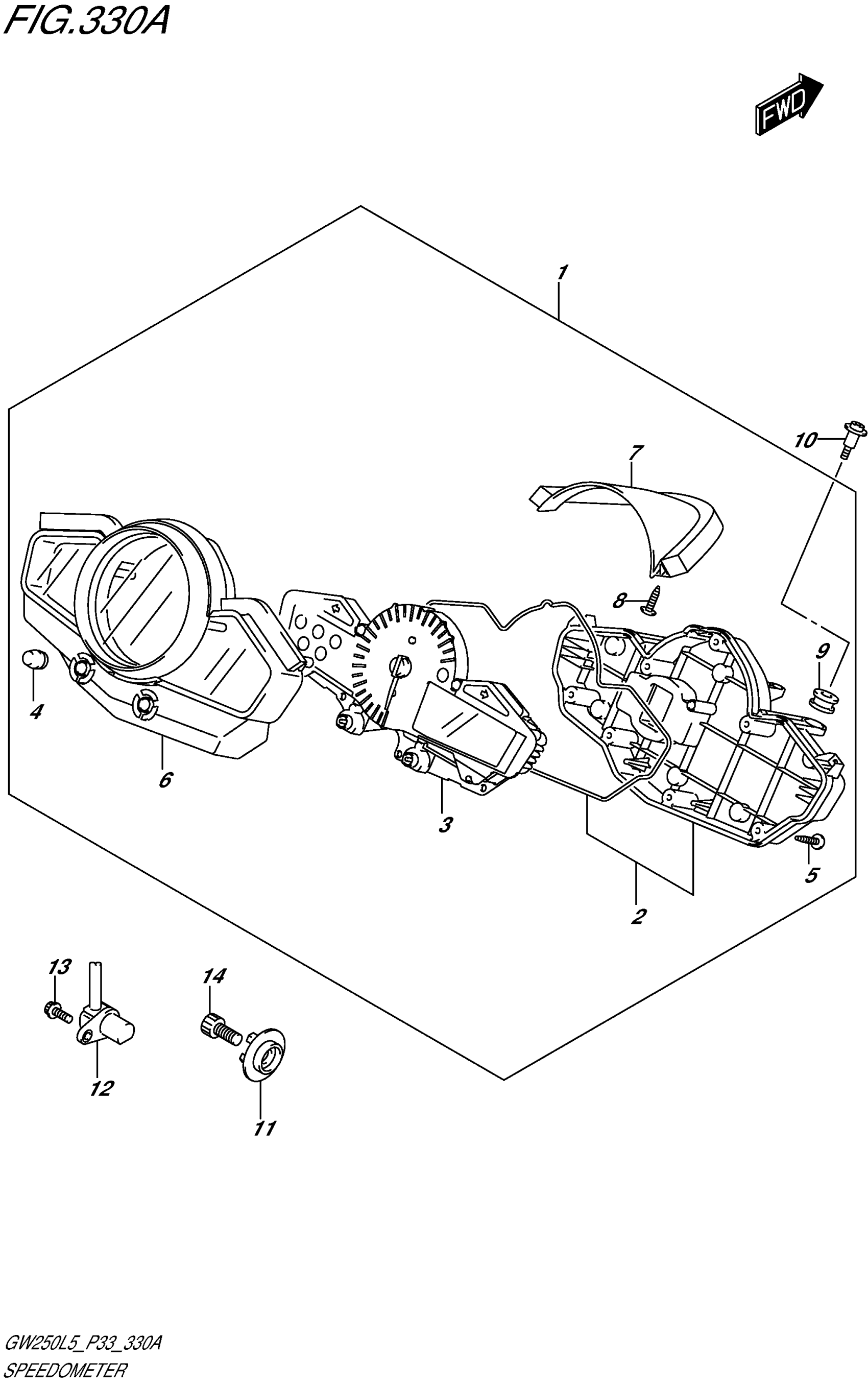

Suzuki GW250L5 (2015) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

34100-48HB2

Unavailable

2

LOWER CASE

34111-48H00

$53.43

3

COMBINATION METER

34120-48HB2

$635.37

4

RUBBER

34124-48H00

Unavailable

5

SCREW (3X14)

34149-03G00

$3.71

6

UPPER CASE

34150-48H00

Unavailable

7

COVER

34152-48H00

$66.53

8

SCREW

34184-12B00

$2.45

9

CUSHION, METER

34955-33E00

$3.56

10

SCREW, SPEEDOMETER

34149-18G00

$2.53

11

ROTOR, SPEED

34981-26H00

$16.03

12

SENSOR, SPEED

34990-30H00

Unavailable

13

BOLT

07120-0512B

$2.61

14

BOLT

07130-0816B

$4.25
