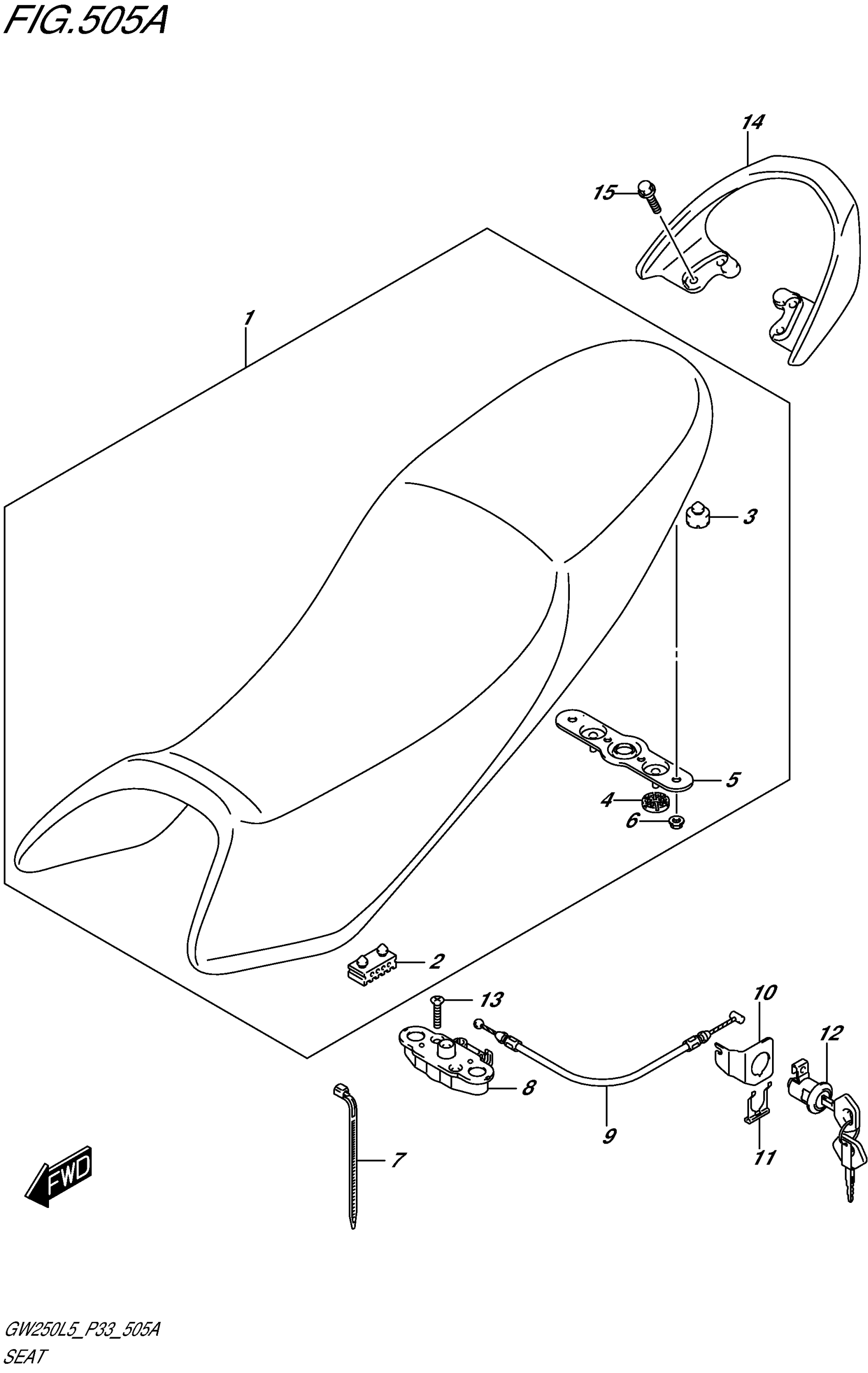

Suzuki GW250L5 (2015) SEAT (GW250L5 P33) Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-48H00-PEH.

45100-48H01-PEH

$204.93

2

CUSHION, SEAT MOUNT

45147-12FB0

Unavailable

3

CUSHION, SEAT MOUNT

45148-20G50

$2.93

4

CUSHION, SEAT LOCK STRIKER

45213-13601

$2.79

5

STRIKER, SEAT LOCK

45290-28D00

Unavailable

6

NUT

08316-1006B

$2.50

7

CLAMP, SEAT LOCK CABLE

36990-32G10

$2.45

8

BRACKET, SEAT SUPPORT

45220-45F10

Unavailable

9

CABLE, SEAT LOCK This part replaces 45280-48H00.

45280-48HB0

$29.47

10

GUIDE, SEAT LOCK CABLE

45288-09GB0

Unavailable

11

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

12

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$107.30

13

SCREW

02122-0630B

$2.06

14

HANDLE, PILLION RIDER (SILVER)

46211-48H01-YLN

$201.58

15

BOLT

01550-0825A

$2.32
