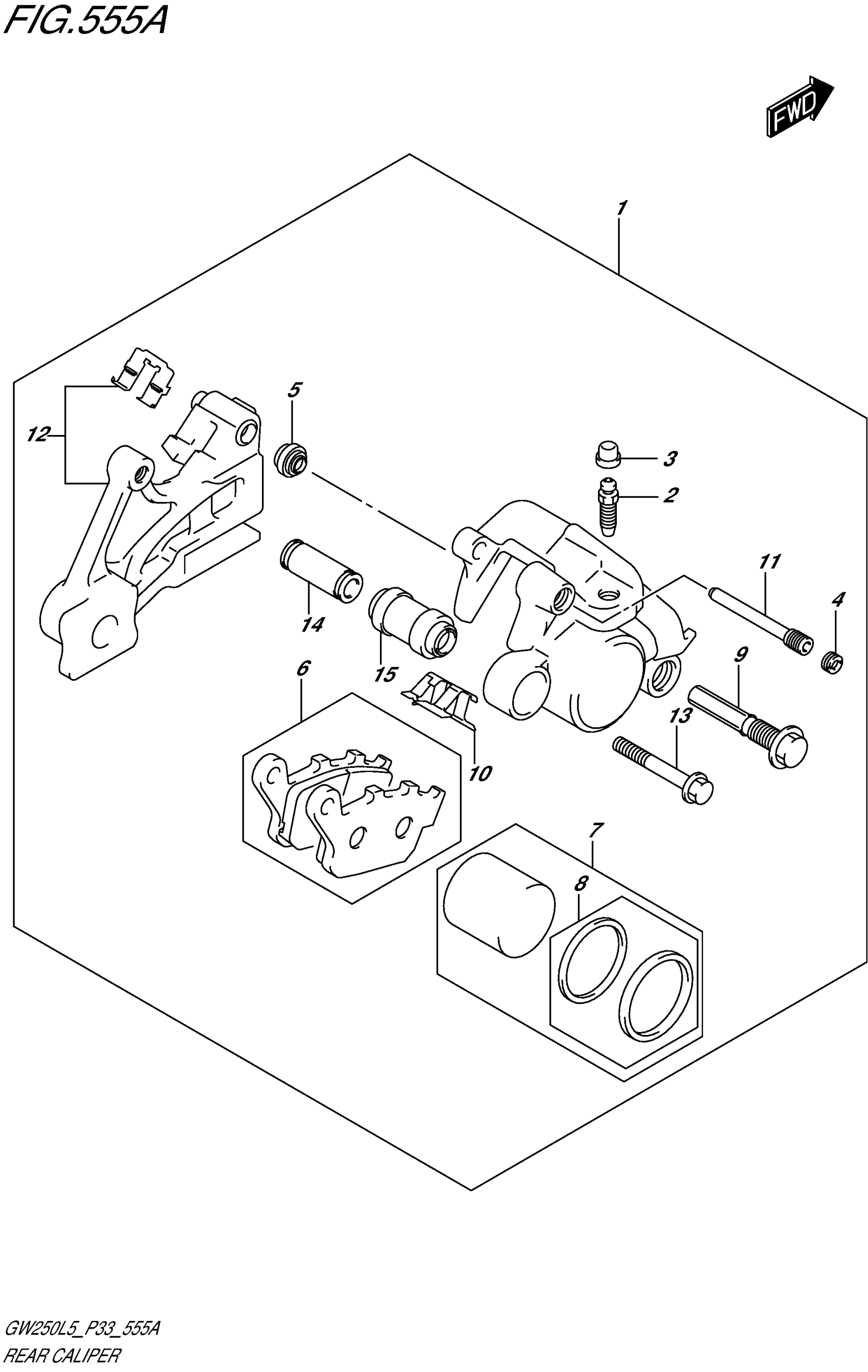

Suzuki GW250L5 (2015) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-48H01

Unavailable

2

BLEEDER

59121-01A00

$8.35

3

CAP, BLEEDER

59122-46H00

$4.36

4

PLUG, PIN

59146-21E10

$5.88

5

BOOT

59303-14500

$5.29

6

PAD SET

69100-48820

$98.42

7

PISTON SET

69101-44860

$68.15

8

..SEAL SET,PISTON

69100-04820

$8.64

9

BOLT

69105-04F00

$13.86

10

.SPRING,PAD

69115-06G00

$13.29

11

PIN, PAD

69141-40F00

$29.01

12

BRACKET

69150-48H00

Unavailable

13

BOLT

69182-04F00

$8.93

14

SLEEVE

69185-04F00

$20.88

15

.BOOT,SLEEVE

69186-04F00

$13.01
