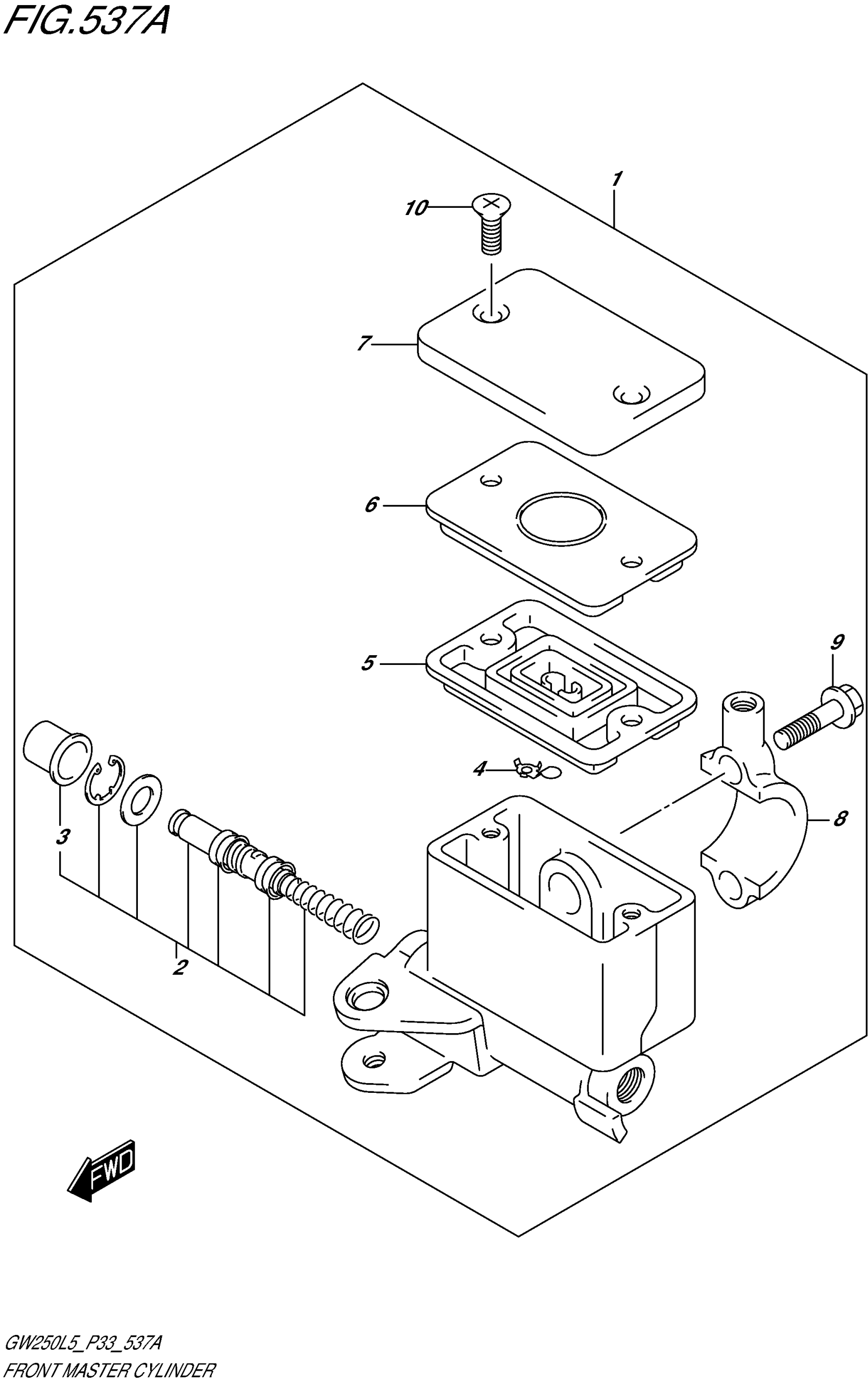

Suzuki GW250L5 (2015) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-48H21

$259.73

2

PISTON & CUP SET

59600-03820

$55.78

3

BOOT

59666-44300

$5.54

4

PROTECTOR

59664-32F00

$13.20

5

DIAPHRAGM

59667-49460

$9.36

6

PLATE, DIAPHRAGM

59668-41C00

$8.92

7

CAP

59669-10G00

$43.22

8

HOLDER

59671-32F00

$18.68

9

BOLT

59675-02FA0

$3.66

10

SCREW

69689-49300

$1.81
