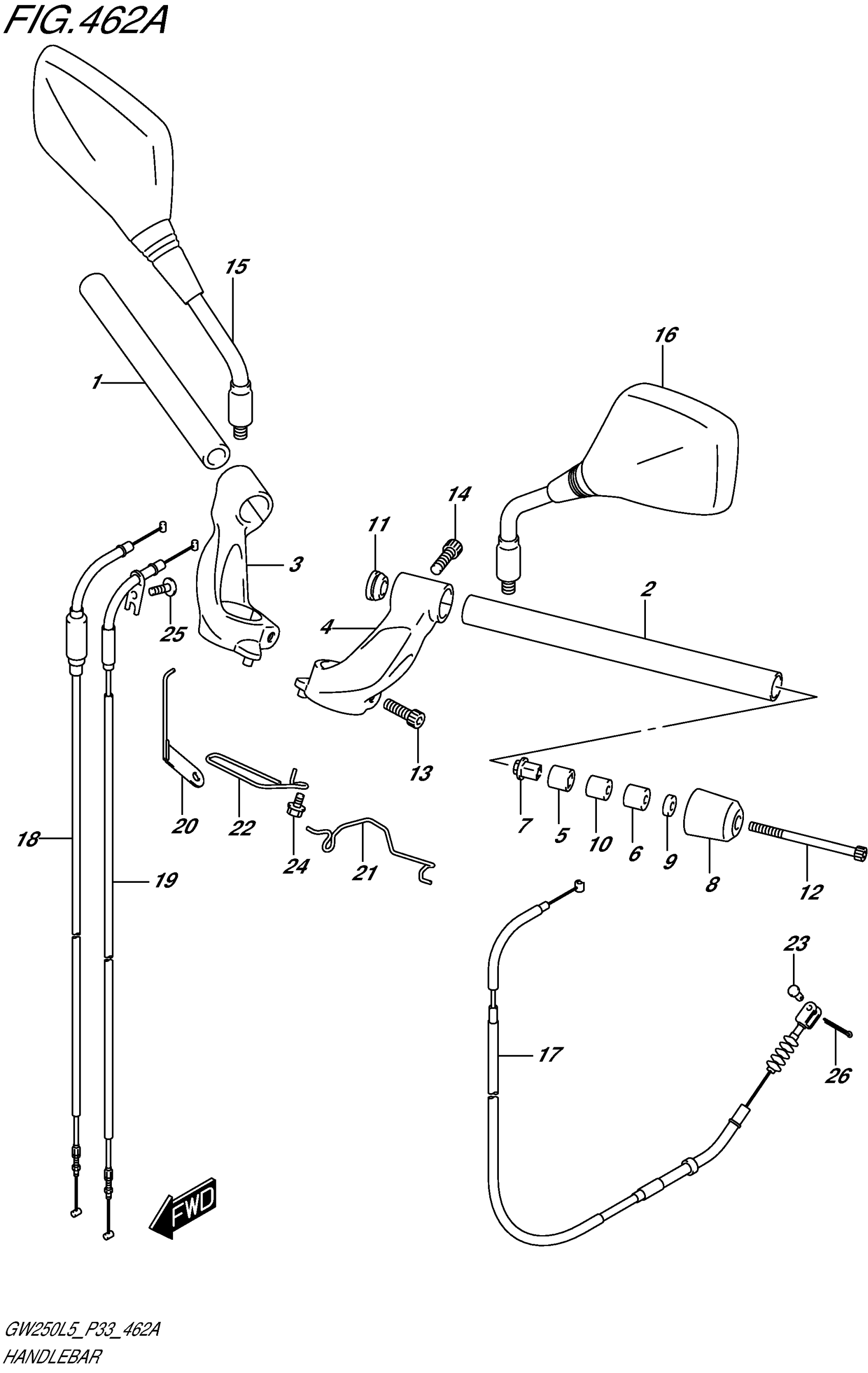

Suzuki GW250L5 (2015) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR RH This part replaces 56111-48H00.

56111-48H02

$41.38

2

HANDLEBAR LH This part replaces 56151-48H00.

56151-48H02

$40.15

3

HOLDER, HANDLEBAR RH

56211-48H00

$123.98

4

HOLDER, HANDLEBAR LH This part replaces 56221-48H00.

56221-48H20

$100.53

5

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

6

.EXPANDER,HANDLE BALANCER

56272-42F00

$5.45

7

NUT, HANDLE BALANCER

56273-10G10

$8.65

8

BALANCER, HANDLEBAR

56278-48H00

$12.37

9

WASHER (6.5X16X4)

09160-06131

$2.50

10

.SPACER (6.5X16X15)

09180-06161

$6.53

11

CAP, HANDLEBAR

09250-18005

Unavailable

12

BOLT

07130-0680B

$4.68

13

BOLT

07130-0825A

$3.04

14

BOLT

07130-0830A

$1.74

15

MIRROR ASSY,RR This part replaces 56500-48H10.

56500-48H11

$80.57

16

MIRROR ASSY,RR This part replaces 56600-48H10.

56600-48H11

$80.57

17

CABLE ASSY, CLUTCH This part replaces 58200-48H21.

58200-48HC0

$64.20

18

CABLE ASSY, THROTTLE NO.1 This part replaces 58300-48H60.

58300-48HE0

$58.83

19

CABLE ASSY, THROTTLE NO.2 This part replaces 58300-48H70.

58300-48HF0

$58.83

20

GUIDE, GUIDE

58620-48H31

Unavailable

21

GUIDE, CLUTCH CABLE

58621-48H01

Unavailable

22

GUIDE, CABLE

58621-48H10

$3.88

23

PIN

09200-06071

$1.90

24

BOLT

01550-0612B

$2.39

25

SCREW

02142-0510B

$1.78

26

COTTER PIN

04111-2015A

$1.49
