GEAR SHIFTING
2015 Suzuki GW250L5 Gear Shifting Diagram

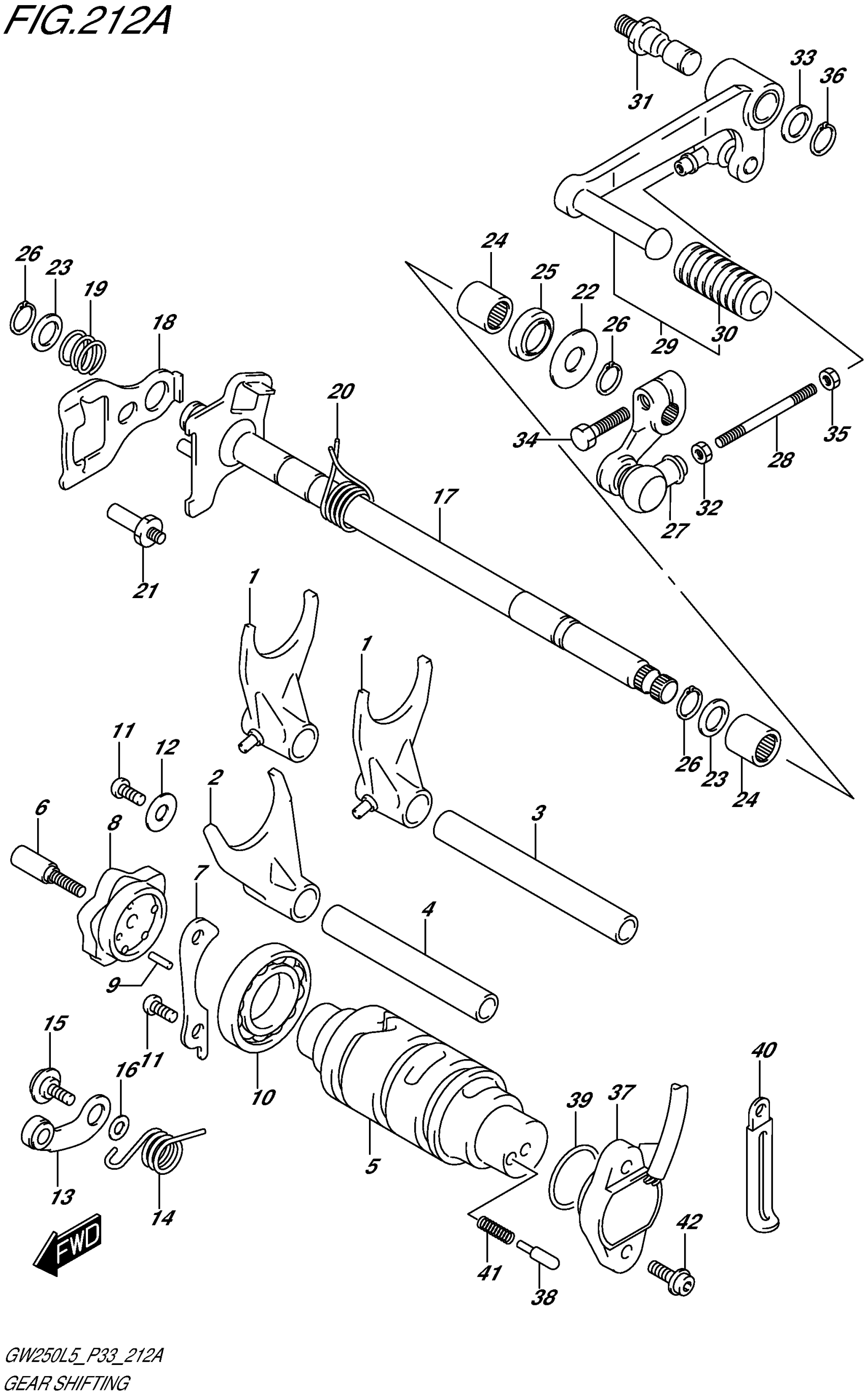

Find the part on the Gear Shifting diagram for your 2015 Suzuki GW250L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FORK,GEAR SHIFT NO.1
25211-48H00
6
STOPPER, SHIFT CAM DRIVE PLATE
25312-48H00
9
PIN (3X9.8)
09261-03002
11
SCREW
02112-0612A
12
WASHER
08211-06183
17
SHAFT,GEAR SHIFT
25510-48H00
20
SPRING,SHIFT SHAFT RETURN
25518-48H00
21
STOPPER,GEAR SHIFT ARM
25671-16H10
22
WASHER (14X29X0.8)
09160-14069
23
WASHER (14X22X1)
09160-14070
26
CIRCLIP
08331-3114A
28
ROD, GEAR SHIFT LINK
25525-48H00
33
WASHER (12.5X20X1)
09160-12011
34
BOLT
01500-0620A
35
NUT
08310-0006A
36
CIRCLIP
08331-3112A
38
PIN
09209-05024
41
SPRING
09440-04010
